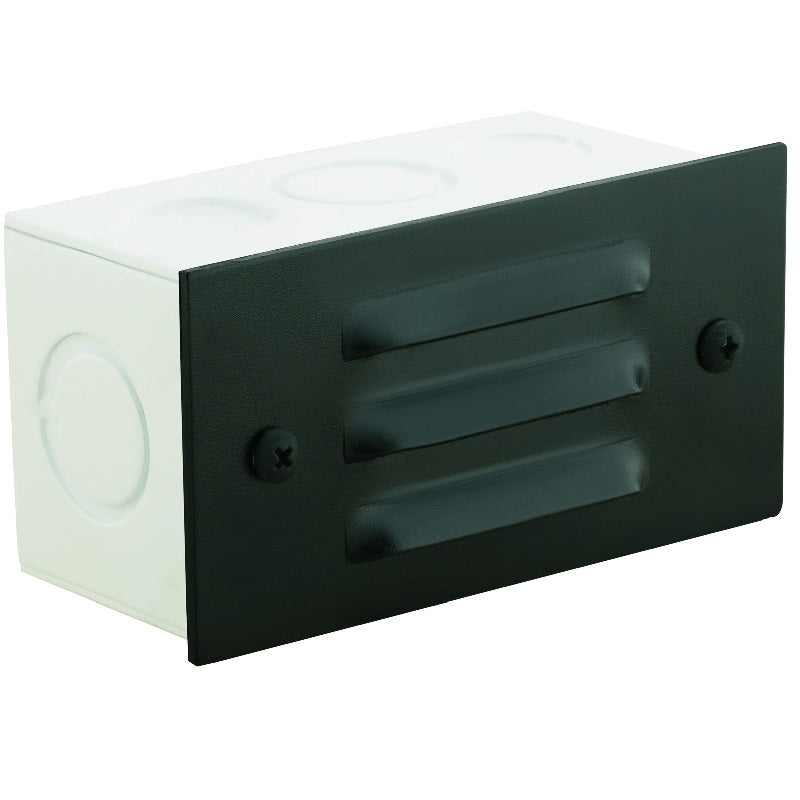

Aluminum 3 Louvered Boxed Step Light | 12V SCB | Multiple Finishes
| SKU(s) | CL-361-BK |
| Color | Black | Rust | White | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze, Rust & White |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 4-3/8" |
| Height | 2-1/4" |
| LED Life | 25.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Aluminum 3 Louvered Boxed Step Light is designed for reliable step and pathway illumination in residential and commercial outdoor applications. Crafted with a durable aluminum faceplate and a white powder-coated steel recessed mount box, this step light offers long-lasting performance in Black, Bronze, Rust, and White finishes to match diverse architectural styles.
The fixture features a 3-louver design for controlled light distribution and reduced glare. A high-impact white polycarbonate lens is securely sealed to the faceplate, protecting the lamp while diffusing light evenly. Equipped with a top-grade fixed S.C. Bayonet socket, the light supports a 12V SCB lamp (27W max, halogen or LED equivalent – lamp not included).
Each unit comes prewired with a 12-inch direct burial cord for ease of installation. Optional CX-839 universal connectors or CX-854 silicone-filled wire nuts are available for secure wiring. Designed for recessed surface mounting, the housing includes three ½" NPT inlets for conduit entry, making it ideal for use in concrete, brick, or other masonry surfaces.
This step light operates within a 9–17V range with LED lamps and requires a remote 12V magnetic transformer (sold separately). Backed by a 5-year warranty on the fixture housing, it’s a dependable solution for architectural outdoor lighting.
Key Features:
3-louver aluminum step light for architectural outdoor use
Available finishes: Black, Bronze, Rust, White
High-impact white polycarbonate lens for durability and light diffusion
Top-grade S.C. Bayonet socket – supports 12V SCB lamps (27W max, not included)
Prewired with 12-inch direct burial cord for easy setup
Recessed mount back box with 3x ½" NPT inlets
Best suited for brick, concrete, or masonry surfaces
Operates in a 9–17V range with LED lamps
Requires remote 12V magnetic transformer (sold separately)
5-year warranty on housing against manufacturer defects
$203.45 /each
| SKU(s) | CL-653-BT-AB-12 |
| Color | Antique Bronze | Gun Metal |
| Size | 12" | 18" |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 6" |
| Length | 6" |
| Height | 16-5/8" / 22-5/8" |
| Diameter | 6" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$99.00 /each
| SKU(s) | CL-390C-RC |
| Color | Raw Copper |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Raw Copper |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-1/8" |
| Length | 2-1/8" |
| Height | 4-5/8" |
| Diameter | 2-1/8" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
