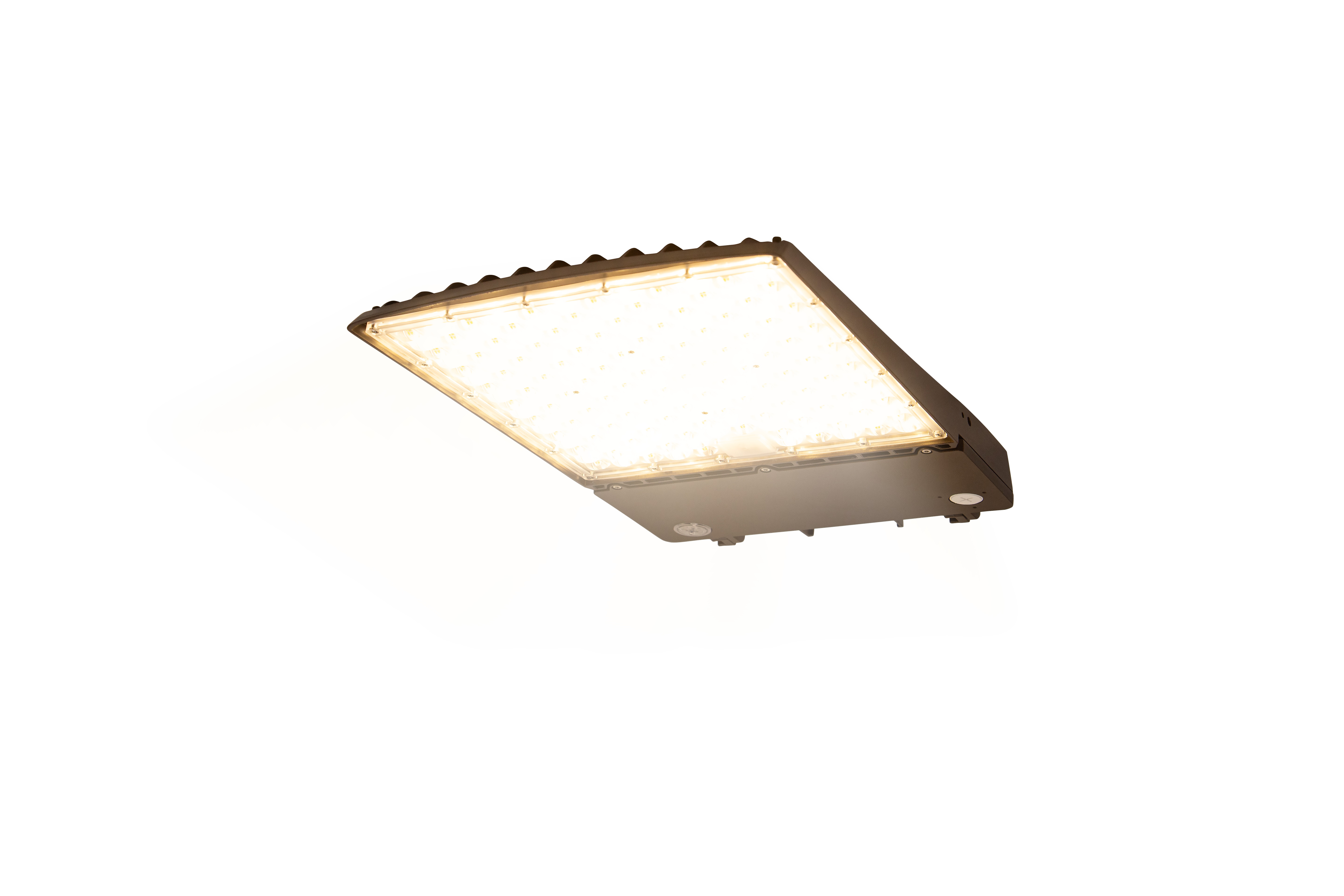

Multi-Purpose LED Area Light Sensor Ready | 40K Lm Max | CCT Selectable | 120/277V | MPALSR-403224L-3CCT

The Multi-Purpose High-Lumen LED Area Light – Sensor Ready with Lumen & CCT Selectability is engineered for large-scale outdoor lighting applications requiring powerful illumination, durability, and control flexibility. Offering field-selectable lumen output from 24,000 to 40,000 lumens, this fixture allows installers to precisely match light levels to site requirements while minimizing inventory complexity.

Available with Type III or Type V IES roadway distributions, this area light is ideal for parking lots, roadways, campuses, sports perimeters, industrial yards, and large commercial properties. The selectable CCT feature enables users to choose 3000K, 4000K, or 5000K, optimizing visibility, safety, and compliance with local lighting ordinances.

Built with a premium die-cast aluminum housing and a durable bronze powder-coat finish, the fixture is designed to perform in extreme outdoor environments. A polycarbonate lens, combined with IP65 ingress protection and an IK08 impact rating, ensures long-term reliability in wet, dusty, and high-impact conditions.

This high-output area light is sensor ready, supporting advanced energy-saving controls such as photocells and occupancy sensors (sold separately), and includes standard 0–10V dimming for seamless integration with lighting control systems. Long-life LED technology delivers up to 167,000 hours (L70), significantly reducing maintenance and operating costs.

With multiple mounting options, universal voltage compatibility, and DLC Premium certification, this fixture is a future-ready solution for high-performance outdoor lighting projects.

Technical Specifications

Housing

• Premium powder-coated die-cast aluminum

• Finish: Bronze

Electrical

• Operating Temperature: -40°C to 50°C (-40°F to 122°F)

• Input Voltage:

  • Universal 120–277V AC

  • Universal 277–480V AC

• Frequency: 50/60Hz

• Power Connection: 6-ft incoming power cord

• Dimming: Standard 0–10V DC

• Surge Protection: 6kV

• Power Factor: > 0.9

• THD: < 20%

• Watertight compression-type electrical connectors

Optical System

• Polycarbonate lens

• Selectable CCT: 3000K / 4000K / 5000K

• Selectable Lumen Output:

  • 23,377 to 41,366 nominal lumens

• Distribution Types: IES Type III & Type V

• CRI: > 70

• Chromaticity: < 6-step ANSI quadrangles

• Color Maintenance: Δu’v’ < 0.0019 (first 6,000 hours)

• LED Lifetime:

  • 167,000 hours @ L70

  • 51,000 hours @ L90

• Sensor Ready: Screw-in sensor port (sensor & remote sold separately)

Mounting Options (Sold Separately)

• Universal Mount (Arm + Slip-fitter)

• Adjustable Arm Mount

• Slip-fitter Mount

• Yoke Mount

• Trunnion Mount

• Pole tenons and tenon adapters available

Certifications & Compliance

• cULus Listed for Wet Locations

• DLC Premium Listed

• FCC Part 15, Class A compliant

• IP65 ingress protection

• IK08 impact rating
