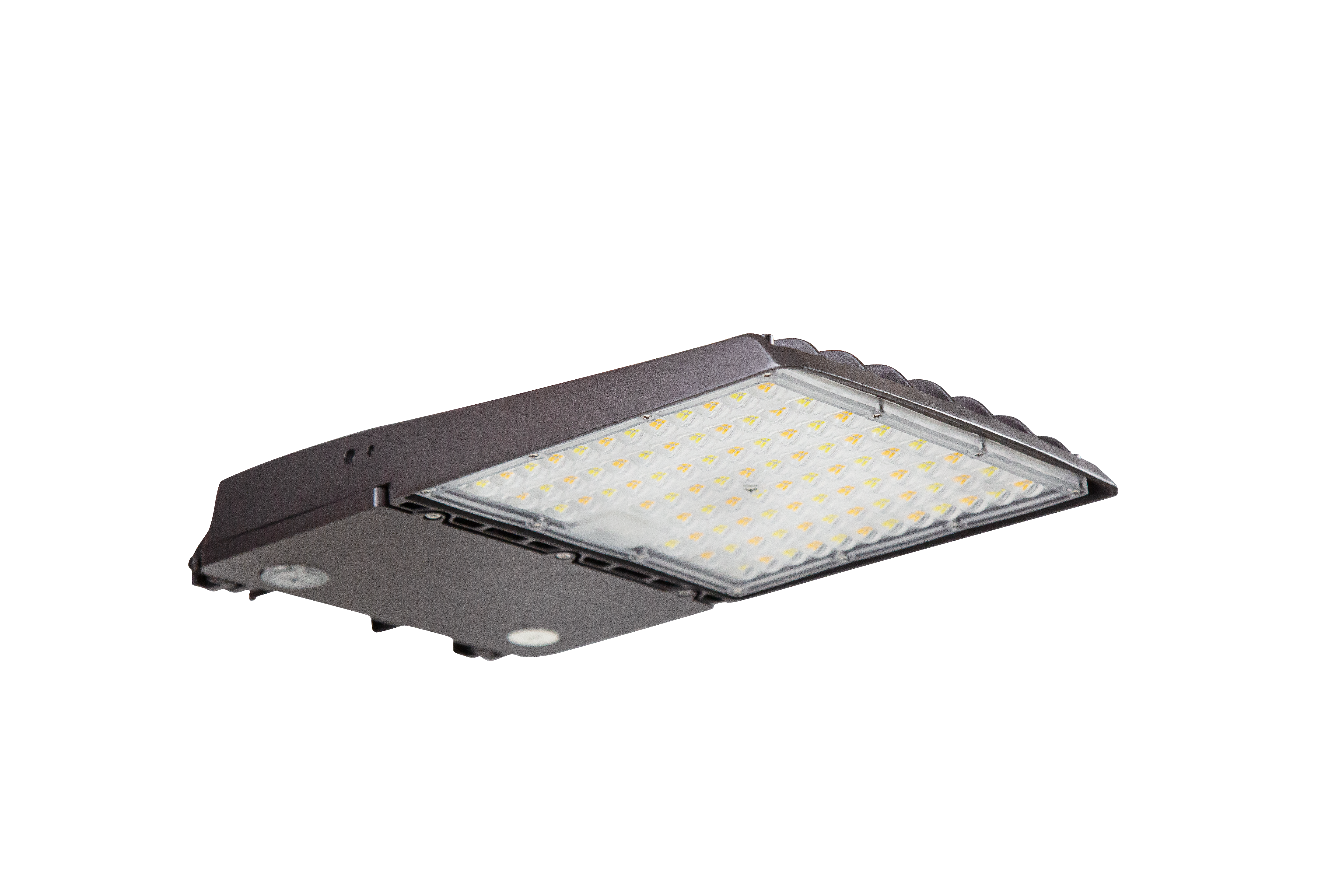

Multi-Purpose LED Area Light Sensor Ready | 24K Lm Max | CCT Selectable | 120/277V | MPALSR-241812L-3CCT

The Multi-Purpose Area Light – Sensor Ready with Lumen & CCT Selectability is a versatile, high-performance outdoor lighting solution designed for a wide range of commercial, industrial, and municipal applications. Delivering field-selectable output from 12,000 to 24,000 lumens, this area light allows installers to fine-tune light levels on site, reducing SKU complexity while maximizing application flexibility.

Available with Type III or Type V IES roadway distributions, this fixture is ideal for parking lots, roadways, campuses, building perimeters, and large outdoor areas. The selectable CCT functionality allows users to choose between 3000K, 4000K, or 5000K, ensuring optimal visual comfort, safety, and compliance with local lighting ordinances.

Constructed with a premium die-cast aluminum housing and finished in a durable bronze powder-coat, the fixture is built to withstand harsh outdoor environments. The polycarbonate lens, IP65 ingress protection, and IK08 impact rating ensure long-term reliability in wet and demanding conditions.

This area light is sensor ready, supporting multiple control options including photocells and occupancy sensors (sold separately), and features standard 0–10V dimming for advanced energy management. Long-life LEDs deliver up to 167,000 hours (L70) of operation, significantly reducing maintenance costs over the fixture’s lifespan.

With multiple mounting options, universal voltage compatibility, and DLC Premium listing, this multi-purpose area light is an efficient, future-ready solution for high-output outdoor lighting projects.

Technical Specifications

Housing

• Premium powder-coated die-cast aluminum

• Finish: Bronze

Electrical

• Operating Temperature: -40°C to 50°C (-40°F to 122°F)

• Input Voltage:

  • Universal 120–277V AC or

  • 277–480V AC (50/60Hz)

• Power Connection: 6-ft incoming power cord

• Dimming: Standard 0–10V DC

• Surge Protection: 6kV

• Power Factor: > 0.9

• Total Harmonic Distortion (THD): < 20%

• Watertight compression-type electrical connectors

Optical System

• Polycarbonate lens

• Selectable CCT: 3000K / 4000K / 5000K

• Selectable Lumen Output:

  • 12,267 to 25,747 nominal lumens

• Distribution Types: IES Type III & Type V

• CRI: > 70

• Chromaticity: < 6-step ANSI quadrangles

• Color Maintenance: Δu’v’ < 0.0019 over first 6,000 hours

• LED Lifetime:

  • 167,000 hours @ L70

  • 51,000 hours @ L90

• Sensor Ready: Screw-in sensor port (sensor & remote sold separately)

Mounting Options (sold separately)

• Universal Mount (Arm + Slip-fitter)

• Adjustable Arm Mount

• Slip-fitter Mount

• Yoke Mount

• Trunnion Mount

• Pole tenons and tenon adapters available

Certifications & Compliance

• cULus Listed for Wet Locations

• DLC Premium Listed

• FCC Part 15, Class A compliant

• IP65 ingress protection

• IK08 impact rating
