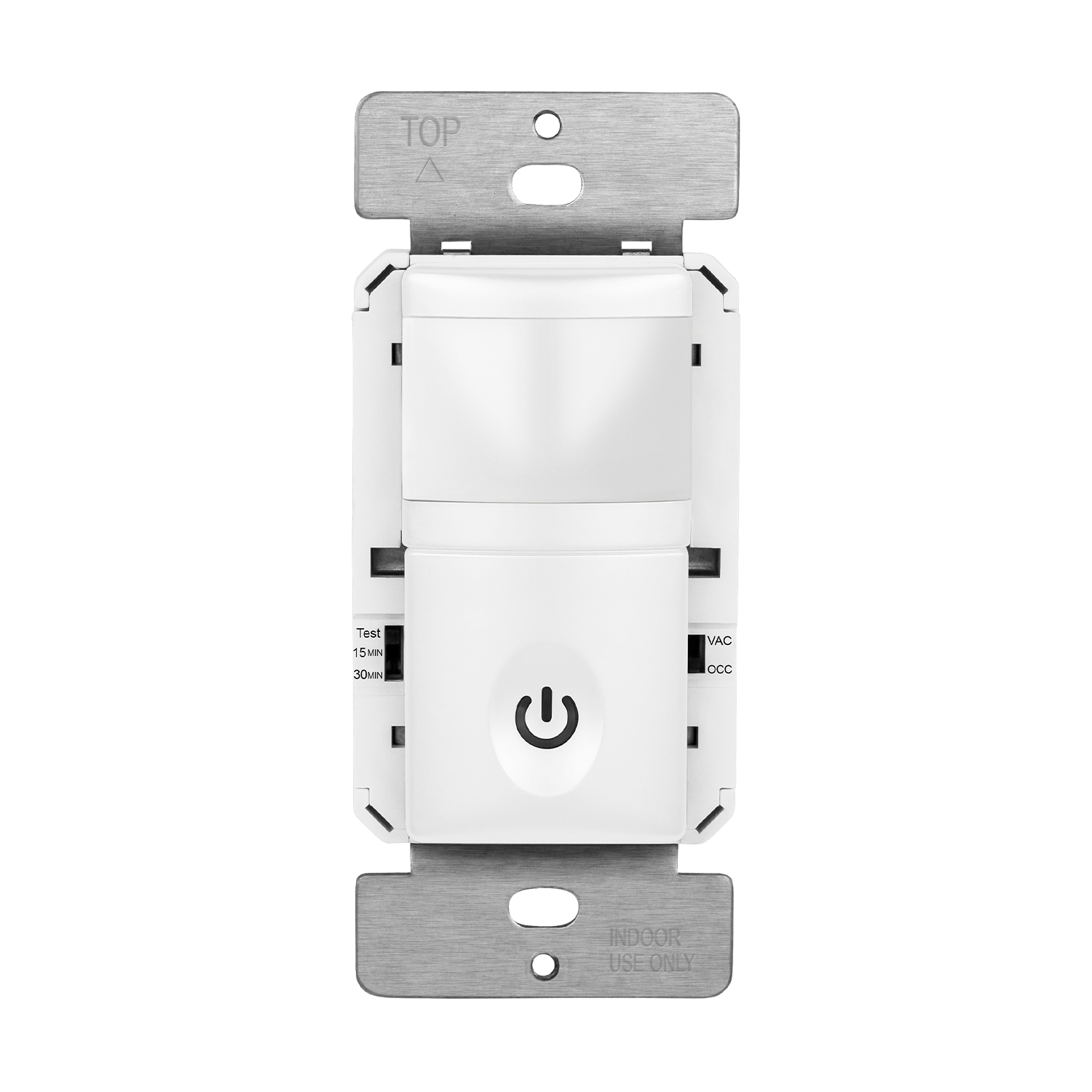

180° PIR Occupancy/Vacancy Motion Sensor Wall Switch | 120V | Enerlites HMOS

The ENERLITES HMOS 180° PIR Occupancy/Vacancy Motion Sensor Wall Switch is an energy-efficient lighting control solution designed for residential and commercial applications requiring reliable motion detection and code compliance. Using Passive Infrared (PIR) technology, this sensor detects body heat movement within a 180° field of view, delivering up to 700 sq. ft. of dense coverage for consistent and accurate performance.

The HMOS offers dual operating modes—Occupancy and Vacancy—allowing flexible control based on application requirements. In occupancy mode, lights automatically turn ON when motion is detected and OFF after the selected time delay once the space is unoccupied. In vacancy mode, lights must be turned ON manually using the convenient push button, then automatically turn OFF after inactivity, making it ideal for Title 24–compliant installations.

A fully adjustable time delay from 15 seconds to 20 minutes enables customized energy savings, while the manual ON/OFF push button allows override control at any time. A built-in LED indicator flashes during motion detection for easy setup and verification, and a smart LED backlight activates in vacancy mode to help locate the switch in dark rooms.

Designed for single-pole installations and requiring a neutral wire, the ENERLITES HMOS is compatible with incandescent, CFL, and LED lighting. The interchangeable face cover allows quick color changes to match décor. UL listed and backed by a 2-year warranty, this motion sensor switch delivers dependable performance, safety, and long-term value.

Technical Specifications

• Brand: ENERLITES

• Model: HMOS

• Device Type: PIR Occupancy/Vacancy Motion Sensor Wall Switch

• Mounting: Wall switch

• Control Type: Single Pole

• Neutral Wire: Required

• Sensing Technology: Passive Infrared (PIR)

• Field of View: 180°

• Coverage Area: Up to 700 sq. ft.

• Operating Modes:

  • Occupancy (Auto ON / Auto OFF)

  • Vacancy (Manual ON / Auto OFF)

• Time Delay: Adjustable from 15 seconds to 20 minutes

• Manual Control: Push-button ON/OFF

• Indicator: LED flashes when motion is detected

• Backlight: Smart LED locator light (vacancy mode)

• Compatible Loads: Incandescent, CFL, and LED lighting

• Face Cover: Interchangeable colors

• Compliance: California Title 24, Part 6 (Vacancy Mode)

• Certifications: UL Listed

• Warranty: 2-Year Limited Warranty
