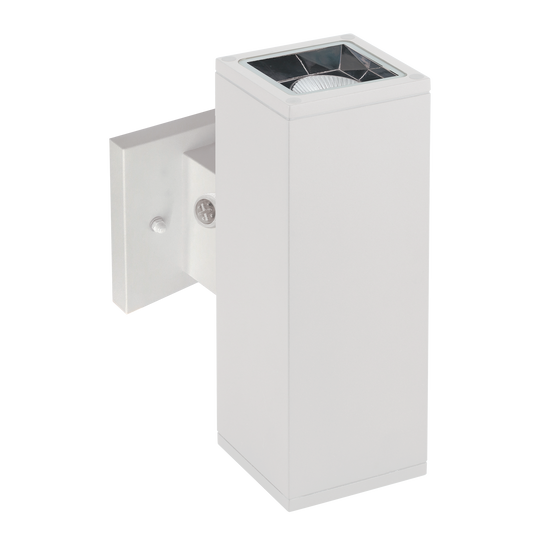

Enhance your exterior lighting design with the LR40341 10" Up-Down Outdoor Wall Sconce, a versatile and high-performance LED fixture engineered to deliver precision architectural illumination. Finished in a clean white and shaped with a slim, modern profile, this up-and-down wall sconce is ideal for residential, hospitality, and commercial environments—perfect for illuminating entryways, facades, patios, walkways, and building perimeters with a refined, contemporary touch.

Featuring 3CCT Selectable color tuning (3000K / 4000K / 5000K) and 3Watt selectable output (15W / 20W / 24W), the LR40341 allows complete customization of brightness and color temperature to suit any design requirement. With lumen outputs ranging from 1500 to 2400 lumens and a focused 30° beam angle, this fixture creates crisp vertical lighting accents while ensuring uniform illumination across outdoor surfaces.

Built for demanding outdoor environments, the LR40341 supports a universal 120–277V input and offers dual dimming compatibility, enabling TRIAC dimming at 120V and 0–10V dimming across 120–277V systems. This flexibility makes it suitable for both residential installations and large-scale commercial lighting projects. Offering a reliable 50,000-hour rated lifetime, 80 lm/W efficacy, and a 0.9 power factor, the fixture provides long-term performance with reduced maintenance needs. Its operating temperature range of –4°F to 113°F ensures consistent operation in varying climates.

Optimized for logistics and retail distribution, the LR40341 includes complete UPC and master carton barcodes, protective packaging, and a compact carton design for efficient warehousing and transport.

🔧 TECHNICAL INFORMATION

PHYSICAL DIMENSIONS

• Size: 10.15"

• Length: 10.15"

• Width: 3.54"

• Depth: 6.10"

• Shape: Outdoor Wall Sconce

• Finish: White

• MOL: 10.15"

PHOTOMETRIC

• CCT Selectable: 3000K / 4000K / 5000K

• Lumen Output: 1500 / 2000 / 2400

• Beam Angle: 30°

• CRI: 80

ELECTRICAL

• Wattage Options: 15W / 20W / 24W

• Input Voltage: 120–277V

• Rated Lifetime: 50,000 hours

• Dimmable: TRIAC (120V) / 0–10V (120–277V)

• Power Factor: 0.9

• Frequency: 50/60Hz

• Lumen Efficacy: 80 lm/W

• Operating Temperature: –4°F to 113°F

• Estimated Yearly Energy Cost: $2.89

PACKAGING

• UPC: 793888459847

• Master Carton Barcode: 10793888459844

• Master Carton Dimensions:

  • Length: 14.84"

  • Width: 13.97"

  • Height: 11.81"

• Case Pack: 6 units
