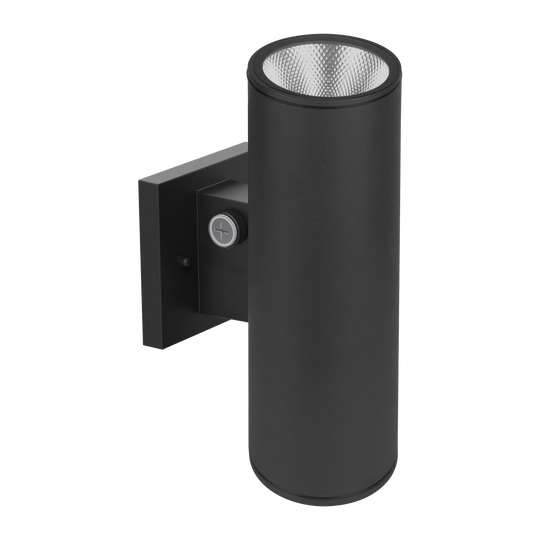

10 Inch Up-Down Outdoor Cylinder Wall Sconce | 18W Max | 1.800Lm Max | 3-CCT Selectable | 120/277V

Illuminate your exterior spaces with the 10" Up-Down Outdoor Cylinder LR40336, finished in sleek black. Designed with a modern cylindrical profile, this LED outdoor fixture provides precise architectural up-and-down lighting, ideal for residential, commercial, and hospitality applications. Perfect for entryways, patios, walkways, and building facades, it combines style with high-performance illumination.

Featuring CCT and wattage selectable technology, you can choose from 3000K, 4000K, or 5000K color temperatures and 12W, 15W, or 18W power levels, allowing flexible brightness from 1200 to 1800 lumens. Its 30° beam angle and CRI of 80 deliver focused, uniform light ideal for accent, task, or ambient outdoor lighting.

Operating at 120–277V with dual dimming capability (TRIAC @120V / 0-10V @120–277V), this energy-efficient fixture offers a 50,000-hour rated lifetime, 70 lm/W efficacy, and a 0.9 power factor. It functions reliably from –4°F to 113°F, with a low annual energy cost of $2.16. Each unit ships with full UPC and master barcode information for seamless inventory management and distribution.

🔧 TECHNICAL SPECIFICATIONS

Physical Dimensions

• Size: 10"

• Length: 10"

• Width: 3.01"

• Depth: 5.6"

• Shape: Outdoor Cylinder

• Finish: Black

• MOL: 10"

Photometric & Electrical

• Lumen Output: 1200 / 1500 / 1800

• Beam Angle: 30°

• CRI: 80

• CCT Options: 3000K / 4000K / 5000K

• Power: 12W / 15W / 18W

• Voltage: 120–277V

• Rated Lifetime: 50,000 hours

• Lumen Efficacy: 70 lm/W

• Power Factor: 0.9

• Frequency: 50/60Hz

• Dimmable: TRIAC @120V / 0–10V @120–277V

• Operating Temperature: –4°F to 113°F

• Yearly Energy Cost: $2.16

Packaging

• UPC Barcode: 793888430945

• Master Barcode: 10793888430942

• Master Carton Dimensions: 19.29" L × 18.97" W × 11.73" H

• Master Carton Weight: 18.81 lbs

• Case Size: 12
