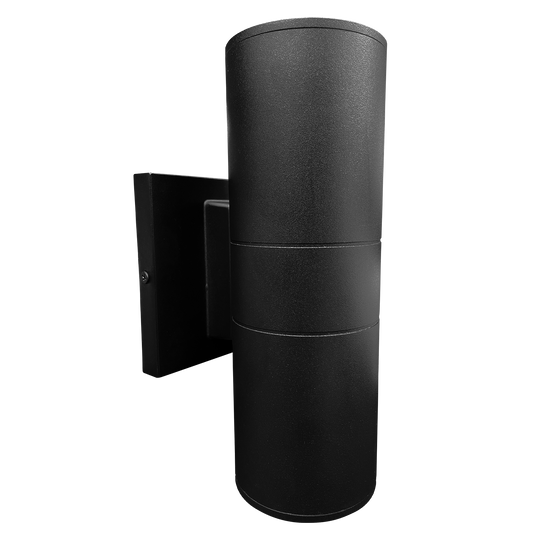

Enhance outdoor architectural spaces with the LR40335 10" Up-Down Outdoor Cylinder, a modern LED fixture engineered for high performance, durability, and visual appeal. With its sleek black finish and clean cylindrical profile, this luminaire delivers powerful bidirectional up-and-down illumination, ideal for accenting building facades, entryways, patios, walkways, hospitality environments, and commercial exteriors.

Built with 5CCT Selectable technology, the fixture allows installers and designers to choose between 2700K, 3000K, 3500K, 4000K, or 5000K, providing complete flexibility for warm architectural tones, neutral white lighting, or bright daylight output depending on the application. Producing 1800 lumens with a 60° beam angle and a CRI of 80, this outdoor cylinder ensures uniform, high-quality illumination suited for safety, ambiance, and architectural enhancement.

Constructed for reliability, the LR40335 operates at 20W with a wide 120–277V input range, making it compatible with residential, commercial, and industrial electrical systems. With an extended 50,000-hour rated lifetime, 87 lm/W efficacy, and a 0.9 power factor, it offers long-term energy efficiency and minimal maintenance requirements. Engineered to withstand outdoor elements, it performs in temperatures from –4°F to 104°F, ensuring dependable operation year-round.

For streamlined distribution, logistics, and retail placement, the fixture includes full UPC and master carton barcodes, along with protective packaging designed for safe transport and easy inventory management.

🔧 TECHNICAL INFORMATION

PHYSICAL DIMENSIONS

• Size: 10.23" × 5.63"

• Width: 4.92"

• Height: 10.23"

• Depth: 4.40"

• Shape: Cylinder

• Finish: Black

• MOL: 10.23"

PHOTOMETRIC

• CCT Selectable: 2700K / 3000K / 3500K / 4000K / 5000K

• Lumen Output: 1800

• Beam Angle: 60°

• CRI: 80

ELECTRICAL

• Wattage: 20W

• Input Voltage: 120–277V

• Rated Lifetime: 50,000 hours

• Lumen Efficacy: 87 lm/W

• Power Factor: 0.9

• Input Current: 0.2mA

• Frequency: 60Hz

• Operating Temperature: –4°F to 104°F

• Estimated Yearly Energy Cost: $2.40

PACKAGING

• UPC: 793888403147

• Master Carton Barcode: 10793888403144

• Master Carton Size:

  • Length: 16.14"

  • Width: 11.61"

  • Height: 11.02"

• Case Pack: 6 units
