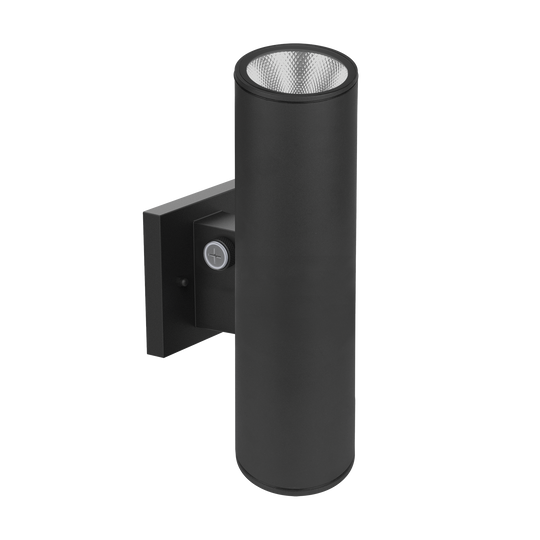

Upgrade your outdoor architectural lighting with the LR40334 10" Narrow Up-Down Outdoor Cylinder, a premium LED fixture engineered for precision illumination, energy efficiency, and installation versatility. Designed with a sleek, narrow cylindrical body and finished in elegant black, this up-and-down wall-mounted luminaire delivers focused, high-performance lighting ideal for residential and commercial applications. Its 25° narrow beam angle creates striking vertical accents, enhancing façades, entryways, pathways, hospitality venues, and modern exteriors.

The LR40334 features advanced 3CCT and 3Watt selectable technology, offering customizable lighting output to suit any environment. Choose from 3000K, 4000K, or 5000K to achieve warm white, neutral white, or daylight illumination. Adjustable wattages of 11W, 14W, or 18W provide lumen outputs ranging from 1100 to 1800 lumens, giving designers and installers complete control over brightness levels, energy usage, and lighting mood.

Built for performance and reliability, this cylinder supports a universal 120–277V input, making it suitable for both residential and commercial electrical systems. It is dimmable—using TRIAC dimming at 120V or 0–10V dimming at 120–277V—ensuring smooth, flicker-free control across multiple applications. With a long-lasting 50,000-hour rated lifetime, 77 lm/W efficacy, and a 0.9 power factor, the LR40334 provides dependable, energy-efficient lighting year-round. Designed for outdoor environments, it operates reliably from –4°F to 113°F, ensuring consistent performance in varying climates.

Its packaging is optimized for protection, storage, and logistics, featuring both UPC and master case barcodes for seamless inventory management.

🔧 TECHNICAL INFORMATION

PHYSICAL DIMENSIONS

• Size: 10"

• Length: 10"

• Width: 4.3"

• Depth: 4.92"

• Shape: Outdoor Cylinder

• Finish: Black

• MOL: 10"

PHOTOMETRIC

• CCT Selectable: 3000K / 4000K / 5000K

• Lumen Output: 1100 / 1400 / 1800

• Beam Angle: 25°

• CRI: 80

ELECTRICAL

• Wattage Options: 11W / 14W / 18W

• Input Voltage: 120–277V

• Rated Lifetime: 50,000 hours

• Dimmable: TRIAC (120V) / 0–10V (120–277V)

• Lumen Efficacy: 77 lm/W

• Power Factor: 0.9

• Frequency: 50/60Hz

• Operating Temperature: –4°F to 113°F

• Estimated Yearly Energy Cost: $2.16

PACKAGING

• UPC: 732388922161

• Master Carton Barcode: 10732388922168

• Master Carton Size:

  • Length: 20.07"

  • Width: 17"

  • Height: 11.65"

• Case Pack: 12 units
