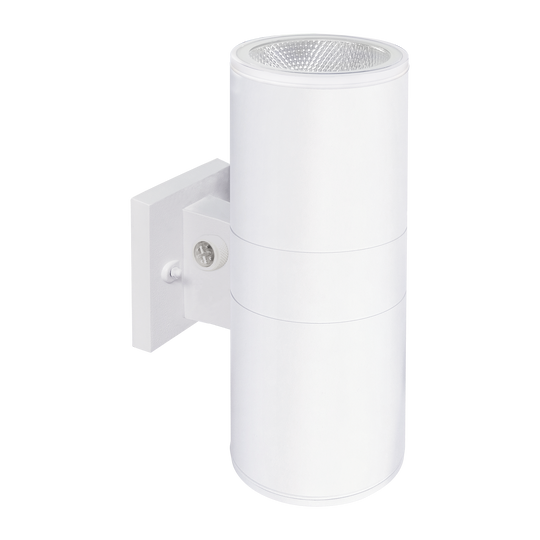

Elevate your exterior architecture with the LR40331 12" Up-Down Outdoor Cylinder, a premium LED fixture designed to deliver powerful vertical illumination and modern visual appeal. Finished in a crisp white, this 12-inch outdoor cylinder provides balanced up-and-down light distribution, making it ideal for commercial buildings, residential exteriors, hospitality venues, patios, and walkways. Its sleek cylindrical profile enhances modern and transitional architectural styles while offering exceptional performance and flexibility.

The LR40331 is equipped with CCT Selectable technology (3000K / 4000K / 5000K) and wattage-selectable output (18W / 24W / 30W), allowing installers to tailor the fixture’s light output and color temperature to match project needs. With lumen levels ranging from 1800 to 3000 lumens and a precise 40° beam angle, this outdoor cylinder provides strong vertical architectural accents and uniform illumination for enhanced visibility and safety.

Supporting a universal 120–277V input, the fixture includes dual dimming compatibility—TRIAC dimming at 120V for residential applications and 0–10V dimming for commercial lighting control systems. Engineered for outdoor environments, it operates reliably in temperatures from –4°F to 113°F and features a durable 50,000-hour rated lifetime, offering long-term energy efficiency with minimal maintenance. Its 70 lm/W efficacy and 0.9 power factor ensure consistent, efficient operation across all selectable wattage levels.

Packaged for optimized handling and distribution, the LR40331 includes both UPC and master carton barcodes, along with durable protective packaging designed for safe transportation and easy inventory management.

🔧 TECHNICAL INFORMATION

PHYSICAL DIMENSIONS

• Size: 12"

• Length: 12"

• Width: 4.25"

• Depth: 6.77"

• Shape: Outdoor Cylinder

• Finish: White

• MOL: 12"

PHOTOMETRIC

• CCT Selectable: 3000K / 4000K / 5000K

• Lumen Output: 1800 / 2400 / 3000

• Beam Angle: 40°

• CRI: 80

ELECTRICAL

• Wattage Options: 18W / 24W / 30W

• Input Voltage: 120–277V

• Rated Lifetime: 50,000 hours

• Dimmable: TRIAC (120V) / 0–10V (120–277V)

• Lumen Efficacy: 70 lm/W

• Power Factor: 0.9

• Frequency: 50/60Hz

• Operating Temperature: –4°F to 113°F

• Estimated Yearly Energy Cost: $3.61

PACKAGING

• UPC: 793888459748

• Master Carton Barcode: 10793888459745

• Master Carton Dimensions:

  • Length: 15.75"

  • Width: 15.43"

  • Height: 13.58"

• Case Pack: 6 units
