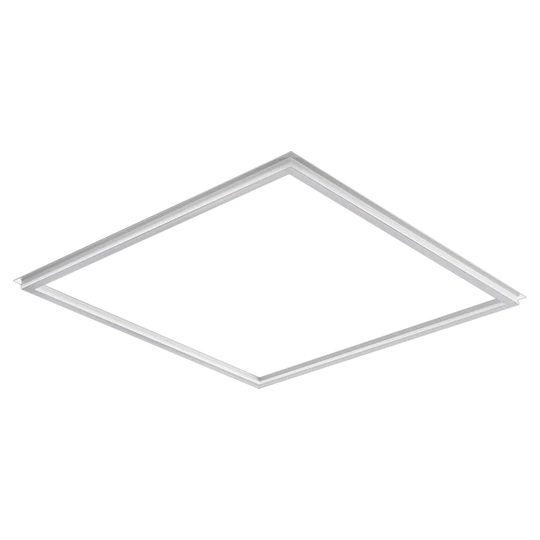

The LR24164 2x2 Frame LED Panel is a high-performance, energy-efficient lighting solution designed for commercial, office, educational, and residential applications. This versatile panel features 5 CCT selectable color temperatures (3000K, 3500K, 4000K, 5000K, 6500K) and 3 wattage options (20W, 30W, 40W), allowing you to customize light output and color to suit any space or design requirement.

With a 23.7" x 23.7" frame and a slim profile of 0.5" height, the panel integrates seamlessly into ceiling grids or surface mount installations. Its high CRI of 80 ensures accurate color rendering, while the wide 120° beam angle provides uniform, glare-free illumination. The panel is compatible with 0-10V dimming systems, has a long lifespan of 50,000 hours, and operates reliably in temperatures ranging from -4ºF to 113ºF.

Constructed with a white finish, the LR24164 is engineered for durability and style, making it ideal for offices, conference rooms, classrooms, retail spaces, or any environment requiring adaptable, high-quality LED lighting.

⭐ Technical Specifications

• Item Number: LR24164

• Item Description: LED2X2FRAME/PNL/3WO/5CCT/D

• Size: 2x2

• Shape: Frame Panel

• Finish: White

• Dimensions:

  • Length: 23.7"

  • Width: 23.7"

  • Height: 0.5"

• Photometric:

  • Color Temperature: CCT Selectable (3000K / 3500K / 4000K / 5000K / 6500K)

  • Lumen Output: 2600 / 3900 / 5200 lm

  • Beam Angle: 120°

  • CRI: 80

• Electrical:

  • Power: 20 / 30 / 40 W

  • Input Voltage: 100–277V

  • Rated Lifetime: 50,000 hours

  • Dimmable: 0–10V

  • Power Factor: >0.95

  • Input Current: 0.45A Max

  • Frequency: 50/60Hz

  • Lumen Efficacy: 130 lm/W

  • Operating Temp: -4ºF to 113ºF

• Packaging:

  • UPC Barcode: 793888418646

  • Master Barcode: 10793888418643

  • Master Carton Dimensions: 25.98" x 24" x 8.07"

  • Weight: 14.33 lbs

  • Case Size: 6
