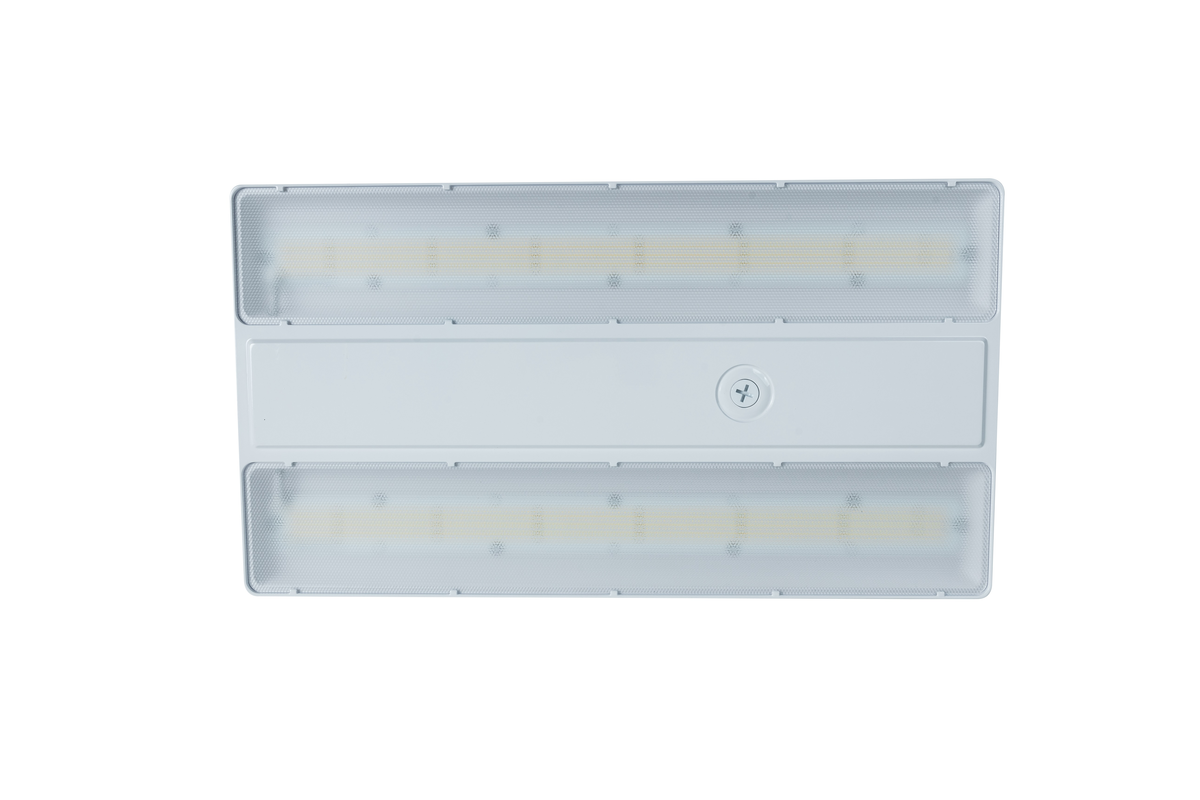

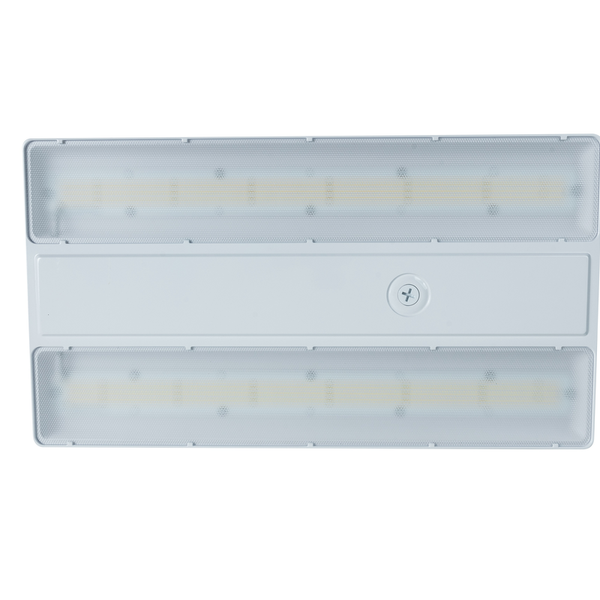

LED Linear High Bay 200W Max | 31K Lumens Max | Selectable CCT | TOPAZ LHB-30L-W-PCS-U

The Topaz Power & CCT Selectable LED Linear High Bay is engineered for superior illumination in large commercial and industrial spaces such as warehouses, gyms, and manufacturing facilities. With three selectable wattages (120W, 160W, 200W) and color temperature options (3500K, 4000K, 5000K), this fixture allows on-site customization to achieve optimal lighting output and energy efficiency.

Built with a durable die-cast aluminum housing and center-mounted driver compartment, it ensures outstanding thermal management and long-term reliability. The diffused polycarbonate lens minimizes glare and provides uniform light distribution for improved visual comfort.

This high bay is sensor-ready, featuring an integrated socket for low-voltage lighting control systems, enhancing energy savings and automation capability. Designed for flexibility and performance, it’s ideal for new installations or retrofit projects requiring high-output lighting in demanding environments.

FEATURES & BENEFITS

• Selectable wattages: 120W / 160W / 200W

• Selectable CCT options: 3500K / 4000K / 5000K

• Lumen output: 18,600 / 24,000 / 30,000 lumens

• Input Voltage: 120–277V

• Beam Angle: 131° wide beam distribution

• Efficacy: Up to 150 lm/W

• 1/2" Knockout for controls or conduit wiring

• Die-cast aluminum body with center driver housing for superior heat dissipation

• Diffused lens minimizes glare and provides smooth, even illumination

• Sensor-ready socket for low-voltage lighting controls (motion/daylight sensors)

• Mounting Options: suspended, pendant, or surface mount

• Operating Temperature: -20°C to +55°C

• Rated Life:

  • 50,000 hours @ 131°F (55°C)

  • 100,000 hours @ 77°F (25°C)

APPLICATIONS

• Warehouses and storage facilities

• Industrial production areas

• Gymnasiums and sports complexes

• Retail centers and big-box stores

• Distribution centers and manufacturing plants

WARRANTY / LISTING

• 5-Year Limited Warranty

• UL Listed for safety and performance

• DLC Premium Qualified for energy rebates

• RoHS Compliant
