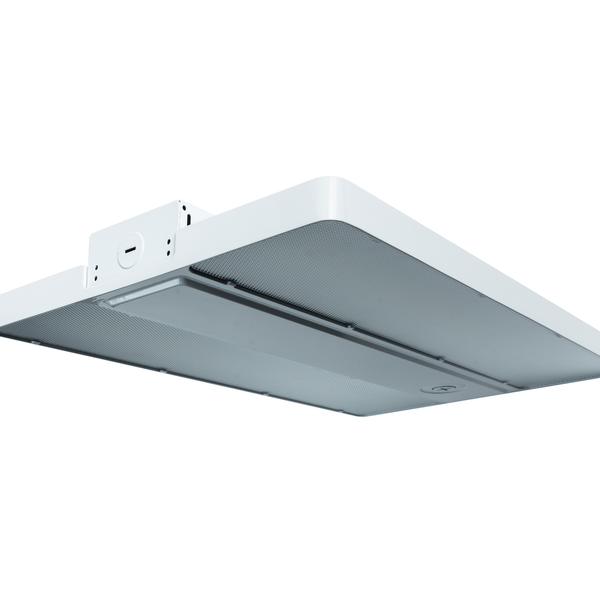

LED Linear High Bay 240W | 36K Lumens | 5000K | TOPAZ LHB-36L-W-50K-U

The Topaz 240W LED Linear High Bay is engineered for superior illumination in high-ceiling industrial and commercial environments. Delivering 36,000 lumens of bright 5000K daylight white light, it replaces traditional 720W HID fixtures while significantly reducing energy consumption and maintenance costs.

Constructed from die-cast aluminum, this fixture offers excellent heat dissipation and long-lasting durability. The diffused lens minimizes glare and ensures uniform light distribution, enhancing visual comfort in demanding spaces such as warehouses, manufacturing facilities, gymnasiums, retail centers, and logistics hubs.

This high bay light operates reliably across a wide voltage range (120–277V AC) and features field-selectable wattage and color temperature options on select models, providing flexibility during installation. A sensor-ready integrated socket enables the use of low-voltage lighting controls for automation and energy optimization.

With an extended operational life of up to 100,000 hours at 77°F (25°C) or 50,000 hours at 131°F (55°C), the Topaz 240W Linear High Bay ensures long-term performance and reduced total cost of ownership.

FEATURES & BENEFITS

• Lumen Output: 36,000 lumens (240W)

• Color Temperature: 5000K (Daylight White)

• Voltage: 120–277V AC

• HID Replacement: 720W equivalent

• Operating Life:

  • 100,000 hours at 77°F (25°C)

  • 50,000 hours at 131°F (55°C)

• Construction: Die-cast aluminum housing with central driver compartment for thermal management

• Optics: Diffused lens reduces glare and ensures even light distribution

• Mounting: Compatible with suspension or surface mount installations

• Controls: ½” knockout for wiring or optional controls

• Sensor Ready: Integrated low-voltage control socket

• Selectable Options (select models): Adjustable power and CCT switch for on-site configuration

• Certifications: UL Listed, DLC Qualified (select models), RoHS compliant

• Applications: Designed for industrial, commercial, and institutional environments
