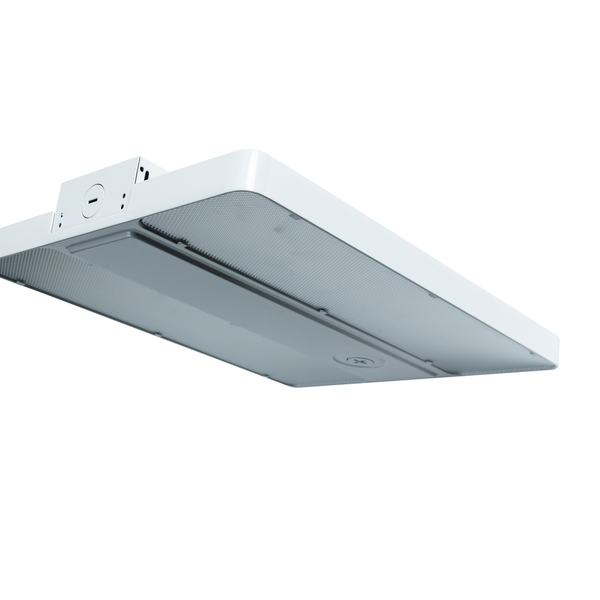

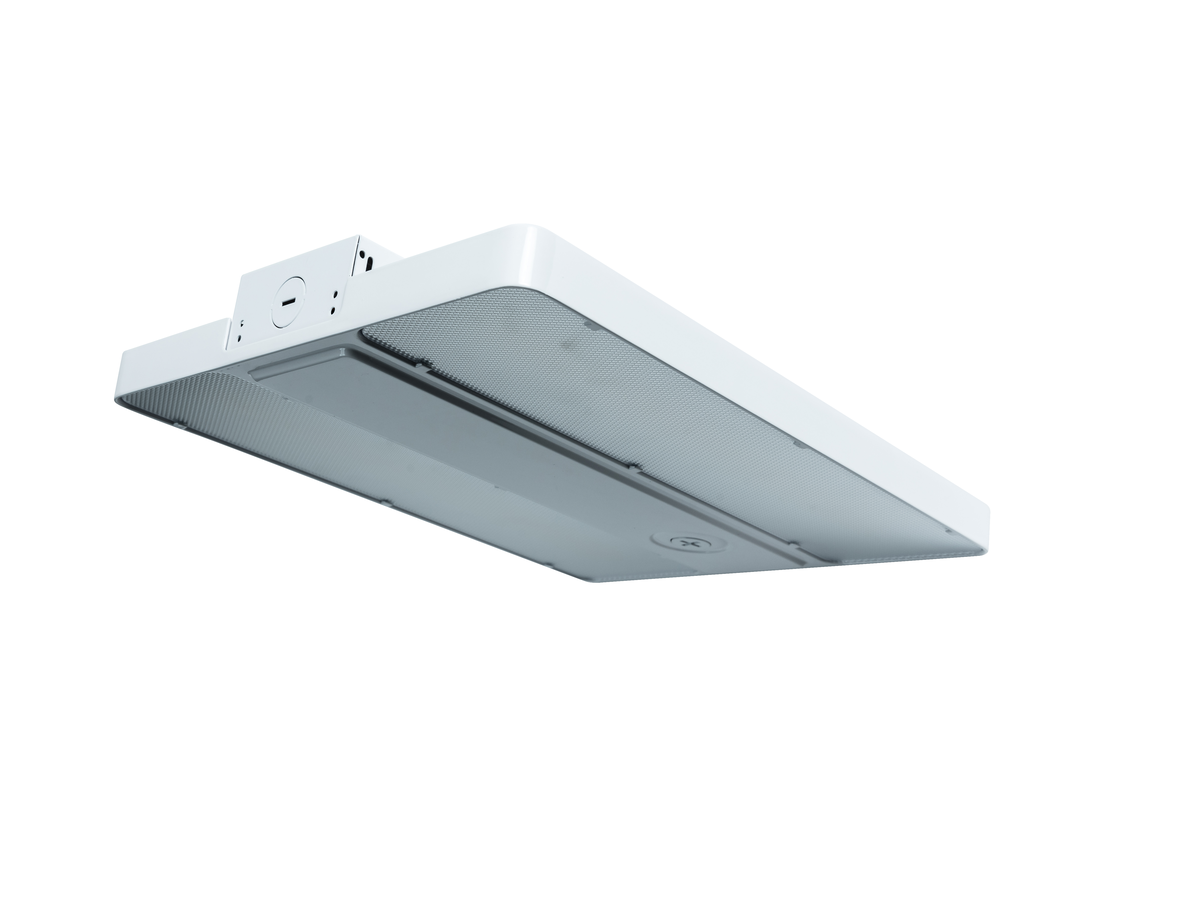

LED Linear High Bay 100W Max | 15.6K Lumens Max | Selectable CCT | TOPAZ LHB-15L-W-PCS-U

The Topaz Power & CCT Selectable LED Linear High Bay delivers powerful, efficient illumination ideal for warehouses, gymnasiums, retail spaces, and industrial facilities. Designed with selectable wattages (60W, 80W, 100W) and color temperature options (3500K, 4000K, 5000K), this fixture provides flexibility for diverse lighting needs—all adjustable at installation through convenient field-selectable switches.

Constructed from die-cast aluminum with a center-mounted driver housing, it ensures superior thermal management and durability. The diffused lens minimizes glare, enhancing visual comfort in high-ceiling applications. Featuring an integrated sensor-ready socket, it easily accommodates low-voltage lighting controls for advanced energy savings.

Rated for up to 100,000 hours of operation at 77°F, this fixture is designed for long-lasting performance in demanding environments.

FEATURES & BENEFITS

• Selectable wattages: 60W / 80W / 100W

• Selectable CCT options: 3500K / 4000K / 5000K

• Lumen output: 9,500 / 12,500 / 15,000 lumens

• Input Voltage: 120–277V

• Efficacy: Up to 150 lm/W

• Beam Angle: 131° wide distribution

• Durable die-cast aluminum body with center driver housing for superior thermal control

• Frosted diffuser lens for uniform illumination and reduced glare

• Sensor-ready design for low-voltage lighting control integration

• ½" Knockout provided for controls or conduit wiring

• Mounting Options: suspension, pendant, or surface mount

• Lifespan: 50,000 hrs @ 131°F | 100,000 hrs @ 77°F

• Operating Temperature: -20°C to +55°C

APPLICATIONS

• Warehouses

• Manufacturing facilities

• Gymnasiums

• Retail and commercial centers

• Distribution and storage areas

WARRANTY / LISTING

• 5-Year Limited Warranty

• UL Listed for safety and performance

• DLC Premium Qualified for utility rebates

• RoHS Compliant
