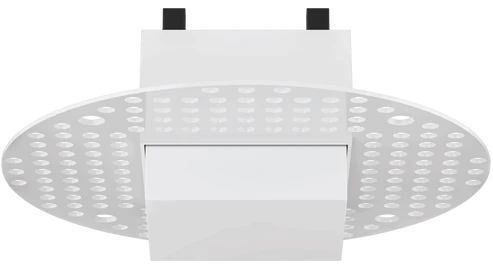

The 4-inch Square Trimless Drop Lens Downlight (G-20464) is a premium architectural LED fixture engineered for seamless integration into modern ceilings. Designed with a frameless trimless profile, it delivers a clean, minimalist aesthetic ideal for high-end residential, commercial, and hospitality spaces.

This fixture features a frosted drop lens that creates a striking floating-light effect while providing smooth, glare-free illumination. With dual wattage (15W/20W) and five selectable CCT options (2700K / 3000K / 3500K / 4100K / 5000K), it offers complete flexibility for both ambiance and performance needs across diverse applications.

The downlight delivers 1200–1700 lumens, ensuring strong yet comfortable brightness with >90 CRI for accurate color rendering. Its wide 130° beam spread provides uniform light distribution, making it excellent for general lighting, feature lighting, and perimeter layouts.

Built for demanding environments, this fixture is wet-location rated, FT6 plenum-rated, and certified ETL and Title 24 compliant. It operates on 120–277V, supports both Triac and 0–10V dimming, and installs easily with a secure clip-in mounting system.

The 4" Square Trimless Drop Lens is engineered for performance, longevity, and versatility—an ideal choice for architects, designers, and lighting professionals seeking a modern recessed lighting solution.

🔧 Technical Specifications (SEO-Friendly List Format)

General Specs

• Product Code: G-20464

• Model: DL4/20W/SQ/2WS/5CCT/TL

• Shape: Square

• Style: Trimless (frameless design)

• Size: 4 Inch

• Finish: White

• Diffuser: Frosted

• Number of Lights: 1

• Cutout: Square 3.23” / Round 4.40”

• Outside Dimensions (OD): 6.89"

• Height: 1.79"

• Lens Width: 2.76"

• Lens Drop: 0.98"

• Mounting: Clip-in

• Master Pack: 18 Units

• Barcode: 990379204645

Light Specs

• CCT: 5 CCT Selectable

• Color Temperatures: 2700K / 3000K / 3500K / 4100K / 5000K

• Lumens: 1200 / 1700 lm

• CRI: >90

• Beam Spread: 130°

Electrical Specs

• Power: 15W / 20W Dual Wattage

• Voltage: 120–277V

• Output Current: 353 / 515 mA

• Plenum Rated: FT6

• Dimming: Triac or 0–10V Dimming

Compliance & Ratings

• Location Rating: Wet Location

• Warranty: 3 Years

• Certifications: ETL, Title 24 Listed
