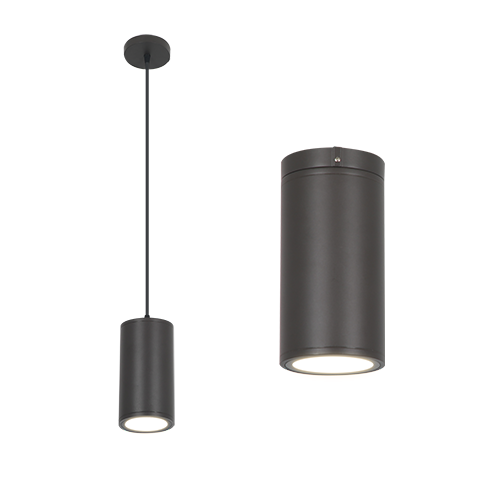

4 Inch Architectural Pendant Light | 19W Max | 2.000Lm Max | CCT Selectable | 120/277V | APEN

The APEN Pendant Cylinder is a high-performance architectural LED luminaire designed to provide both striking aesthetics and superior lighting performance. With its sleek 4-inch cylindrical design and premium powder-coated aluminum housing, it seamlessly integrates into modern offices, lobbies, retail spaces, and commercial interiors.

This versatile fixture offers Tri-Lumen selectable output ranging from 978 to 1907 lumens and five color temperatures (2700K–5000K), allowing designers to tailor both brightness and ambiance. The CRI >90 ensures true, vibrant color rendering, making it ideal for accent or general illumination. Its interchangeable reflectors (25°, 40°, 60°) provide precise beam control, further enhancing flexibility in design applications.

With LEDs rated for 140,000 hours (L70) and 41,000 hours at L90, the APEN Pendant Cylinder delivers long-term performance while maintaining color consistency (<0.0004 chromaticity shift Δu’v’ over 6,000 hours). The fixture comes installed with a 40° reflector, with optional field-replaceable 25° and 60° reflectors for additional beam options.

The APEN Pendant Cylinder is universally dimmable (0–10V), supports 120–277V AC operation, and includes 4kV surge protection with a power factor >0.90. Optional mounting kits include surface mount, cord mount, and stem mount solutions (sold separately), ensuring flexible installation options.

Built for demanding commercial environments, it is cULus wet-location listed, Energy Star certified, and compliant with FCC Part 15 Class B, combining energy efficiency, reliability, and sophisticated design in a single pendant fixture.

FEATURES

• Premium powder-coated aluminum housing, bronze finish

• Tri-Lumen selectable output: 978–1907 lumens

• Color temperature selectable: 2700K, 3000K, 3500K, 4000K, 5000K

• Color rendering index (CRI) >90 for true color fidelity

• Interchangeable reflectors: 25°, 40°, 60° for precise beam control

• LED long-life: 140,000 hours (L70), 41,000 hours (L90)

• LED color maintenance: <0.0004 Δu’v’ over initial 6,000 hours

• 0–10VDC universal dimming

• Operating temperature: -40°C to 45°C (-40°F to 113°F)

• Surge protection: 4kV, power factor >0.90

• Optional mounting kits: surface, cord, or stem (sold separately)

• cULus listed for wet locations, Energy Star certified, FCC Part 15 Class B compliant

TECHNICAL SPECIFICATIONS

• Model: APEN Pendant Cylinder

• Housing: Powder-coated aluminum, bronze

• Lens: Silicon dioxide glass

• Voltage: 120–277V AC, 50–60Hz

• LED Output: 978–1907 lumens (Tri-Lumen selectable)

• Color Temperatures: 2700K–5000K selectable

• Beam Angles: 25°, 40°, 60° (interchangeable reflectors)

• CRI: >90

• Lumen Maintenance: L70 140,000 hours; L90 41,000 hours

• Dimming: 0–10VDC, universal

• Ambient Operating Temperature: -40°C to 45°C (-40°F to 113°F)

• Listings: cULus Wet Location, Energy Star, FCC Part 15 Class B
