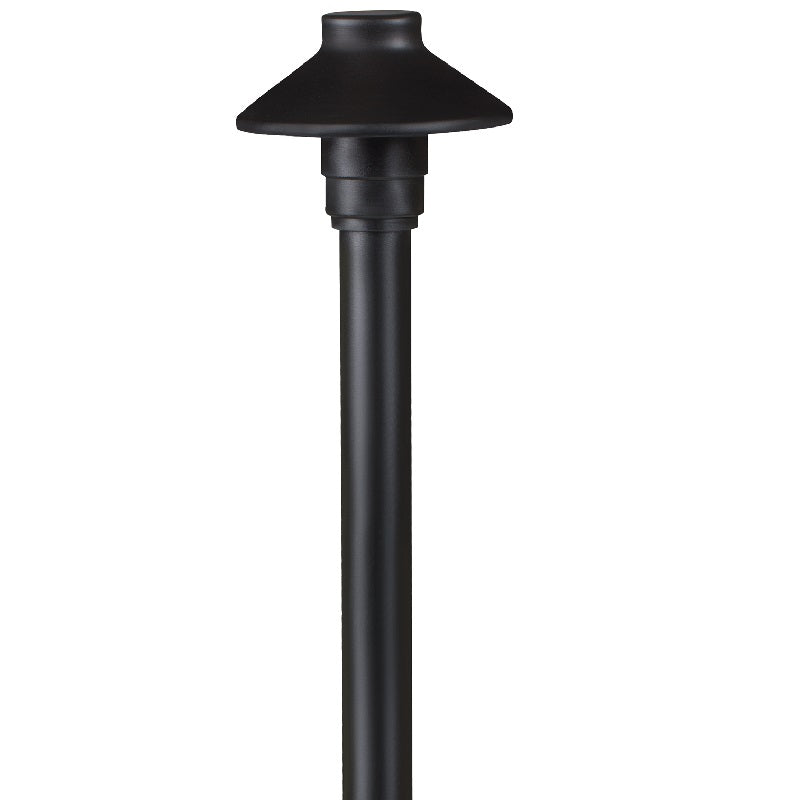

Mini Umbrella Path Light with 18″ & 12" Stem | Aluminum 12V T3
| SKU(s) | CL-640-BK-12 |
| Size | 12" | 18" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 3-1/2" |
| Length | 3-1/2" |
| Height | 12" / 18" |
| Diameter | 3-1/2" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Mini Umbrella 18″ Stem Path Light offers stylish and efficient illumination for walkways, gardens, patios, and landscaped outdoor spaces. Its compact umbrella-style design provides a softer, more focused light spread compared to standard umbrella fixtures, making it ideal for intimate path lighting and decorative applications.
Crafted from durable die-cast aluminum, this architectural-grade fixture ensures strength and weather resistance. The clear tempered glass lens with protective cover shields the lamp from sprinkler water while maintaining clarity and consistent brightness.
Equipped with a high-quality fixed ceramic bi-pin socket, the Mini Umbrella Path Light allows for quick, tool-free lamp replacement and supports 12V T3 lamps up to 20W halogen or LED equivalents.
The fixture comes prewired with a 3-ft 18-2 SPT2-W direct burial cord and includes a rugged injection-molded ground spike with ½″ NPT female hub for stable mounting and easy installation.
✔ Compact mini umbrella design for elegant accent lighting
✔ Die-cast aluminum housing with 18″ stem in Black or Bronze
✔ Tempered glass lens with sprinkler protection
✔ Fixed ceramic bi-pin socket with tool-free lamp access
✔ Supports 12V T3 lamps, 20W halogen max / LED equivalent
✔ Prewired with 3-ft direct burial cord
✔ Includes plastic ground spike with ½″ NPT hub
✔ Voltage range: 9V–17V | Requires 12V transformer
✔ 5-year warranty on fixture housing against defects
$315.00 /each
| SKU(s) | CL-755-BT-AB-18 |
| Color | Antique Bronze | Gun Metal |
| Size | 18" | 24" |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-6W |
| Voltage | 10-15V |
| Lumens | 15LM - 450LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 2-1/2" |
| Length | 2-1/2" |
| Height | 24" / 18" |
| Diameter | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$99.00 /each
| SKU(s) | CL-717-BK |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black & Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Height | 18" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$72.00 /each
| SKU(s) | L-ED16-5W-BT |
| Color | Black |
| Wattage | 1W-5W |
| Voltage | 9V-17V AC & DC |
| Lumens | 25LM - 530LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 1-7/8" |
| Length | 1-7/8" |
| Height | 1-7/8" |
| Diameter | 1-7/8" |
| LED Life | 50.000 Hrs |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$72.00 /each
| SKU(s) | L-EDT3-3W-BT |
| Color | White |
| Wattage | 0.5W - 3W |
| Voltage | 9V-17V AC & DC |
| Lumens | 10LM - 200LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7/8" |
| Length | 7/8" |
| Height | 1-3/8" |
| Diameter | 7/8" |
| LED Life | 50.000 Hrs |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
