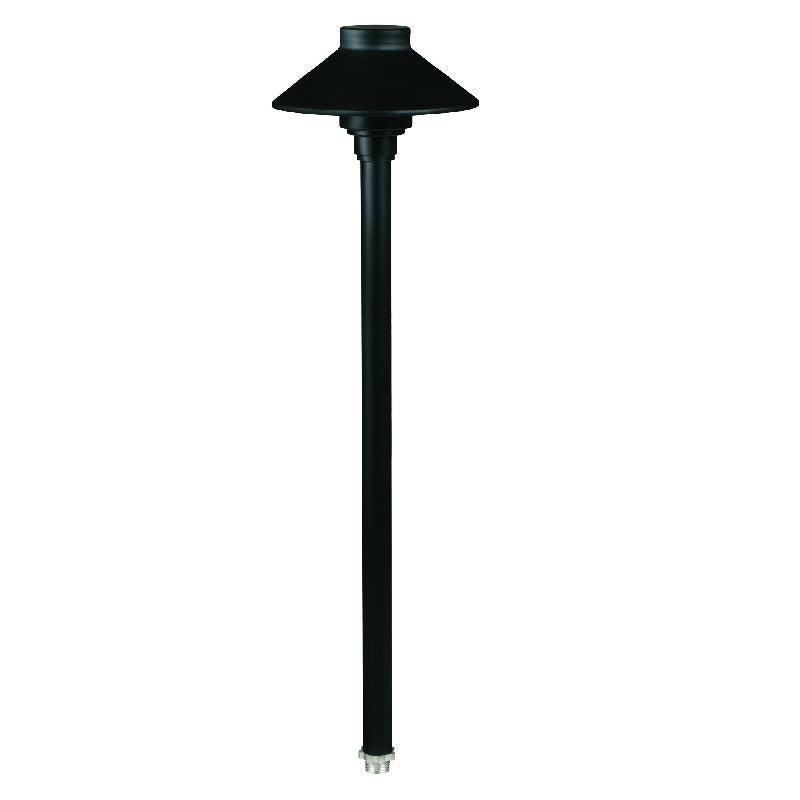

Umbrella 18″ & 12" Path Light | Aluminum 12V T3 Lamp
| SKU(s) | CL-641-BK-12 |
| Size | 12" | 18" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Length | 6" |
| Height | 12" / 18" |
| Diameter | 6" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Umbrella 18″ Stem Path Light combines durability, style, and reliable illumination, making it ideal for walkways, gardens, patios, driveways, and outdoor living spaces. Its wider umbrella-style shade provides excellent light spread and glare control, creating safe and visually appealing pathways.
Built from die-cast aluminum with a standard 18″ stem, this architectural-grade fixture ensures strength and weather resistance. The clear tempered glass lens with protective cover shields the lamp from sprinkler water while maintaining bright and consistent illumination.
Featuring a high-quality ceramic bi-pin socket, the Umbrella Path Light supports 12V T3 lamps (20W halogen max or LED equivalent) with tool-free lamp access for easy maintenance.
The fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord and includes a durable injection-molded ground spike with ½″ NPT threaded female hub for quick installation.
✔ Umbrella-style shade provides excellent light spread for safe, elegant path lighting
✔ Die-cast aluminum housing with 18″ stem in Black or Bronze finish
✔ Clear tempered glass lens with sprinkler protection
✔ Ceramic bi-pin socket with easy tool-free lamp access
✔ Supports 12V T3 lamps (20W halogen max / LED equivalent)
✔ Prewired 3-ft direct burial cord for hassle-free installation
✔ Includes plastic ground spike with ½″ NPT hub
✔ Voltage: 9V–17V | Requires 12V transformer
✔ 5-year warranty on housing against manufacturer defects
$35.15 /each
| SKU(s) | CL-503-BK |
| Color | Black | Green |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Green |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3" |
| Length | 3" |
| Height | 7-3/4" |
| Diameter | 3" |
| LED Life | 50.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$133.25 /each
| SKU(s) | CL-720-BK-18 |
| Size | 18" | 24" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Bronze |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 18" & 24" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$84.65 /each

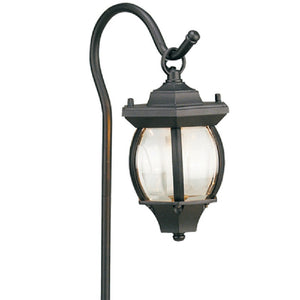

| SKU(s) | CL-637-BK |
| Color | Black |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 7" |
| Height | 25" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$72.00 /each
| SKU(s) | L-ED16-5W-BT |
| Color | Black |
| Wattage | 1W-5W |
| Voltage | 9V-17V AC & DC |
| Lumens | 25LM - 530LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 1-7/8" |
| Length | 1-7/8" |
| Height | 1-7/8" |
| Diameter | 1-7/8" |
| LED Life | 50.000 Hrs |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
