Mini Umbrella 18″ & 12" Path Light | Aluminum 12V T3
| SKU(s) | CL-660-BK-12 |
| Size | 12" | 18" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 4" |
| Length | 4" |
| Height | 12" / 18" |
| Diameter | 4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|

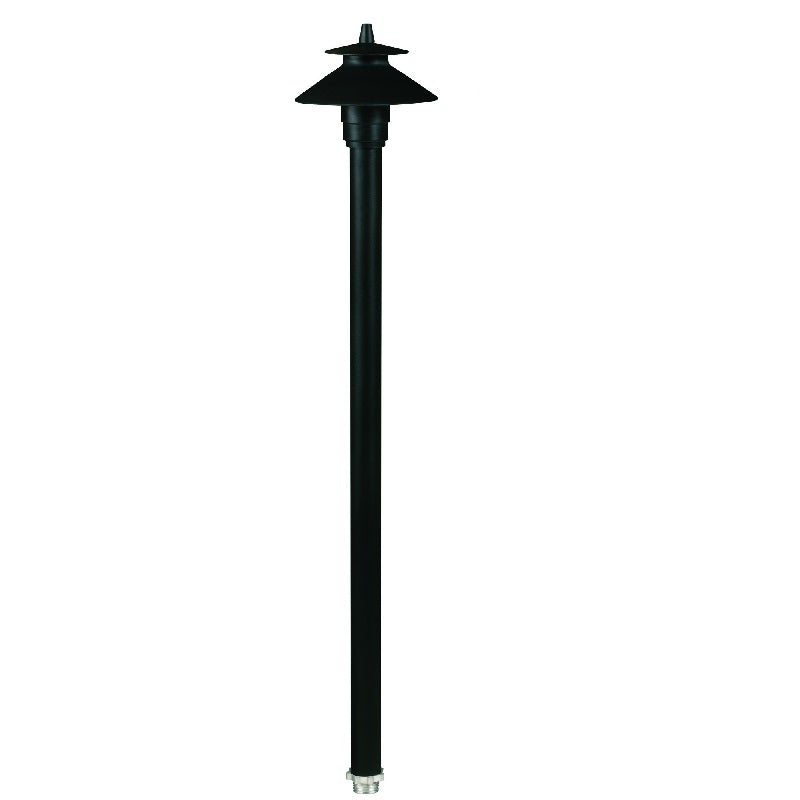

The Mini Umbrella 18″ Stem Path Light is designed to bring functional elegance to outdoor landscapes, ideal for illuminating walkways, gardens, patios, and decorative areas. Its compact umbrella design provides soft, glare-free lighting, making it a stylish addition to both residential and commercial landscapes.
Constructed from durable die-cast aluminum, this architectural-grade fixture ensures long-lasting performance in outdoor environments. The clear tempered glass lens with protective cover safeguards the lamp from sprinkler water while maintaining consistent illumination.
Equipped with a premium ceramic bi-pin socket, the fixture supports 12V T3 lamps (20W halogen max or LED equivalent) with simple, tool-free access for easy maintenance.
The Mini Umbrella Path Light comes prewired with a 3-ft 18-2 SPT2-W direct burial cord and includes a rugged injection-molded ground spike with ½″ NPT threaded female hub, ensuring secure mounting and fast installation.
✔ Compact mini umbrella design for subtle, elegant path lighting
✔ Die-cast aluminum housing with standard 18″ stem, available in Black or Bronze
✔ Clear tempered glass lens with sprinkler protection
✔ Ceramic bi-pin socket with easy tool-free lamp access
✔ Supports 12V T3 lamps (20W halogen max / LED equivalent)
✔ Prewired 3-ft direct burial cord for quick installation
✔ Includes plastic ground spike with ½″ NPT hub
✔ Voltage: 9V–17V | Requires 12V transformer
✔ 5-year warranty on housing against manufacturer defects
$59.45 /each
| SKU(s) | CL-640-BK-12 |
| Size | 12" | 18" |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 3-1/2" |
| Length | 3-1/2" |
| Height | 12" / 18" |
| Diameter | 3-1/2" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$99.00 /each
| SKU(s) | CL-717-BK |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black & Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Height | 18" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$81.00 /each
| SKU(s) | CL-539-BK |
| Color | Black | Bronze |
| Lamp | No-Lamp | 6W | 13W | 3.5W | 5W |
| Color | Black, Bronze |
| Wattage | 6W / 13W |
| Voltage | 12V |
| Lumens | 610LM / 1150LM |
| Color Temp | 2700K |
| Width | 4-3/4" |
| Height | 8-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$72.00 /each
| SKU(s) | L-EDT3-2W-BT |
| Color | Black |
| Wattage | 0.5W - 2W |
| Voltage | 9V-17V AC & DC |
| Lumens | 10LM - 120LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 3/4" |
| Length | 3/4" |
| Height | 1-1/4" |
| Diameter | 3/4" |
| LED Life | 50.000 Hrs |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
