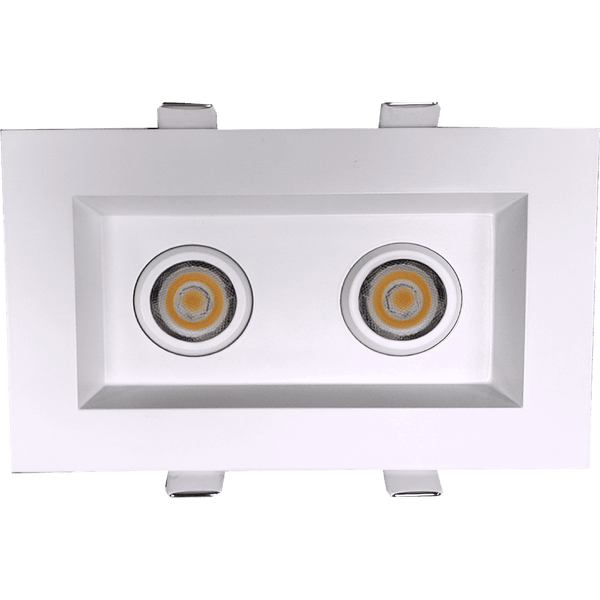

2" Double Head Regress Multiple Gimbal LED Downlight | Saturn Series | Selectable CCT | 10W

SKU: G-48314
UPC: 696304483146
Category: Goodlite, LED Downlights

Shipping / Return Policy

Product Description
Specifications

2 inch LED Double Gimbal Downlite Fixture,
Selectable Color Temperature, 27,30,35,41,50k
Includes: LED Luminaire, Driver, Instruction sheet.

General Information

Connection type: BX Connection
Life Hour: 50,000
Shape: Multiple
Diffuser: Clear
Watt: 10
Volts: 120-277V
Color (CCT): 27,30,35,41,50K
TEMP: Selectable CCT
Cutout: 2.70-5.12"
OD (Outside dimensions): 3.99-6.39"
Height: 2.30"

Technical Information

Lumens: 900
CRI: >90
Each Head: 450 LM
Lumen Effeciency: 80
Classification: ETL Listed
Output Current: 230mA
Beam Spread Deg: 40
Environment: Damp Location
Tilt Angle: 30°

Product Information

Product Code: G-48314
Master pack: 18
Warranty: 3 Years

SKU(s)	G-48314
UPC	696304483146
Color	White
Wattage	10W
Voltage	120-277V
Lumens	900Lm
Color Temp	Selectable CCT
Efficacy	80Lm/Watt
Width	3.99-6.39"
Length	2.70-5.12"
Height	2.30"
LED Life	50.000 Hours
Certs
View Spec Sheet
