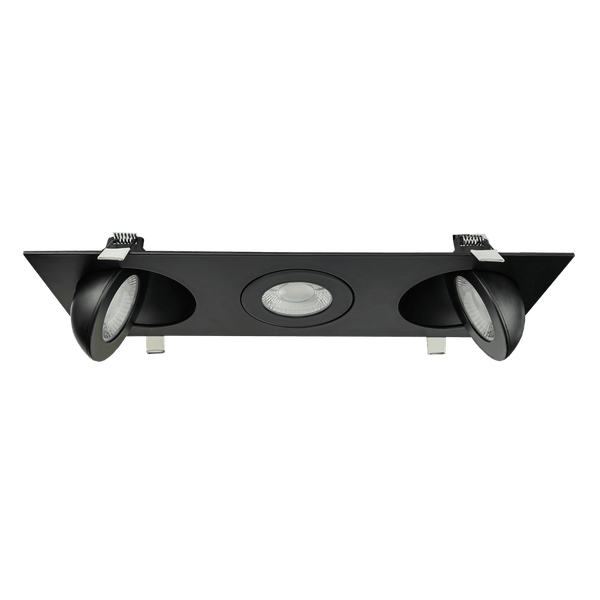

4" Square Triple Head Floating Gimbal LED Downlight | Flarion Series | Selectable CCT | 36W

$228.65 / ea

Quantity of Items:

SKU: G-01323
UPC: 024441013238
Category: Goodlite, LED Downlights

Shipping / Return Policy

Product Description
Specifications

FLARION 4 Inch Multiple Triple Head Gimbal Luminaire, Selectable Color Temperature, includes: LED Luminaire, Driver, Instruction sheet.

General Information

Connection type: BX Connection
Life Hour: 50,000
Shape: Multiple
Watt: 36W
Volts: 120-277V
Color (CCT): 27, 30, 35, 41, 50K
TEMP: Selectable CCT
Cutout: 4.25” X 13.85” in
OD (Outside dimensions): 4.92” X 14.76 in
Height: 1.79 in

Technical Information

Lumens: 3600
CRI: 90>
Each Head: 1200
Lumen Effeciency: 78.57
Classification: ETL, TITLE 24
Output Current: 900mA
Beam Spread Deg: 40 (Default)
Environment: Wet Location
Tilt Angle: 90°
Rotating: 360°
Dimmable Type: Triac Or 0-10 Dimming

Product Information

Product Code: G-01223 & G-01323
Master pack: 12
Warranty: 3 Years

SKU(s)	G-01323
UPC	024441013238
Color	Black \| White
Color	Black & White
Wattage	36W
Voltage	120-277V
Lumens	3600Lm
Color Temp	Selectable CCT
Efficacy	78.57Lm/Watt
Width	4.92” X 14.76 in
Length	4.25” X 13.85” in
Height	1.79 in
LED Life	50.000 Hours
Certs
View Spec Sheet
