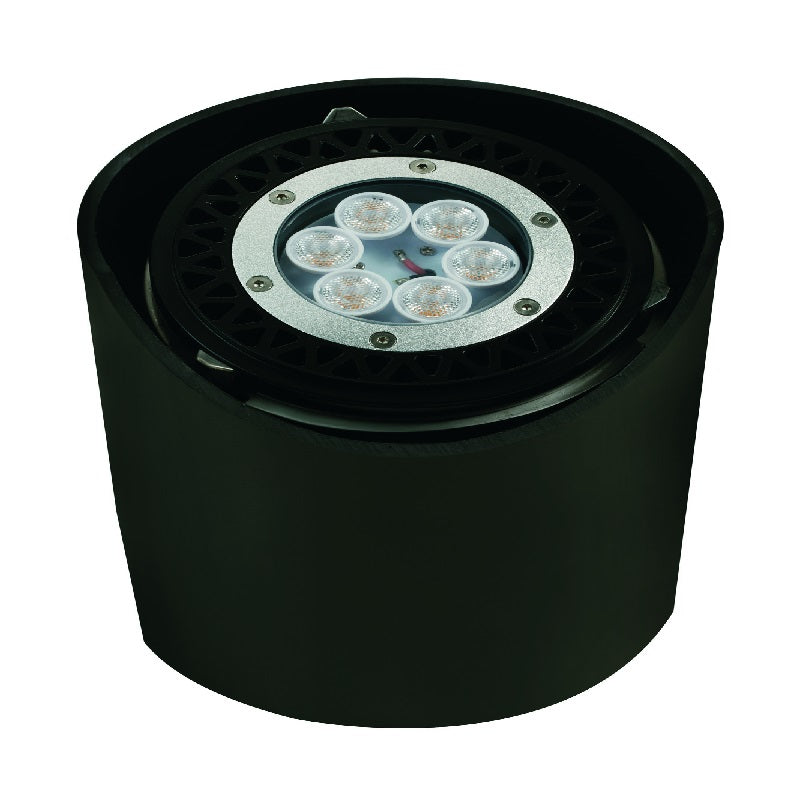

Adjustable PAR36 Well Light – PVC Sleeve | In-Ground Flood Light
| SKU(s) | CL-336 |
| Color | Stainless Steel |
| Lamp | No-Lamp | 6W | 13W |
| Color | Stainless steel |
| Wattage | 6W / 13W |
| Voltage | 12V |
| Lumens | 610LM / 1150LM |
| Color Temp | 2700K & 3000K |
| Width | 5-1/2" |
| Length | 5-1/2" |
| Height | 8" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
Illuminate your landscape with high-performance precision using the Adjustable PAR36 Stainless Steel Well Light with a stainless steel housing and PVC sleeve. Designed for architectural-grade outdoor applications, this in-ground flood light combines sleek durability with flexible functionality—ideal for uplighting trees, structures, signs, or expansive garden areas.
Crafted with a corrosion-resistant stainless steel body, this adjustable fixture is housed within a reversible PVC sleeve that features both flat and angle-cut ends to accommodate a variety of installation needs—whether direct burial or concrete encasement.
This well light supports 12V PAR-36 lamps (50W max, not included) and features a 25° adjustable screw-in terminal socket for optimal beam direction. It comes prewired with a 5-foot 18-2 SPT2-W direct burial cord, ensuring a reliable and secure connection. Optional connectors such as the CX-839 universal connector or CX-854 silicone-filled wire nut are available separately for easy installation.
A clear, heat-resistant tempered glass lens protects the lamp without diminishing brightness. This fixture operates within a 9–17V range when using LED lamps and requires a remote 12V transformer (sold separately).
Backed by a limited lifetime warranty on the stainless steel housing, this fixture is built to perform in demanding outdoor environments—combining form, function, and longevity.
Fixture Type: Adjustable PAR36 Flood Well Light
Material: Stainless Steel
Finish: Stainless Steel with PVC Sleeve (reversible: flat & angle-cut ends)
Lens: Clear, tempered, and heat-resistant glass
Socket: Adjustable screw-in terminal with 25° tilt
Lamp Type: 12V PAR-36, 50W max (not included)
Wiring: 5-ft 18-2 SPT2-W direct burial cord (connector sold separately)
Mounting: PVC sleeve for in-ground or concrete encasement installation
Voltage Range: 9–17V with LED lamp
Transformer Required: Yes, 12V remote transformer
Grade: Architectural
Warranty: Limited Lifetime (housing only)
Uplighting large landscape elements
Accent lighting for signs, monuments, or facades
Commercial and residential flood lighting
Coastal or high-moisture environments (stainless steel durability)
$90.00 /each
| SKU(s) | CL-MINI-BT-BK |
| Color | Black |
| Color | Black |
| Wattage | 1-4W |
| Voltage | 10-15V |
| Lumens | 15LM - 250LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7-3/4" |
| Height | 9.5" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$144.00 /each
| SKU(s) | CL-450-BT-BK |
| Color | Black |
| Color | Black |
| Wattage | 1-4W |
| Voltage | 10-15V |
| Lumens | 15LM - 250LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7-3/4" |
| Height | 3" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$146.75 /each
| SKU(s) | CL-723-BK-18 |
| Size | 18" | 24" |
| Color | Black | Bronze | Silver |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Bronze & Silver |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470 LM |
| Color Temp | 2700K / 3000K |
| Width | 2-3/8" |
| Length | 2-3/8" |
| Height | 18" & 24" |
| Diameter | 2-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$63.95 /each
| SKU(s) | CL-632-VG |
| Color | Green |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Green |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 5-3/4" |
| Length | 5-3/4" |
| Height | 27" |
| Diameter | 5-3/4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
