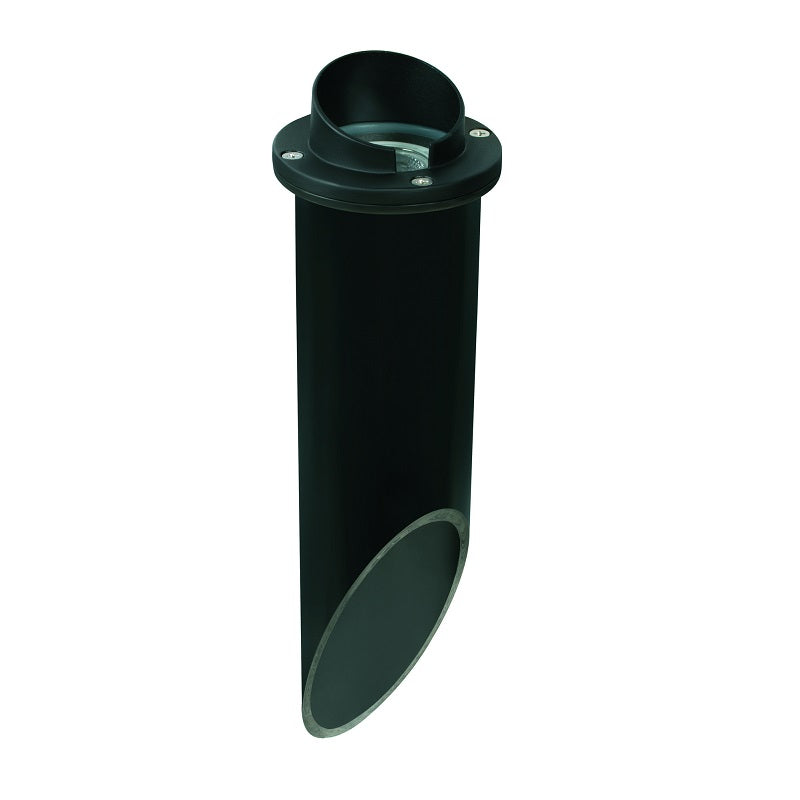

Hooded Well Light with PVC Sleeve | MR-16 In-Ground
| SKU(s) | CL-302-BK |
| Color | Black | Natural Brass |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Natural Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270 LM / 470 LM |
| Color Temp | 2700K / 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 15-3/4" |
| Diameter | 3-7/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SJT-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Hooded Well Light with PVC Sleeve is a reliable and durable in-ground lighting solution designed for accenting landscapes, pathways, trees, and architectural features. Featuring a protective hooded design, this fixture reduces glare while directing light exactly where it’s needed.
Built with die-cast aluminum, composite, or natural brass housings, this well light combines strength, style, and versatility. The housing is secured with tension clips inside a PVC sleeve, providing firm support for both direct burial or concrete encasement installations.
A clear, tempered, heat-resistant glass lens ensures maximum durability while protecting the MR-16 lamp. The top-grade ceramic bi-pin socket with retention clip keeps the lamp secure and stable in any environment.
✔ Available in Aluminum, Composite, or Natural Brass housings
✔ Finishes: Black or Natural Brass
✔ PVC Sleeve included for in-ground or concrete encasement mounting
✔ Hooded design reduces glare and focuses illumination
✔ Compatible with 12V MR-16 lamps (LED or halogen, up to 50W)
✔ Prewired with 3-ft 18-2 SJT-W direct burial cord (connectors sold separately)
✔ Voltage range 9V–17V | Requires remote 12V transformer
✔ One-year warranty against manufacturer defects
$100.85 /each
| SKU(s) | CL-395-BK |
| Color | Black | Bronze |
| Lamp | 2.5W |
| Color | Black & Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 250LM |
| Color Temp | 3000K |
| Width | 8-3/4" |
| Height | 2-1/2" |
| LED Life | 30.000 Hrs |
| Wire | 25ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$61.25 /each
| SKU(s) | CL-638-BK |
| Color | Black | Bronze |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Black, Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240 LM / 250 LM |
| Color Temp | 2700K / 3000K |
| Width | 4" |
| Length | 4" |
| Height | 21" |
| Diameter | 4" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$100.85 /each
| SKU(s) | CL-394-BK |
| Color | Black | Bronze |
| Lamp | 2.5W |
| Color | Black & Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 250LM |
| Color Temp | 3000K |
| Width | 8-3/4" |
| Height | 2-1/2" |
| LED Life | 30.000 Hrs |
| Wire | 25ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$81.00 /each
| SKU(s) | CL-539-BK |
| Color | Black | Bronze |
| Lamp | No-Lamp | 6W | 13W | 3.5W | 5W |
| Color | Black, Bronze |
| Wattage | 6W / 13W |
| Voltage | 12V |
| Lumens | 610LM / 1150LM |
| Color Temp | 2700K |
| Width | 4-3/4" |
| Height | 8-3/8" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
