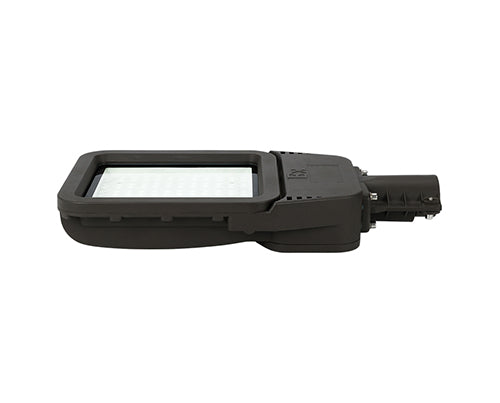

LED Explosion Proof Light | Class I Division II | 5000K | Dimmable | 100-277V | EPC STA Series | 100, 150, 200 & 250W

The STA Series Explosion Proof LED Street Light is engineered for factory, roadway, and industrial lighting in hazardous environments where safety, reliability, and performance are critical. Designed for petroleum extraction, storage facilities, chemical plants, military bases, and high-temperature sites, this luminaire offers powerful illumination, excellent heat dissipation, and maintenance-free operation even under the harshest conditions.

Constructed with ADC12 aluminum housing and toughened explosion-proof glass, the STA Series ensures long-term durability and resistance to corrosion, vibration, and extreme temperatures. Its IP66/IP67 waterproof rating, IK10 impact resistance, and ATEX/IECEx certifications make it a trusted choice for both indoor and outdoor hazardous area lighting.

The STA Series provides superior energy efficiency (120–140 lm/W), a long lifespan of up to 100,000 hours, and multiple color temperature options (2700K–7000K). Designed for optimal heat transfer, it delivers consistent, flicker-free light with linear drive circuits suitable for machine vision and precision industrial applications.

⚙️ Key Features

• Explosion Proof Construction: Safe for use in Class I, II, and III hazardous environments

• Certified Safe: Complies with ATEX, IECEx, and UL844 standards

• Rugged Build: ADC12 aluminum housing with tempered explosion-proof glass

• High Efficiency: Delivers 120–140 lumens per watt for optimal energy savings

• Long Lifespan: Up to 100,000 hours of maintenance-free operation

• Flicker-Free Lighting: Linear drive circuit ensures no high-frequency noise or flicker

• Adjustable Installation: Easy angle adjustment for precise light distribution

• Operating Temperature: -40°C to +60°C for extreme industrial conditions

• High Protection Ratings: IP66/IP67 (dust and water resistant), IK10 (impact resistant)

• Optics: Type III beam pattern with angles from 10° to 120°

• Color Temperature Range: 2700K–7000K for diverse environments

• Color Rendering Index (CRI): >70 for clear and natural illumination

• Voltage Options: AC100–305V or AC180–525V for flexible installations

• Dimming: Compatible with 0–10V dimming systems

• Certifications: CE, ATEX, IECEx, UL844

🏭 Applications

• Petroleum extraction and storage facilities

• Chemical and pharmaceutical plants

• Steel mills and smelters

• Foundries and metal workshops

• Military installations and bunkers

• Power generation and transformer stations

• Industrial manufacturing sites

• Outdoor hazardous zones and process areas

• Marine and offshore platforms

• High-temperature facilities and tunnels

🛡️ Certifications & Ratings

ATEX / IECEx Certification:

• II2 G Ex eb mb IIC T5/T6 Gb

• II2 D Ex tb op is IIIC T95/80°C Db

UL844 (North American) Certification:

• Class I, Division 2, Groups A, B, C, D

• Class II, Division 1, Groups E, F, G

• Class II, Division 2, Groups F, G

• Class III

Protection Ratings:

• Ingress Protection: IP66 / IP67

• Impact Rating: IK10

• Temperature Class: T5/T6

• Housing Material: ADC12 Aluminum Alloy + Tempered Glass

• Environmental Resistance: Waterproof, dustproof, and corrosion-resistant

🔋 Warranty

• 5-Year limited warranty from date of purchase

• Covers manufacturing defects and material failures

• Excludes misuse, improper installation, and wear from normal operation
