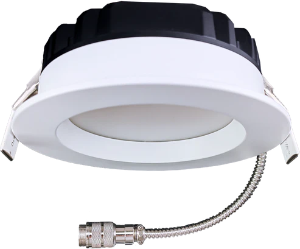

The G-98523 Commercial 5" Round Regress LED Fixture is a high-performance recessed downlight designed for professional commercial, retail, and institutional applications. Featuring a trimmed regress profile, this fixture reduces glare and delivers a smooth, uniform light output through its frosted diffuser and wide 100° beam spread. Its selectable 5CCT technology allows installers to choose between 2700K, 3000K, 3500K, 4100K, and 5000K, ensuring optimal lighting for any environment.

Delivering 2000 or 3000 lumens, depending on the selected wattage (23W IC-rated or 32W non-IC), the fixture provides excellent efficiency and color accuracy with a CRI above 90. Engineered for demanding commercial installations, it supports Triac or 0–10V dimming, operates on 120–277V, and is Chicago plenum rated for safety-critical environments.

Constructed with a clean white trimmed finish, the 5-inch round housing installs easily with clip-in mounting and features compact dimensions (2.38" height) ideal for shallow plenums. Backed by ETL, Title 24, and Energy Star certifications and a 5-year warranty, the G-98523 offers long-lasting reliability and superior performance for large-scale lighting projects.

📊 TECHNICAL SPECIFICATIONS

General

• Product Code: G-98523

• Model: RS5/23W-IC/32W-NIC/RD/LED/5CCT/BX

• Shape: Round

• Style: Trimmed

• Size: 5"

• Finish: White

• Diffuser: Frosted (glare control)

• Cutout: 5.20"

• Outside Diameter: 5.94"

• Height: 2.38"

• Mounting: Clip-in

• Master Pack: 12

• Barcode: 024431985231

Lighting Performance

• CCT Options: Selectable 5CCT (2700K / 3000K / 3500K / 4100K / 5000K)

• Lumen Output: 2000 lm (23W) / 3000 lm (32W)

• CRI: >90

• Beam Angle: 100°

• Light Distribution: Wide, uniform, low-glare

Electrical

• Wattage: 23W (IC rated) / 32W (non-IC)

• Voltage: 120–277V

• Output Current: 755mA / 540mA

• Dimming: Triac or 0–10V

• Plenum Rating: Chicago Plenum

Compliance & Ratings

• Location Rating: Wet Location

• IC Rating: IC only at 23W

• Certifications: ETL, Title 24, Energy Star

• Warranty: 5 Years
