1.5 Inch Flexible Trimless LED Channel Aluminum | 8FT | Goodlite G-96229

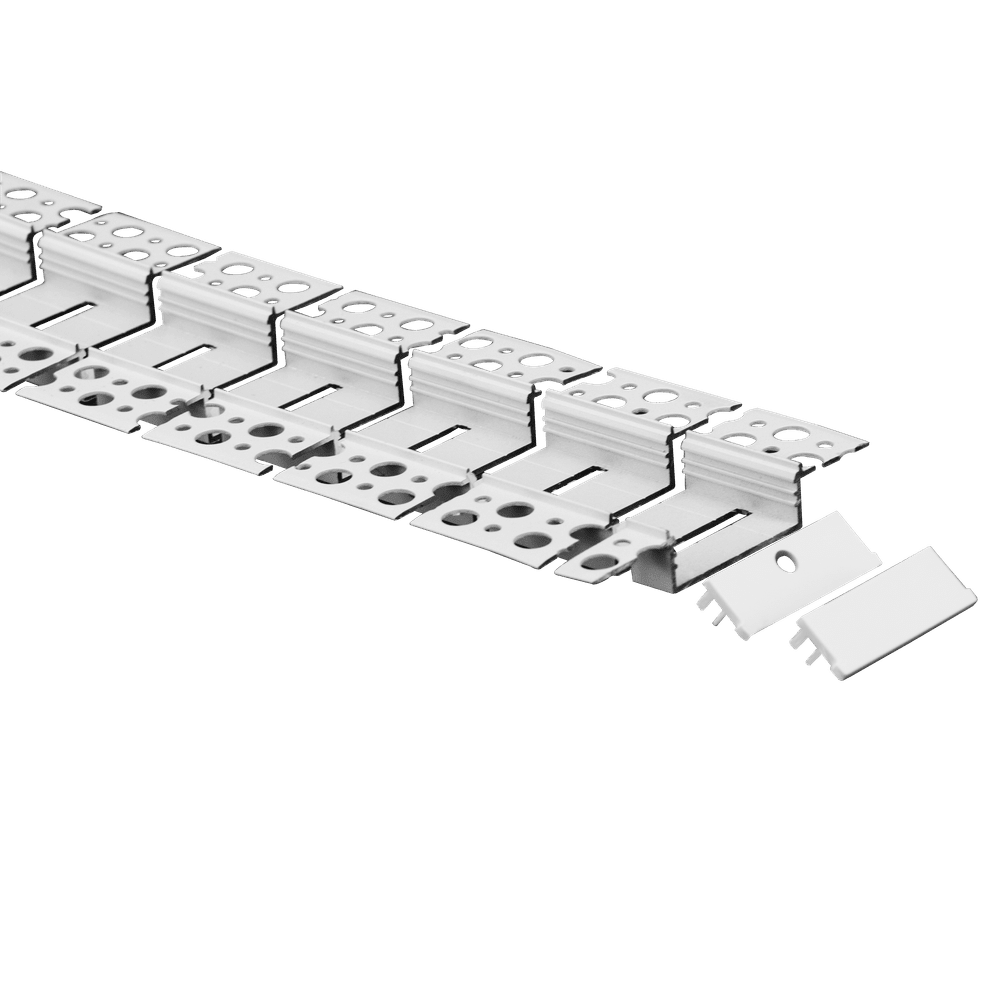

The 1.5" Flexible Trimless LED Channel is a premium architectural mounting solution designed for seamless, curved lighting installations using LED tape light. Engineered for drywall and plaster-in applications, this trimless aluminum channel allows the light source to sit perfectly flush with the ceiling or wall surface, delivering a clean, modern finish with no visible trims.

With both horizontal and vertical flexibility, this channel is ideal for creative lighting designs, including curved coves, waves, arches, and custom architectural features. Supporting LED tape lights up to 35mm wide, it accommodates high-output COB and SMD tape light systems. The durable aluminum construction improves heat dissipation, extending LED lifespan while maintaining consistent light performance.

Key Features

• Trimless design for seamless drywall integration

• Flexible aluminum profile for curved installations

• Supports LED tape lights up to 35mm wide

• Ideal for architectural, cove, and accent lighting

• Enhances heat dissipation for longer LED life

• Pre-drilled mounting holes for faster installation

• Compatible with high-output COB and standard LED tape lights

Technical Specifications

General Specs

• Product Code: G-96229

• Description: CH/1.5/TLS/FLEX/8

• Profile Type: Flexible, Trimless

• Size: 1.5 Inch

• Finish: Silver

• Maximum Tape Width: 35mm

Dimensions

• Length: 96"

• Outside Diameter (OD): 3.13"

• Width: 1.40"

• Height: 0.54"

Flexibility

• Horizontal Flexure: 3.23° per inch

• Vertical Flexure: 6.47° per inch

Installation

• Pre-Drilled Holes: Every 23.5"

Packaging Information

• Inner Pack: 2

• Master Pack: 18

• Barcode: 024431962294

Applications

• Trimless cove lighting

• Curved ceiling and wall details

• Architectural accent lighting

• Hospitality and retail design

• High-end residential interiors
