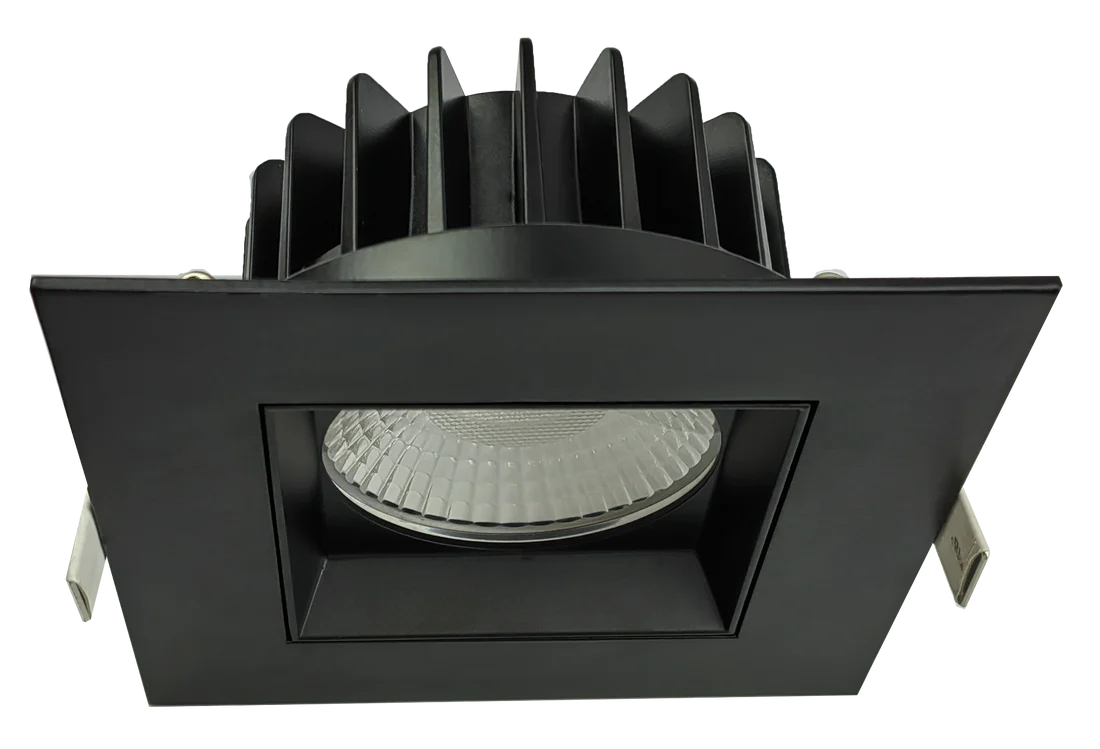

The 5-inch Regress Square LED Luminaire (G-20218 & G-20196) is a high-performance architectural downlight designed for modern residential, commercial, and hospitality applications. Its clean square trimmed profile and deeply regressed clear lens provide premium glare control and a refined, architectural aesthetic. Available in white and black, this luminaire integrates effortlessly into new construction or retrofit ceilings.

This versatile fixture features three wattage levels (23W / 30W / 40W) and five selectable CCT options (2700K–5000K), allowing specifiers and installers to fine-tune light output and color temperature on-site. Delivering 2000 / 2600 / 3500 lumens with >90 CRI, it ensures bright, accurate light for both general and task illumination.

The 5” cutout, 2.70” height, and clip-in mounting system make installation fast and secure. Fully compatible with Triac and 0–10V dimmers, the luminaire supports universal 120–277V input. It is IC-rated at 23W, suitable for insulated ceilings, and wet-location rated, making it ideal for bathrooms, exterior soffits, kitchens, and commercial applications.

Safety and performance compliance includes ETL listing, Title 24 certification, and FT6 plenum rating, ensuring dependable operation in demanding environments. Combining adjustability, performance, and clean geometry, the 5” Regress Square Luminaire is an excellent solution for design-focused lighting projects.

🔧 Technical Specifications (SEO-Friendly)

General Specs

• Product Codes:

  • White: G-20196

  • Black: G-20218

• Model: R5/40W/WS3/SQ/LED/5CCT/BK

• Shape: Square

• Style: Trimmed

• Size: 5 Inch

• Finish Options: White or Black

• Diffuser: Clear

• Number of Lights: 1

• Cutout: 5.00"

• Outside Dimensions (OD): 5.71"

• Height: 2.70"

• Mounting: Clip-in

• Master Pack: 18

• Barcode: 749354202189

Light Specs

• CCT: 5 Selectable

• Color Temperatures: 2700K / 3000K / 3500K / 4100K / 5000K

• Lumens: 2000 / 2600 / 3500 lm

• CRI: >90

• Beam Spread: 60°

Electrical Specs

• Wattage Options: 23W / 30W / 40W

• Voltage: 120–277V

• Output Current: 980 / 750 / 550 mA

• Dimming: Triac or 0–10V

• IC Rating: IC-rated only at 23W

Compliance

• Location Rating: Wet Location

• Plenum Rating: FT6

• Warranty: 3 Years

• Certifications: ETL, Title 24 Listed
