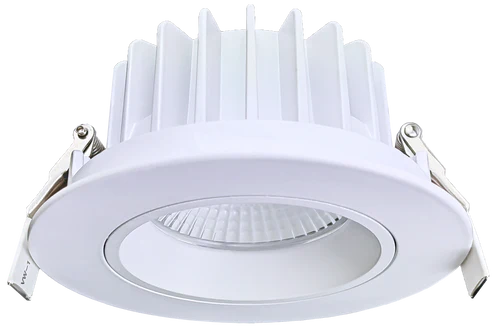

The 5-inch Regress Round LED Luminaire (G-20216 & G-20195) delivers high-performance architectural lighting with a modern trimmed design available in both white and black finishes. Featuring a deeply regressed clear lens, this fixture minimizes glare while enhancing visual comfort, making it ideal for residential, commercial, retail, and hospitality spaces.

Engineered for flexibility, it offers three wattage settings (23W / 30W / 40W) and five selectable color temperatures (2700K–5000K), allowing seamless adjustment to task lighting, ambient lighting, or high-lumen applications. Producing 2000 / 2600 / 3500 lumens with >90 CRI, this luminaire delivers accurate color rendering and consistent illumination.

With a compact 2.70" height, a 5" cutout, and an easy clip-in mounting system, installation is simple in both retrofit and new construction applications. The unit supports Triac and 0–10V dimming, operates across 120–277V, and is IC-rated at 23W, making it suitable for insulated ceilings.

Certified for wet locations, FT6 plenum environments, and compliant with ETL and Title 24, this luminaire is built for durability, safety, and long-term lighting performance.

Available in White (G-20195) and Black (G-20216), the 5” Regress Round Luminaire meets the demands of modern architectural lighting design with premium aesthetics and adaptable output.

🔧 Technical Specifications (SEO-Friendly List)

General Specs

• Product Codes:

  • White: G-20195

  • Black: G-20216

• Model: R5/40W/WS3/R/LED/5CCT

• Shape: Round

• Style: Trimmed

• Size: 5 Inch

• Finish Options: White or Black

• Diffuser: Clear

• Number of Lights: 1

• Cutout: 5.00"

• Outside Dimensions (OD): 5.71"

• Height: 2.70"

• Mounting: Clip-in

• Master Pack: 18

• Barcode: 749354202165

Light Specs

• CCT: 5 Selectable

• Color Temperatures: 2700K / 3000K / 3500K / 4100K / 5000K

• Lumens: 2000 / 2600 / 3500 lm

• CRI: >90

• Beam Angle: 60°

Electrical Specs

• Wattage: 23W / 30W / 40W

• Voltage: 120–277V

• Output Current: 980 / 750 / 550 mA

• Dimming: Triac or 0–10V Dimming

• IC Rating: IC-rated only at 23W

Compliance

• Location Rating: Wet Location

• Plenum Rating: FT6

• Warranty: 3 Years

• Certifications: ETL, Title 24 Listed
