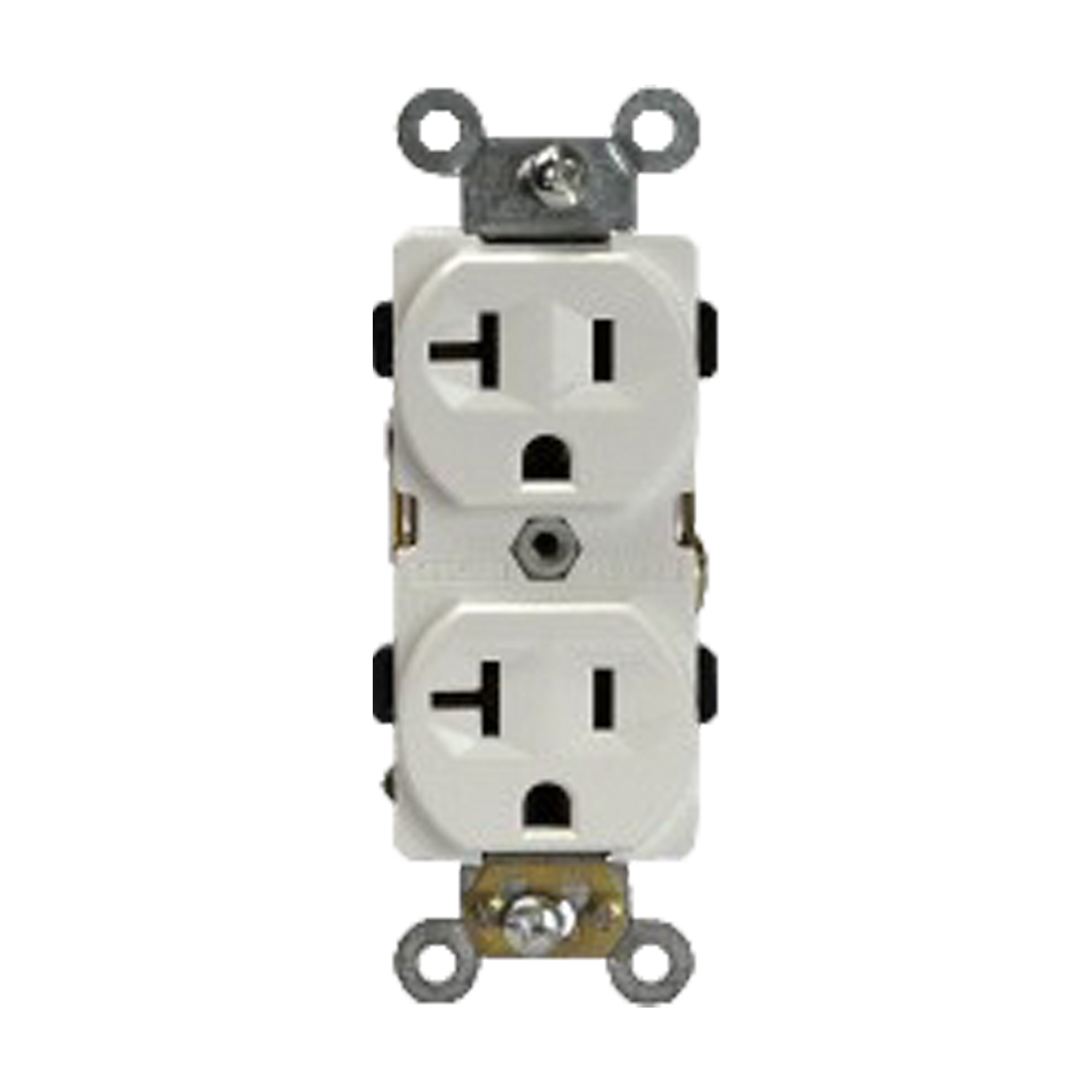

20 Amp Duplex Receptacle | 125V | 5-20R | Commercial/Industrial Grade | Enerlites 62080

The ENERLITES 62080 Industrial Grade 20A Duplex Receptacle (5-20R) is designed for high-performance industrial and commercial applications, providing durable and reliable electrical connections. Constructed from impact-resistant polycarbonate thermoplastic, this receptacle features a smooth, easy-to-clean surface and robust design to withstand heavy use in demanding environments.

Equipped with a self-grounding clip and back-wired terminals, it allows for quick and safe installation. The break-off tabs provide easy conversion to a two-circuit setup, while side barriers ensure insulation and isolation for hospital-grade models. Rated for use with 10AWG to 14AWG wires, this receptacle delivers long-lasting performance under industrial conditions.

Technical Specifications:

• Model Number: 62080

• Type: Industrial Grade Duplex Receptacle

• Amperage: 20A

• NEMA Configuration: 5-20R

• Material: Polycarbonate thermoplastic

• Grounding: Self-grounding clip with brass strap

• Wiring: Back wired, compatible with 10AWG to 14AWG wires

• Special Features: Break-off tabs for two-circuit conversion; side barriers for insulation and isolation (hospital-grade)

• Operating Temperature: -104ºF to 167ºF

• Flammability Rating: UL94 V2

• Warranty: 2-year manufacturer warranty

• Certification: UL Listed

Key Features:

• Industrial-grade construction for maximum durability

• Impact-resistant thermoplastic body and cover

• Back wiring with break-off tabs for flexible two-circuit conversion

• Self-grounding clip and brass strap for secure grounding

• Side barriers provide insulation and isolation in hospital-grade units

• Smooth surface for easy cleaning and maintenance

• UL listed for safety and reliability
