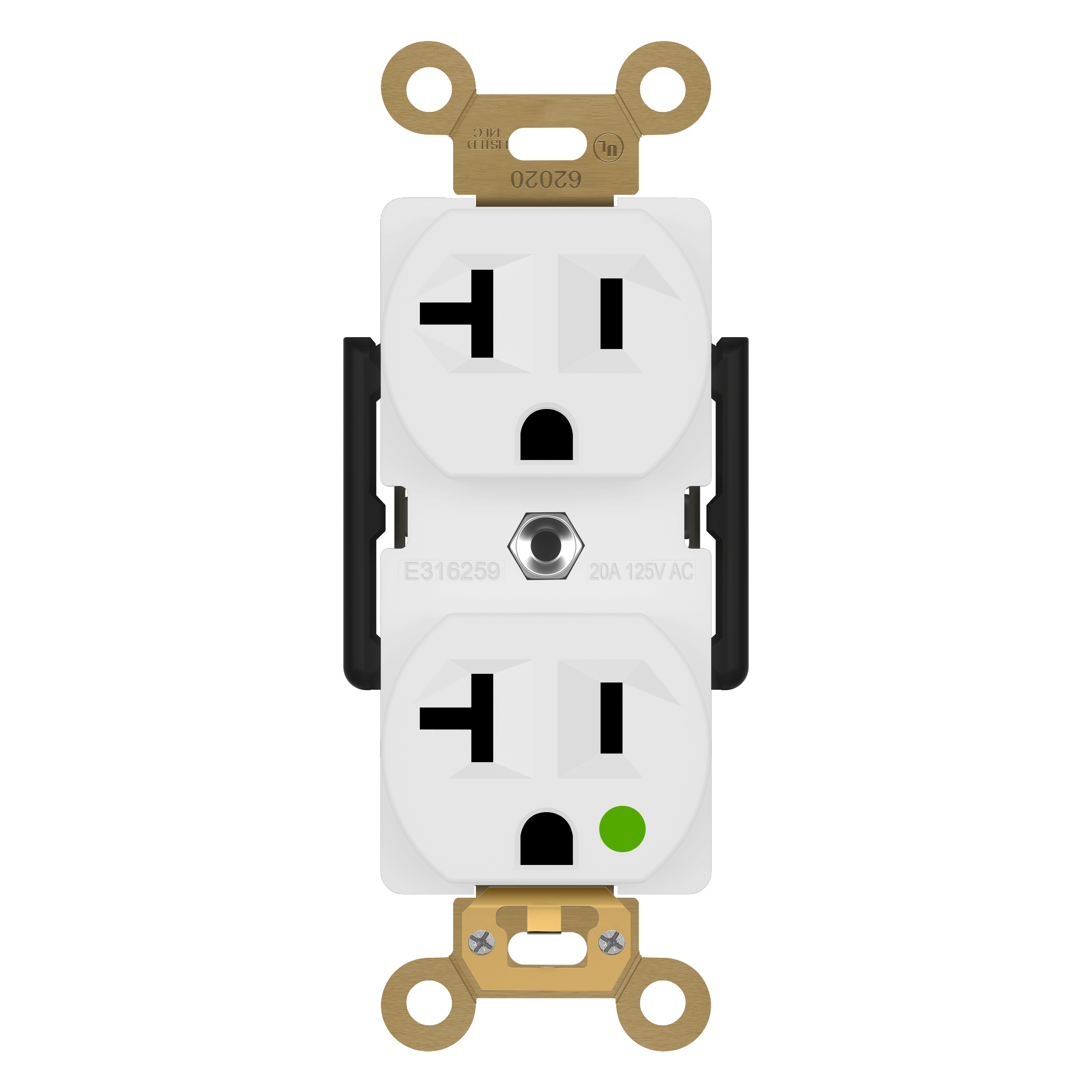

20 Amp Duplex Receptacle | 125V | 5-20R | Hospital Grade | Enerlite 62020

The Hospital Grade 20A Receptacle 5-20R (Model 62020) is engineered for critical healthcare and medical environments where power reliability, patient safety, and long-term durability are essential. Built to meet UL Hospital Grade requirements, this receptacle exceeds standard electrical performance by delivering superior grounding reliability, assembly integrity, and mechanical strength.

Designed with a self-grounding clip and a brass ground termination strap, this hospital-grade outlet ensures a secure electrical path and dependable performance in high-use areas. The impact-resistant thermoplastic body and cover provide long-lasting resilience against daily wear, abuse, and cleaning chemicals.

This receptacle features back-wiring capability for faster, more secure installation, along with break-off tabs that allow easy two-circuit conversion. Additional side wire-terminal barriers provide enhanced insulation and isolation, meeting strict hospital safety standards. Suitable for 10–14 AWG copper conductors, the 62020 model is ideal for operating rooms, patient rooms, laboratories, clinics, and commercial healthcare facilities.

Technical Specifications

Product Name: Hospital Grade 20A Receptacle, 5-20R
Model Number: 62020

Electrical Rating:
• 20 Amp, 125 Volt AC

NEMA Configuration:
• 5-20R

Material:
• Impact-resistant thermoplastic body and cover

Wiring Method:
• Back wired

Grounding:
• Self-grounding clip
• Brass strap ground termination

Wire Compatibility:
• Accepts 10 AWG to 14 AWG copper conductors

Performance Features:
• Break-off tabs for two-circuit conversion
• Side terminal safety barriers for insulation and isolation

Environmental Ratings:
• Operating Temperature: -104°F to 167°F (continuous)
• Flammability Rating: UL94 V2

Certifications:
• UL Listed
• UL Hospital Grade Compliant

Warranty:
• 2-Year Limited Warranty

Key Features

• UL Hospital Grade certified for healthcare use

• Self-grounding clip for reliable grounding

• Brass strap ground termination

• Impact-resistant thermoplastic construction

• Back-wired design for secure installation

• Break-off tabs for dual-circuit applications

• Safety side barriers for terminal protection

• Wide operating temperature range

• UL94 V2 flame rating
