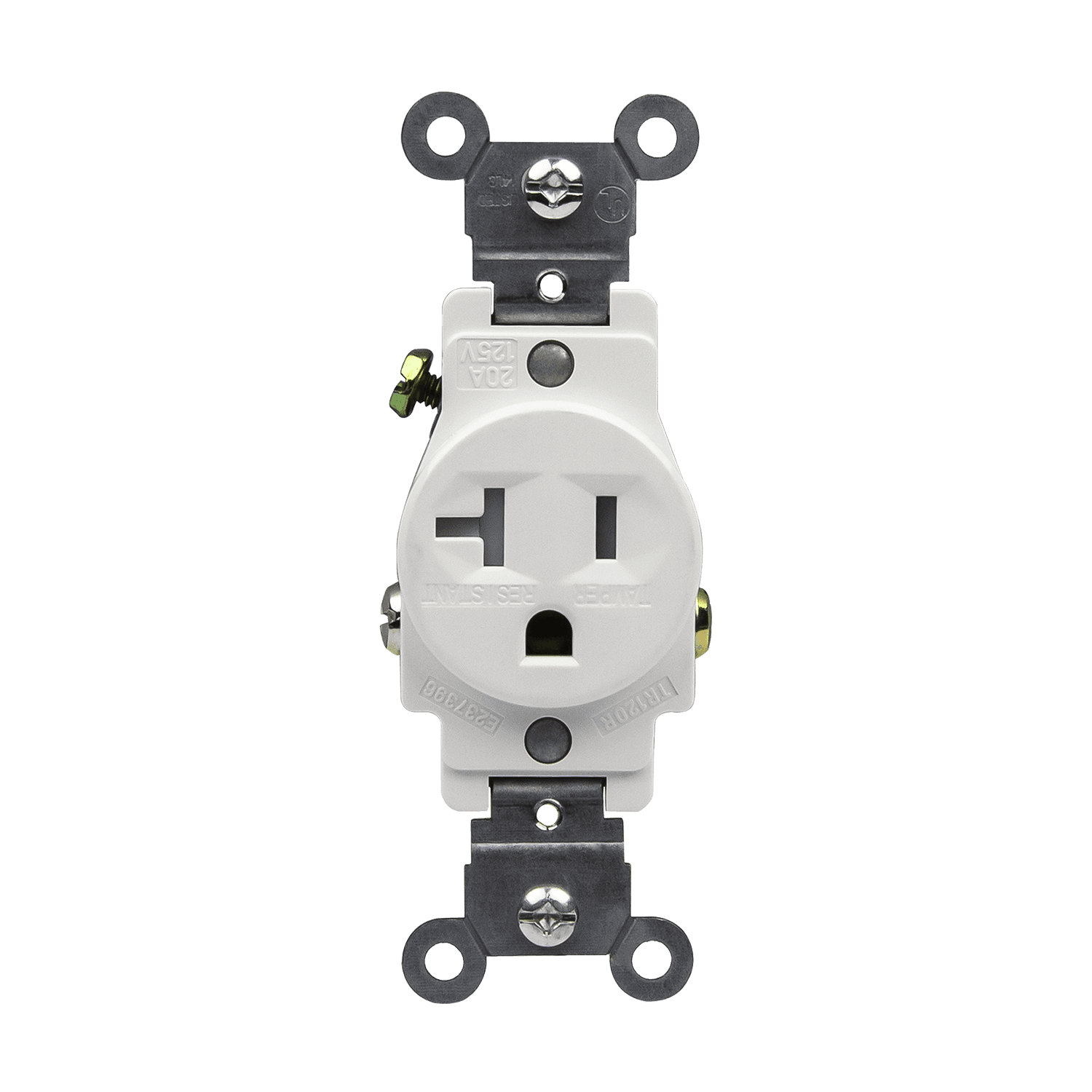

20 Amp Single Receptacle | Tamper Resistant | 125V | Commercial Grade | Enerlites 61200-TR

The Commercial Grade 20A Tamper-Resistant Single Receptacle (61200-TR) is engineered to deliver reliable performance, enhanced safety, and long service life in demanding residential and commercial environments. Designed with tamper-resistant internal shutters, this receptacle helps prevent accidental electrical shock by blocking the insertion of foreign objects—making it ideal for schools, offices, healthcare facilities, and code-compliant residential installations.

Constructed from high-impact resistant thermoplastic, the 61200-TR features a shallow body design that provides maximum wiring space, simplifying installation in standard wall boxes. The receptacle supports back and side wiring, with terminal screws backed out and ready for wiring to reduce installation time. Break-off plaster ears and tabs allow for precise alignment and easy two-circuit conversion when required.

This device is UL listed, rated UL94 V2 for flammability, and complies with demanding operating conditions, withstanding temperatures from -104°F to 167°F. Built for durability and safety, it is backed by a 2-year manufacturer warranty.

Technical Specifications

• Model Number: 61200-TR

• Rating: 20 Amp, Commercial Grade

• Type: Single Receptacle, Tamper-Resistant

• Material: High-impact thermoplastic

• Wiring: Back and side wired

• Design: Shallow body for maximum wiring room

• Flammability Rating: UL94, V2

• Operating Temperature: -104°F to 167°F (maximum continuous)

• Certifications: UL Listed

• Warranty: 2 Years

Key Features

• Tamper-resistant shutters enhance child and occupant safety

• Commercial-grade construction for long-term durability

• Back and side wiring options for flexible installation

• Break-off tabs and plaster ears for easy alignment and circuit conversion

• Combination Slot/Phillips head screws for faster installation

• Ideal for residential, commercial, and institutional applications
