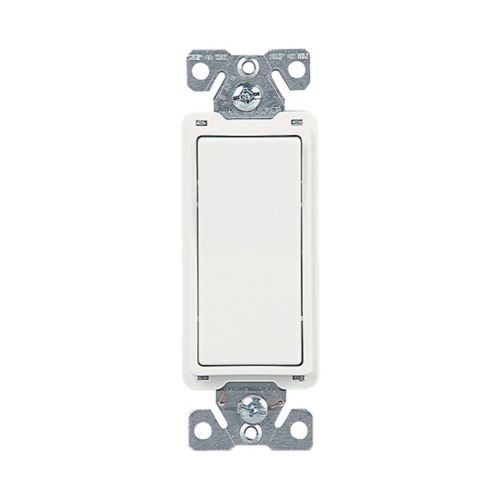

15 Amp 4-Way Decorator Switch | 120/277V | Standard Grade
The Eaton 7504W-BOX is a standard-grade decorator four-way switch engineered for dependable lighting and motor control in residential and commercial environments. Rated at 15 amps and 120/277 volts, it allows control of a single lighting circuit from three or more locations—ideal for long hallways, staircases, or large open areas.
Constructed from impact-resistant thermoplastic, the Eaton 7504W-BOX provides long-term durability and a clean, modern look. The decorator-style rocker actuator enhances aesthetics and user comfort, while the flush-mount design integrates seamlessly with standard wall boxes.
The back and push wiring terminals support #14–12 AWG conductors, offering quick and secure connections during installation. Supporting a broad range of load types—including LED, CFL, halogen, incandescent, fluorescent, ELV, MLV, fan, and motor control—this versatile four-way switch is built for high performance and reliability.
Four-way decorator switch for multi-location lighting control
15A, 120/277V rated for both residential and commercial applications
Compatible with LED, CFL, incandescent, fluorescent, halogen, fan, and motor loads
Back and push-in wiring terminals for fast installation (#14–12 AWG)
Impact-resistant thermoplastic body for extended durability
Modern decorator design matches standard wallplates
Maintained ON/OFF operation for reliable switching
Flush mount for a seamless wall finish
cULus Listed and RoHS Compliant for safety and environmental standards
Packaged in box (7504W-BOX) for retail or contractor convenience
| Specification | Details |
|---|---|
| Product Name | Eaton Standard Grade Decorator Switch |
| Catalog Number | 7504W-BOX |
| UPC | 032664643835 |
| Device Type | Switch |
| Type | Decorator Switch |
| Amperage Rating | 15A |
| Voltage Rating | 120/277V |
| Number of Poles | Four-way |
| Phase | Single-phase |
| Wiring Method | Back and Push |
| Switch Type | Four-way |
| Mounting Method | Flush |
| Closure Type | Maintained |
| Allowable Wire Size | #14–12 AWG |
| Load Type | LED, CFL, Incandescent, Halogen, Fluorescent, ELV, MLV, Fan, Motor Control |
| Actuator Style | Decorator Rocker |
| Material | Thermoplastic |
| Color | White |
| Special Feature | Box packaging |
| Product Height | 4.19 in |
| Product Width | 0.97 in |
| Product Depth | 1.44 in |
| Product Weight | 0.001 lb |
| Certifications | cULus Listed |
| Compliances | RoHS Compliant, NAFTA |
Ideal for:
Multi-location lighting control (three or more locations)
Residential and commercial installations
Stairways, hallways, and large open-plan rooms
Ceiling fan and small motor control
Energy-efficient lighting systems (LED/CFL retrofits)
Enables control of lighting from multiple points
Easy, fast wiring with back and push terminals
Durable design for high-traffic environments
Sleek decorator style complements modern interiors
Certified for safe and reliable operation
cULus Listed
RoHS Compliant
NAFTA Compliant
| SKU(s) | 7504W-BOX |
| UPC | 032664643835 |
| Color | White |
| Voltage | 125V |
| Width | 0.97 in |
| Length | 1.44 in |
| Height | 4.19 in |
| Wire | #14-10 AWG |
| Certs |
|
 View Spec Sheet
|
