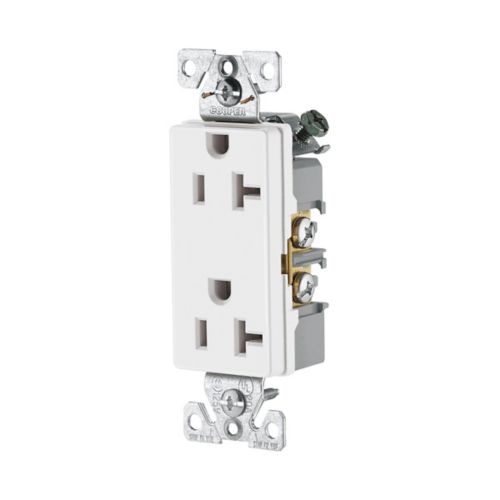

20 Amp Decorator Duplex Receptacle | 125V | 5-20R | Industrial Grade
The Eaton 6352W-BU is a heavy-duty industrial specification grade decorator duplex receptacle designed for demanding commercial and industrial environments. Rated for 20 amps at 125 volts, this high-performance outlet provides superior reliability, safety, and durability while maintaining a clean, decorator-style appearance.
Built with a nylon face and body for maximum impact and chemical resistance, this receptacle is ideal for environments where toughness and long service life are essential. The brass contacts ensure excellent conductivity, while back and side wiring options offer flexibility and speed during installation.
The Eaton 6352W-BU meets stringent UL, cULus, and Federal Specification 6233 01 standards, ensuring compliance for industrial and commercial applications. Its auto-grounding feature enhances safety, while the flush-mounted design delivers a professional, streamlined look for any electrical installation.
Heavy-Duty Industrial Specification Grade for rugged, high-demand applications
20A / 125V rated for powerful and reliable performance
Auto-Grounding Feature enhances electrical safety
Decorator Style provides a modern, streamlined aesthetic
Dual Wiring Options: back and side wiring for faster installation
Brass Contacts ensure superior electrical conductivity and corrosion resistance
Impact-Resistant Nylon Construction withstands tough environments
Standard NEMA 5-20R configuration for compatibility with commercial-grade plugs
Flush Mounting Design for a clean, professional finish
UL and cULus Listed for safety and quality assurance
| Specification | Details |
|---|---|
| Product Name | Eaton Heavy-Duty Industrial Specification Grade Decorator Duplex Receptacle |
| Catalog Number | 6352W-BU |
| UPC | 032664584084 |
| Device Type | Receptacle |
| Type | Decorator Duplex Receptacle |
| Amperage Rating | 20A |
| Voltage Rating | 125V |
| Contact Material | Brass |
| Features | Auto-Grounding |
| Application | Commercial / Industrial |
| Device Grade | Heavy-Duty Industrial Specification Grade |
| Wiring Method | Back and Side |
| Number of Wires | 3 |
| Mounting Method | Flush |
| Number of Poles | Two-pole |
| Style Type | Decorator |
| Material | Nylon |
| Face/Body Material | Nylon (Impact and Chemical Resistant) |
| Connection Type | Screw |
| Allowable Wire Size | #14–10 AWG |
| NEMA Configuration | 5-20R |
| Torque Rating | 14 lbf-in |
| Design Type | Straight Blade |
| Color | White |
| Packaging Type | Bulk |
| Product Height | 4.19 in |
| Product Width | 0.84 in |
| Product Depth | 1.32 in |
| Product Weight | 0.001 lb |
| Certifications | cULus Listed |
| Compliances | RoHS Compliant, NAFTA |
| Federal Specification | Classification 6233 01 |
The Eaton 6352W-BU is ideal for:
Commercial and industrial power distribution
Manufacturing facilities and workshops
Warehouses and utility rooms
Educational and healthcare institutions
High-traffic public buildings
Professional office spaces
Engineered for maximum durability and performance in industrial conditions
Ensures safe, grounded connections automatically
Compatible with Eaton screwless decorator wallplates (PJS262W–PJS266W) for a clean finish
Back and side wiring simplifies installation and maintenance
Resistant to impact, abrasion, and corrosion
cULus Listed
RoHS Compliant
NAFTA Compliant
Federal Specification Classification 6233 01
| SKU(s) | 6352W-BU |
| UPC | 032664584084 |
| Color | White |
| Voltage | 125V |
| Width | 0.84 in |
| Length | 1.32 in |
| Height | 4.19 in |
| Wire | #14-10 AWG |
| Certs |
|
 View Spec Sheet
|
