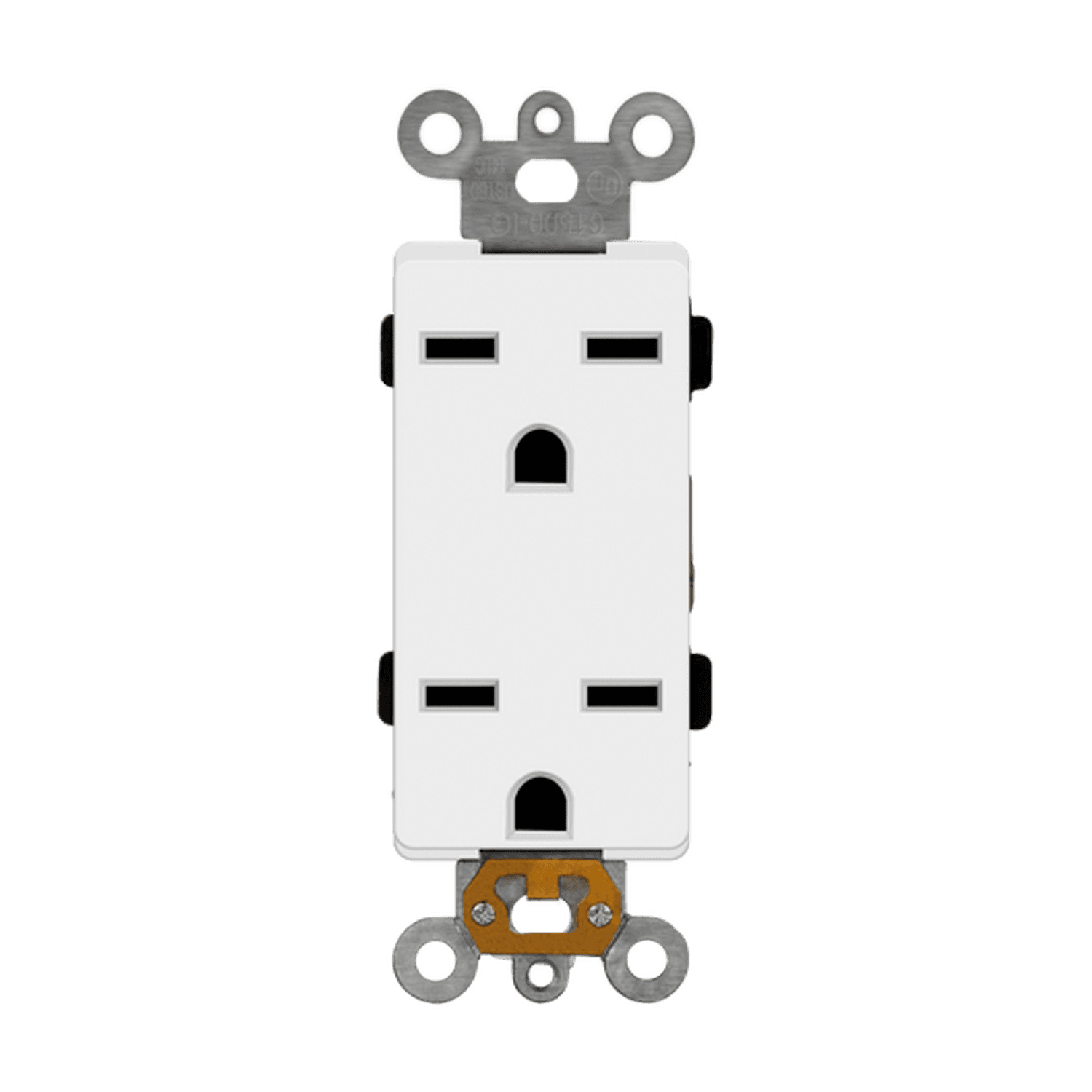

15 Amp Duplex Decorator Receptacle | Self-Grounding | 250V | 6-15R | Enerlites 63151

The Enerlites 63151 is an industrial-grade heavy duty 15A decorator receptacle (NEMA 6-15R) designed for high-demand commercial and industrial environments. Made from durable polycarbonate thermoplastic, this receptacle offers a smooth, easy-to-clean surface and impact-resistant construction to withstand harsh conditions.

Equipped with unique screw terminal guards, this device ensures fast, safe installation by providing insulation from conductive surfaces. The receptacle features break-off tabs for convenient two-circuit conversion, and a self-grounding clip or optional green grounding screw for reliable grounding.

Compliant with the 2017 NEC Article 406.12, the 63151 is ideal for industrial, commercial, or high-use areas where safety, durability, and performance are critical.

Technical Specifications

• Model Number: 63151

• Amperage: 15A

• Voltage: 125/250VAC

• NEMA Configuration: 6-15R

• Construction: Industrial-grade polycarbonate thermoplastic

• Wiring: Back wired, accepts 10–14 AWG wire

• Grounding: Self-grounding clip or green terminal screw

• Flammability: UL94, V2 rating

• Operating Temperature: -104°F to 167°F (-75°C to 75°C)

• Certifications: UL listed

• Warranty: 2-year limited

Key Features & Benefits

• Industrial-grade heavy duty construction for long-lasting performance

• Impact-resistant thermoplastic cover and body

• Self-grounding clip and optional green grounding screw for reliable safety

• Break-off tabs for easy two-circuit conversion

• Screw terminal guards ensure safe and quick installation

• Compliant with 2017 NEC Article 406.12 for safety in commercial and industrial applications

Ideal Applications

• Industrial workshops and factories

• Commercial kitchens or high-use facilities

• Heavy-duty office or educational environments

• Warehouses and manufacturing floors
