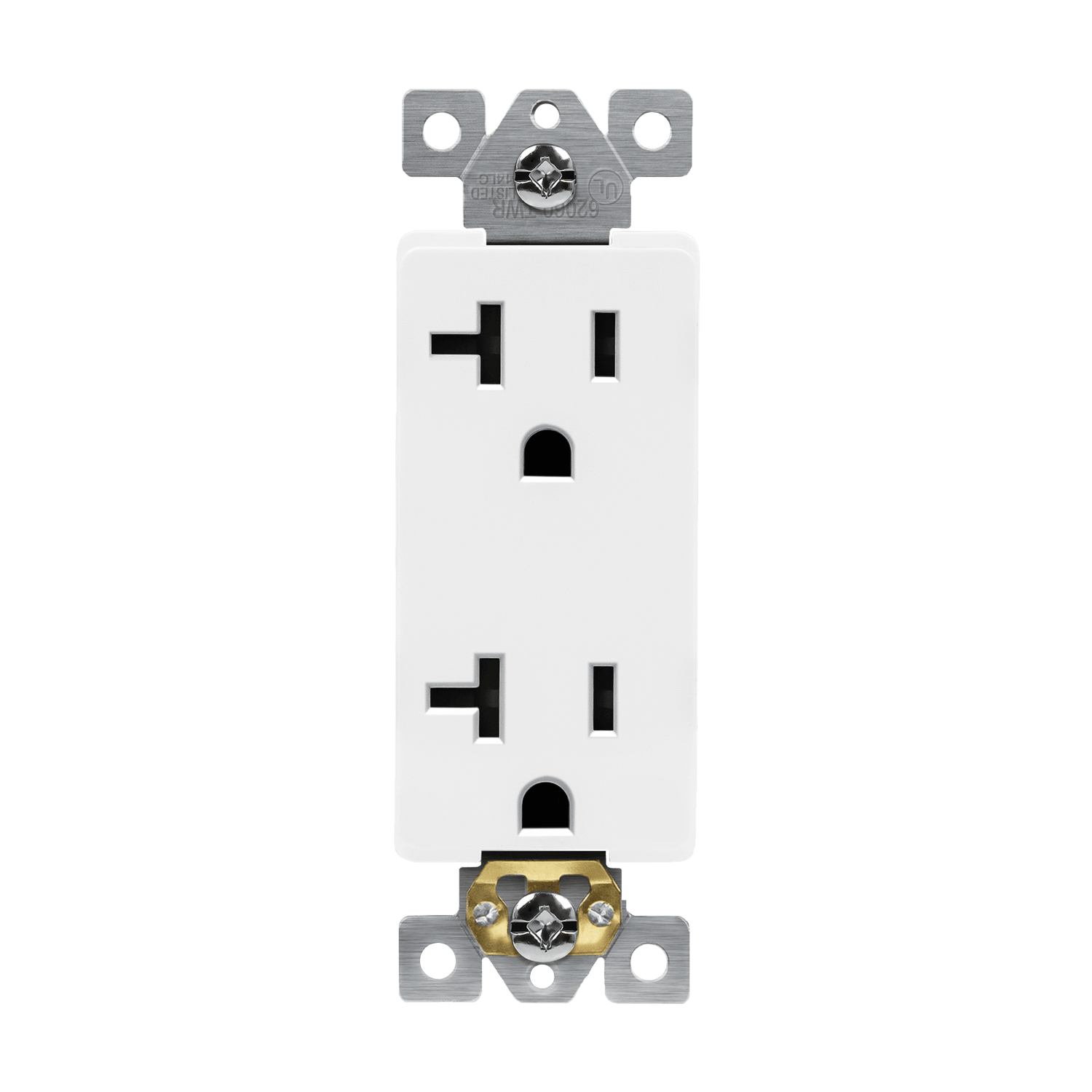

20 Amp Duplex Decorator Receptacle | 125V | 5-20R | Residential Grade | Enerlites 62001

The Residential Grade 20A Decorator Receptacle, 5-20R (Model 62001) is engineered to deliver reliable performance, enhanced safety, and easy installation for residential and light commercial electrical applications. Designed to meet modern code requirements, this 20-amp decorator-style outlet combines durability, flexibility, and a clean aesthetic that complements today’s décor-style wall plates.

Manufactured from heavy-duty impact-resistant thermoplastic, this receptacle is built for long service life and dependable operation. The tamper-resistant (TR) design includes built-in safety shutters that prevent the insertion of foreign objects, helping to protect children and enhancing overall electrical safety.

The shallow body design maximizes wiring space inside the electrical box, making installation faster and more efficient. Break-off plaster ears and tabs allow for precise alignment and easy two-circuit conversion, while removable yoke tabs ensure a flush, professional finish. The device supports both back and side wiring, accepting solid or stranded conductors, and features terminal screws that are pre-backed out and ready for wiring to save time on installation.

With UL listing, a UL94 V2 flammability rating, and full compliance with 2017 NEC Article 406.12, the Enerlites 62001 decorator receptacle is a safe, code-compliant solution for kitchens, living areas, offices, and other residential spaces. Backed by a 2-year warranty, it offers long-term value and peace of mind.

KEY FEATURES

• 20A, 125V decorator receptacle – NEMA 5-20R

• Tamper-resistant shutters improve child safety

• Durable impact-resistant thermoplastic construction

• Shallow design provides maximum wiring room

• Break-off tabs for easy two-circuit conversion

• Break-off plaster ears for precise alignment

• Back and side wiring accepts solid and stranded wire

• Push-in terminals for #14 AWG solid copper (15A branch circuit only)

• Optional grounding via self-grounding clip or green terminal screw

• Combination Slot/Phillips head screws for faster installation

• Terminal screws pre-backed out and ready for wiring

• UL listed and UL94 V2 flammability rated

• 2-year warranty

TECHNICAL SPECIFICATIONS

• Model: 62001

• Rating: 20A, 125V

• Configuration: 5-20R

• Style: Decorator Receptacle

• Material: Thermoplastic

• Wiring: Back & Side

• Operating Temperature:

  • Down to -104°F (without impact)

  • Up to 167°F max continuous

• Flammability Rating: UL94 V2

• Certification: UL Listed

• Code Compliance: 2017 NEC Article 406.12

• Warranty: 2 Years
