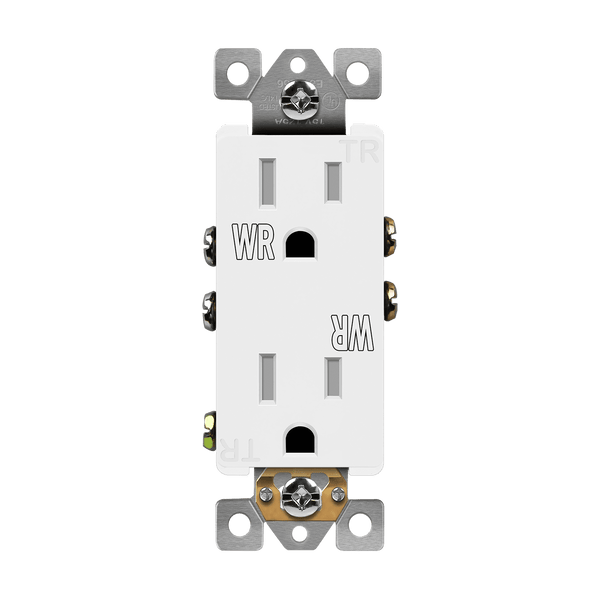

15Amp Decorator Duplex Receptacle | Tamper/Weather Resistant | 125V | 5-15R | Residential Grade

The Decorator Style Tamper & Weather-Resistant Receptacle (Model 61501-TWR) delivers modern design, durability, and superior safety for both indoor and outdoor electrical applications. Built from high-impact resistant thermoplastic, this receptacle withstands tough environments while maintaining a sleek, flush-mounted appearance that complements any modern décor.

Equipped with tamper-resistant shutters in compliance with NEC Article 406.12, it enhances child safety by preventing foreign objects from being inserted. The weather-resistant (WR) construction ensures dependable operation in damp or wet locations, making it ideal for patios, garages, bathrooms, pool houses, and outdoor entertainment areas.

Engineered for easy installation, this device features combination Slot/Phillips screws, push-in #14 AWG wiring, and break-off tabs for two-circuit conversion. The self-grounding clip or green terminal screw provides flexible grounding options, while back and side-wiring terminals accommodate both solid and stranded wire types for professional-grade reliability.

Technical Specifications:

• Model: 61501-TWR

• Type: Decorator Duplex Receptacle (15A, 125V)

• Material: High-impact resistant thermoplastic

• Features: Tamper-resistant (TR) and Weather-resistant (WR)

• Grounding: Self-grounding clip or green terminal screw

• Wiring: Back and side-wired for solid and stranded wire

• Wire Gauge: #14 AWG Cu solid wire for 15A circuits

• Conversion: Break-off tabs for two-circuit wiring

• Mounting: Combination Slot/Phillips head screws

• Temperature Range: -104°F (without impact) to 167°F continuous

• Environmental Rating: UL94 V2 flammability

• Compliance: UL Listed, NEC Article 406.12 compliant

• Warranty: 2 Years

Key Features:

• Tamper-resistant shutters protect against unintended insertions

• Weather-resistant construction for indoor and outdoor use

• Heavy-duty thermoplastic housing ensures impact resistance and long life

• Self-grounding design simplifies installation and improves safety

• Compact, shallow body for maximum wiring space

• Ideal for residential, hospitality, and light commercial applications

Perfect for modern homes, apartments, hotels, or outdoor installations, this Decorator Style 15A Tamper & Weather-Resistant Outlet offers both a clean aesthetic and reliable performance in every environment.
