Large Cone 18″ Stem Brass Path Light | 12V S.C. Bayonet
| SKU(s) | CL-654B-AB |
| Color | Antique Bronze |
| Lamp | No-Lamp | 2.5W / 2.7K | 2.5W / 3K |
| Color | Antique Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K & 3000K |
| Width | 7-7/8" |
| Length | 7-7/8" |
| Height | 24" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|

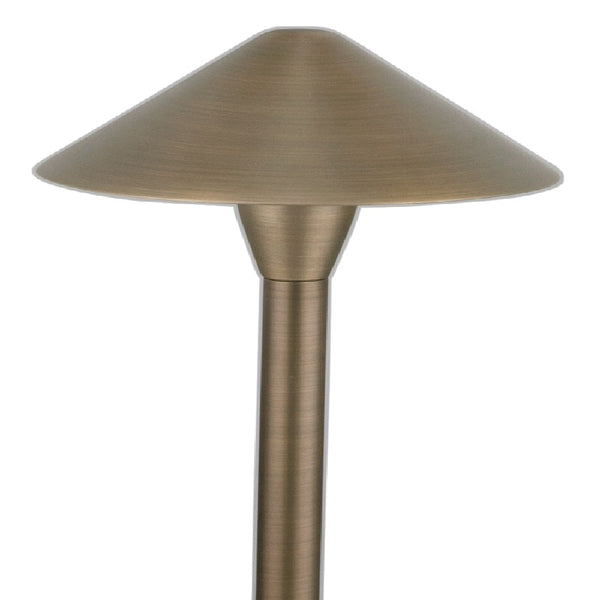

The Large Cone 18″ Stem Path Light delivers a perfect balance of timeless elegance, durability, and functionality for premium outdoor lighting applications. Crafted from solid brass with an Antique Bronze finish, this architectural-grade fixture features a wide 7.88-inch cone-shaped shade mounted on an 18-inch stem for optimal light spread and visual impact. Ideal for illuminating pathways, garden beds, driveways, patios, and outdoor living areas, this fixture combines refined design with robust performance.
A clear glass lens shields the lamp from sprinkler water and outdoor elements, ensuring long-term clarity and protection, while an optional frosted lens (CX-308-FR) offers softer, diffused illumination. The high-quality S.C. Bayonet socket allows for tool-free lamp replacement, supporting 12V SCB lamps up to 27W halogen max or energy-efficient LED options for reduced energy consumption and maintenance.
The fixture comes prewired with a 3-foot 18-2 SPT2-W direct burial cord for quick installation and includes an 8-inch injection-molded ground spike with a 1/2″ NPT threaded female hub for secure mounting. Designed with a voltage range of 9–17V, it requires a remote 12V transformer (sold separately). Built for year-round performance, it’s backed by a limited lifetime warranty on the fixture housing.
Key Features:
Solid brass construction with Antique Bronze finish for durability and style
Wide 7.88″ cone shade for excellent light spread
Clear glass lens for weather and sprinkler protection; frosted lens available separately
Compatible with 12V SCB halogen or LED lamps (27W max for halogen)
Prewired with 3′ direct burial cord for fast installation
8″ injection-molded ground spike with 1/2″ NPT threaded female hub included
Voltage range: 9–17V; requires remote 12V transformer
Limited lifetime warranty on fixture housing
Ideal Applications:
Pathway and walkway illumination
Garden and flower bed accent lighting
Driveway and entryway lighting
Patio, courtyard, and outdoor living space lighting
Commercial and residential landscape projects
$79.25 /each
| SKU(s) | CX-BTE |
| Color | Black |
| Voltage | 9V-17V |
| Width | 2" |
| Length | 2-1/2" |
| Height | 9-1/2" |
| Wire | 5ft UL listed SPT-1W |
| Certs |
|
|
View Installation Guide
|
$70.25 /each
| SKU(s) | CL-362C-RC |
| Color | Raw Copper |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Raw Copper |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 4-3/8" |
| Height | 2-1/4" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$217.85 /each
| SKU(s) | CL-633-BT-AB-12 |
| Color | Antique Bronze |
| Size | 12" | 18" |
| Color | Antique Bronze |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 6" |
| Length | 6" |
| Height | 17" / 23" |
| Diameter | 6" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$196.25 /each
| SKU(s) | CL-652-BT-AB-12 |
| Color | Antique Bronze |
| Size | 12" | 18" |
| Color | Antique Bronze |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 5-1/4" |
| Length | 5-1/4" |
| Height | 17-1/2" / 23-1/2" |
| Diameter | 5-1/4" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
