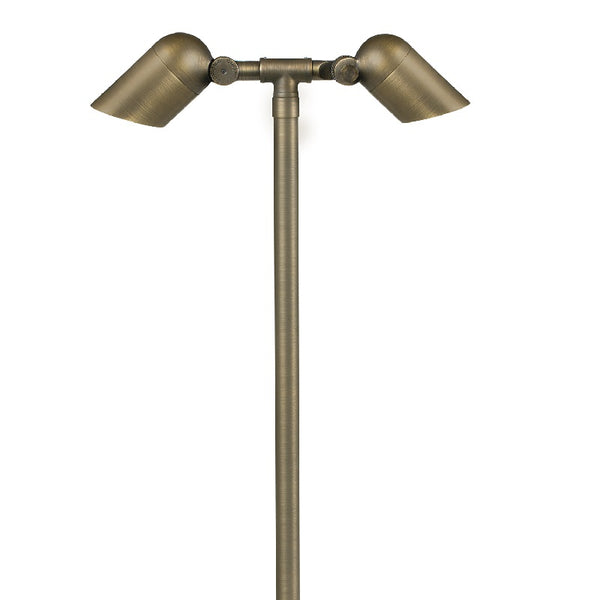

Mini Double Head Brass Path Light | MR-16 LED Compatible
| SKU(s) | CL-735B-T-AB-12 |
| Size | 12" | 18" | 24" |
| Color | Antique Bronze | Gun Metal | Silver |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Antique Bronze & Gun Metal & Silver Plated |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-1/2" |
| Length | 2-1/2" |
| Height | 12" / 18" / 24" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Mini Double Head Path Light is a premium, architectural-grade outdoor lighting fixture designed for maximum coverage, durability, and elegance. Crafted from solid brass and available in Antique Bronze, Gun Metal, or Silver Plated finishes, this path light delivers powerful, dual-beam illumination ideal for wide pathway and garden lighting applications.
Available in 12″, 18″, or 24″ stem lengths, the fixture adapts to different landscape designs while maintaining a consistent, high-quality look. Each head features a clear, heat-resistant convex glass lens for optimal light transmission and weather resistance. The dual top-grade fixed ceramic bi-pin sockets are compatible with 12V MR-16 lamps (up to 50W halogen or LED equivalents per head), allowing for flexible beam spreads and brightness levels.
For precise light aiming, the adjustable cast brass knuckles with thumb screws make positioning simple. The Mini Double Head Path Light comes prewired with two 3-foot 18-2 SPT2-W direct burial cords and includes a heavy-duty plastic ground spike with a ½″ NPT threaded female hub for secure installation. Operating in a 9V–17V range, this fixture requires a remote 12V transformer (sold separately).
Key Features:
Solid brass construction for superior outdoor durability
Dual-head design for expanded lighting coverage
Available in Antique Bronze, Gun Metal, and Silver Plated finishes
Choice of 12″, 18″, or 24″ stem lengths for installation flexibility
Adjustable cast brass knuckles with thumb screws for accurate aiming
Clear convex tempered glass lenses for maximum light output
Two top-grade fixed ceramic bi-pin sockets with retention clips
Compatible with 12V MR-16 lamps (halogen or LED) up to 50W per head
Prewired with dual 3-ft 18-2 SPT2-W direct burial cords
Includes plastic ground spike with ½″ NPT threaded female hub
Voltage range: 9V–17V; requires remote 12V transformer
Limited lifetime warranty on fixture housing
Ideal Applications:
Wide pathway and driveway illumination
Lighting for large garden areas
Dual-sided accent lighting for outdoor features
Perimeter lighting for landscape designs
$220.00 /each
| SKU(s) | CL-717-BT-AB |
| Color | Antique Bronze | Gun Metal |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-4W |
| Voltage | 10-15V |
| Lumens | 35LM-300LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 1" |
| Height | 18" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$210.65 /each
| SKU(s) | CL-649-BT-AB-12 |
| Color | Antique Bronze | Gun Metal |
| Size | 12" | 18" |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 6-3/4" |
| Length | 6-3/4" |
| Height | 17" / 23" |
| Diameter | 6-3/4" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$187.25 /each
| SKU(s) | CL-211-SS |
| Color | Stainless Steel |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | 316 Marine Stainless Steel |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 10-1/2" |
| Diameter | 3-7/8" |
| LED Life | 50.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$532.85 /each
| SKU(s) | CL-755-BT-T-AB-18 |
| Color | Antique Bronze | Gun Metal |
| Size | 18" | 24" |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-6W |
| Voltage | 10-15V |
| Lumens | 15LM - 450LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 2-1/2" |
| Length | 2-1/2" |
| Height | 24" / 18" |
| Diameter | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
