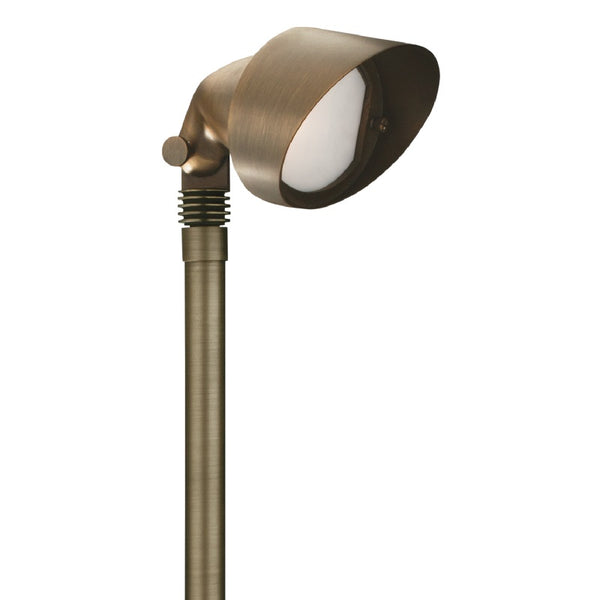

Large Oval Brass Area Light – 24″ Stem | MR-16 LED Compatible
| SKU(s) | CL-734B-AB-18 |
| Size | 18" | 24" |
| Color | Antique Bronze | Gun Metal |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Antique Bronze & Gun Metal |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Length | 6" |
| Height | 18" / 24" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Large Oval Area Light is a high-quality, architectural-grade outdoor lighting fixture crafted from solid brass for long-lasting durability and timeless appeal. Available in Antique Bronze and Gun Metal finishes, this elegant area light is designed to deliver exceptional illumination for pathways, gardens, patios, and landscape focal points.
Featuring a 24″ standard stem and a precision-engineered adjustable cast brass knuckle with a thumb screw, this fixture allows for accurate beam positioning. The frosted, heat-resistant tempered glass lens produces a soft, even light while minimizing glare. For versatile lighting effects, it also includes an extra clear glass lens, a linear glass lens, and a honeycomb louver.
The Large Oval Area Light is built with a top-grade fixed ceramic bi-pin socket and is compatible with 12V MR-16 lamps (up to 50W halogen or LED equivalents). It comes prewired with a 3-foot 18-2 SPT2-W direct burial cord for quick installation and includes a sturdy plastic ground spike with a ½″ NPT threaded female hub for secure mounting. The fixture operates in a 9V–17V range and requires a remote 12V transformer (sold separately) for proper performance.
Key Features:
Solid brass construction for premium outdoor durability
Available in Antique Bronze or Gun Metal finishes
24″ stem for optimal light height and spread
Adjustable cast brass knuckle with thumb screw for precision aiming
Frosted tempered glass lens for soft illumination
Includes clear glass, linear glass, and honeycomb louver lens options
Top-grade fixed ceramic bi-pin socket
Compatible with 12V MR-16 lamps (halogen or LED) up to 50W
Prewired with 3-ft 18-2 SPT2-W direct burial cord
Durable plastic ground spike with ½″ NPT threaded female hub
Voltage range: 9V–17V; requires remote 12V transformer
Limited lifetime warranty on fixture housing
Ideal Applications:
Pathway and walkway lighting
Garden and plant bed illumination
Patio and deck lighting
Accent lighting for trees, signage, and architectural features
$532.85 /each
| SKU(s) | CL-755-BT-T-AB-18 |
| Color | Antique Bronze | Gun Metal |
| Size | 18" | 24" |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-6W |
| Voltage | 10-15V |
| Lumens | 15LM - 450LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 2-1/2" |
| Length | 2-1/2" |
| Height | 24" / 18" |
| Diameter | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$72.00 /each
| SKU(s) | L-ED16-5W-BT |
| Color | Black |
| Wattage | 1W-5W |
| Voltage | 9V-17V AC & DC |
| Lumens | 25LM - 530LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 1-7/8" |
| Length | 1-7/8" |
| Height | 1-7/8" |
| Diameter | 1-7/8" |
| LED Life | 50.000 Hrs |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$261.00 /each
| SKU(s) | CL-410-BT-AB |
| Color | Antique Bronze | Gun Metal |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-6W |
| Voltage | 10-15V |
| Lumens | 15LM - 450LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 4.5/8" |
| Length | 4-5/8" |
| Height | 2-1/2" |
| Diameter | 4-5/8" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
