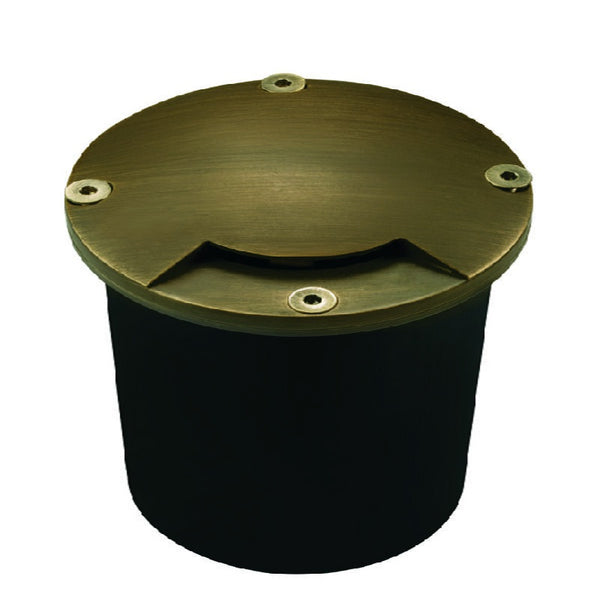

90-Degree Brass Marker Well Light with PVC Sleeve | MR16 12V
| SKU(s) | CL-204-AB |
| Color | Antique Bronze | Black |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Antique Bronze & Black Brass |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K & 3000K |
| Width | 3-3/4" |
| Length | 3-3/4" |
| Height | 6" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The 90º Brass Marker Well Light with PVC Sleeve is a compact, directional in-ground lighting solution designed for low-profile illumination along walkways, retaining walls, steps, and driveways. Engineered from durable cast brass with optional Antique Bronze or Black Brass finishes, this architectural-grade fixture offers long-lasting performance and resistance to outdoor elements.
Its unique 90-degree angled design emits light laterally, making it ideal for marker, path, or wall-washing applications without casting direct glare upward. The housing sits securely inside a PVC sleeve, reinforced with stainless steel retention clips, ensuring reliable in-ground installation in soil or concrete.
The fixture includes a clear, heat-resistant raised flat glass lens for optimal durability and light output. It accepts MR16 lamps (12V, up to 50W halogen or LED) via a high-quality ceramic bi-pin socket with a retention clip. A 3-foot 18-2 SPT2-W direct burial cord is prewired for easy integration with landscape wiring systems.
Designed to operate within a 9V–17V range, this fixture pairs with remote 12V transformers (sold separately) and supports LED retrofit options for energy efficiency. Backed by a limited lifetime warranty, this marker light offers a professional and reliable lighting solution for any residential or commercial landscape.
$220.00 /each
| SKU(s) | CL-717-BT-AB |
| Color | Antique Bronze | Gun Metal |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-4W |
| Voltage | 10-15V |
| Lumens | 35LM-300LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 1" |
| Height | 18" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$144.00 /each
| SKU(s) | CL-450-BT-BK |
| Color | Black |
| Color | Black |
| Wattage | 1-4W |
| Voltage | 10-15V |
| Lumens | 15LM - 250LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7-3/4" |
| Height | 3" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$145.85 /each
| SKU(s) | CL-648C-RC |
| Color | Raw Copper |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Raw Copper |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 6" |
| Length | 6" |
| Height | 19-1/2" |
| Diameter | 6" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$315.00 /each
| SKU(s) | CL-744-BT-AB-18 |
| Color | Antique Bronze | Gun Metal |
| Size | 18" | 24" |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-6W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 2-1/2" |
| Length | 2-1/2" |
| Height | 24" / 18" |
| Diameter | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
