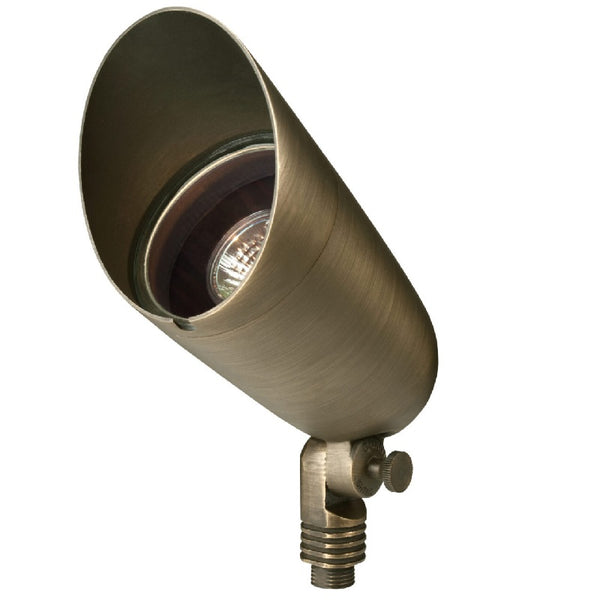

Large Brass Bullet Spot Light | MR16 12V Architectural Uplight
| SKU(s) | CL-526B-AB |
| Color | Antique Bronze |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Antique Bronze |
| Wattage | 3.5 & 5W |
| Voltage | 12V |
| Lumens | 270LM & 470LM |
| Color Temp | 2700K & 3000K |
| Width | 3-7/8" |
| Length | 8-1/2" |
| Height | 8-3/4" |
| Wire | 3-ft 18-2 SPT2-W |
 View Spec Sheet
|
|
|
View Installation Guide
|
Illuminate your outdoor landscape with the Large Bullet Spot Light, crafted from durable, corrosion-resistant cast brass and finished in a rich Antique Bronze. Designed for architectural-grade performance, this powerful fixture is ideal for uplighting trees, columns, and facades. It features a turn-and-lock shroud with a silicone O-ring gasket, a heat-resistant flat glass lens, and a fixed ceramic bi-pin socket with retention clip for secure lamp placement.
Compatible with 12V MR16 lamps up to 75W (halogen max), this fixture supports an LED range of 9-17V and requires a remote 12V transformer (sold separately). It includes a 3-ft direct burial cord, an adjustable brass knuckle with ½" NPT threaded male hub, and a standard ground spike for quick installation.
Available Accessories: Universal connector (CX-839) and silicone-filled wire nut (CX-854).
Warranty: Limited lifetime warranty on brass housing.
$217.85 /each
| SKU(s) | CL-633-BT-AB-12 |
| Color | Antique Bronze |
| Size | 12" | 18" |
| Color | Antique Bronze |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 6" |
| Length | 6" |
| Height | 17" / 23" |
| Diameter | 6" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$97.25 /each
| SKU(s) | CL-114C-RC |
| Color | Raw Copper |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Raw Copper |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3/8" |
| Length | 6-3/4" |
| Height | 4-3/4" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$196.25 /each
| SKU(s) | CL-404-BT-AB |
| Color | Antique Bronze | Gun Metal |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-6W |
| Voltage | 10-15V |
| Lumens | 15LM - 450LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 4" |
| Length | 2-1/2" |
| Height | 2-3/8" |
| Diameter | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$244.85 /each
| SKU(s) | CL-645-BT-AB-12 |
| Color | Antique Bronze | Gun Metal |
| Size | 12" | 18" |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 8-1/2" |
| Length | 8-1/2" |
| Height | 17" / 23" |
| Diameter | 8-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
