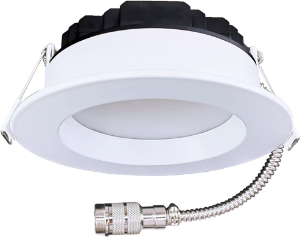

The 4-Inch Round Regress LED Fixture (G-98522) is a high-performance recessed lighting solution designed for commercial and residential spaces. Featuring a trimmed, low-profile round design with a frosted diffuser, this fixture delivers uniform, glare-free illumination while maintaining a sleek and modern aesthetic.

With selectable CCT (27K, 30K, 35K, 41K, 50K), the RS4/15W-IC/20W-NIC allows users to adjust color temperature to match any environment, providing flexibility for offices, lobbies, retail spaces, and residential ceilings. Its high CRI (>90) ensures colors are rendered accurately and vibrantly.

This energy-efficient LED fixture is available in 15W (IC rated) and 20W (non-IC) configurations, producing up to 2,000 lumens. It supports Triac or 0-10V dimming, operates on 120–277V, and is suitable for wet locations, offering reliable performance and versatility in a variety of applications.

Built with quality materials and certified ETL, Title 24, and Energy Star, the RS4/LED series is ideal for modern, code-compliant lighting installations.

🧰 Technical Specifications

General Specifications

• Product Name: 4" Round Regress LED Fixture

• Product Code: G-98522

• Description: RS4/15W-IC/20W-NIC/RD/LED/5CCT/BX

• Shape: Round

• Style: Trimmed

• Size: 4 Inch

• Finish: White

• Diffuser: Frosted

• Number of Lights: 1

• Cutout: 4.20"

• OD (Outside dimensions): 4.92"

• Height: 2.22"

• Mounting: Clip-in

Light Specifications

• Color Temperature (CCT): Selectable 27K, 30K, 35K, 41K, 50K

• Lumens: 1400/2000

• CRI: >90

• Beam Spread: 100°

Electrical Specifications

• Wattage: 15W (IC) / 20W (Non-IC)

• Voltage: 120–277V

• Output Current: 515/355mA

• Dimming: Triac or 0-10V

Compliance & Certification

• Plenum Rated: Chicago

• Location Rating: Wet

• IC Rated: Only at 15W

• Warranty: 5 Years

• Classification: ETL, Title 24, Energy Star

Packaging

• Master Pack: 18

• Barcode: 024431985224
