Up/Down Cylinder LED Wall Light | Architectural & Outdoor

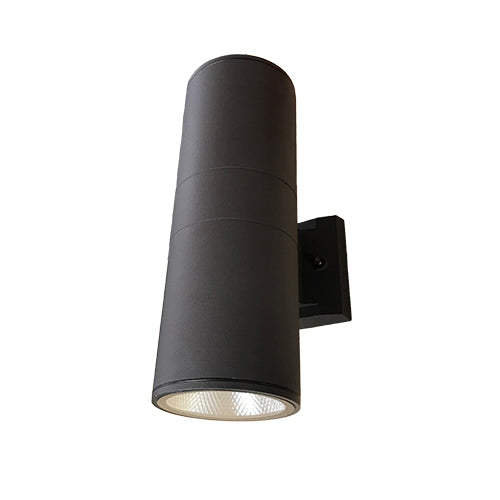

The CYL-UPDN LED Cylinder Light is a high-performance architectural fixture designed for both upward and downward illumination, ideal for enhancing exterior walls, entryways, and commercial facades. Featuring an internal switch for selecting downlight only or up/down light distribution, it delivers flexibility for various lighting designs and applications.

Available in 3000K (Warm White), 4000K (Neutral White), and 5000K (Cool White) color temperatures, the CYL-UPDN provides a lumen range from 2,446 to 2,509 lumens, achieving up to 82 lumens per watt (lm/W). Engineered with long-life LEDs rated up to 153,000 hours (L70), this fixture ensures dependable, energy-efficient performance over time.

Constructed with a durable aluminum housing, clear glass lenses, and a dark bronze powder coat finish, it is both stylish and robust. Certified for wet locations, this Energy Star qualified fixture is perfect for new construction or retrofit installations in commercial, residential, and institutional settings.

FEATURES & BENEFITS

• Selectable color temperatures: 3000K (Warm White), 4000K (Neutral White), 5000K (Cool White)

• Selectable light mode: Downlight or Up/Down light via internal switch

• Lumen output: 2,446–2,509 lumens

• Efficacy: Up to 82 lm/W

• Voltage: 120V AC, 50/60Hz

• Power factor: > 0.90

• CRI: > 80 for excellent color rendering

• Long-life LEDs: up to 153,000 hours (L70)

• Housing: Heavy-duty aluminum with dark bronze powder coat finish

• Lens: Tempered glass for superior durability

• Installation: Surface mount for new construction or retrofit

• Listings:

  • cETLus listed for wet locations

  • Energy Star qualified

  • FCC Part 15, Class B compliant

  • EN61000-4-5 surge immunity (1kV)

  • RoHS compliant

• Warranty: 5-year limited warranty on electronics and housing

APPLICATIONS

• Commercial building facades

• Entrances, corridors, and exterior walls

• Hospitality and retail architecture

• Institutional and educational facilities

• Residential outdoor lighting
