RGBWY-Tuning Controller Wall-Mount 2.4G 24V 360W Rope Light | Ribbon Lighting

RGBWY-Tuning Controller Wall-Mount 2.4G 24V 360W – For Rope Light | Ribbon Lighting Series

Upgrade your lighting control system with the advanced RGBWY-Tuning Controller Wall-Mount 2.4G 24V 360W, designed for high-performance RGBWY (Red, Green, Blue, White, Yellow) LED applications. This professional-grade controller offers powerful output, smooth color tuning, and intuitive control through a sleek wall-mounted interface. Optimized for 24V RGBWY rope lights and LED strip lights, it’s the perfect solution for custom lighting installations where precision and aesthetics matter.

🔧 Key Features:

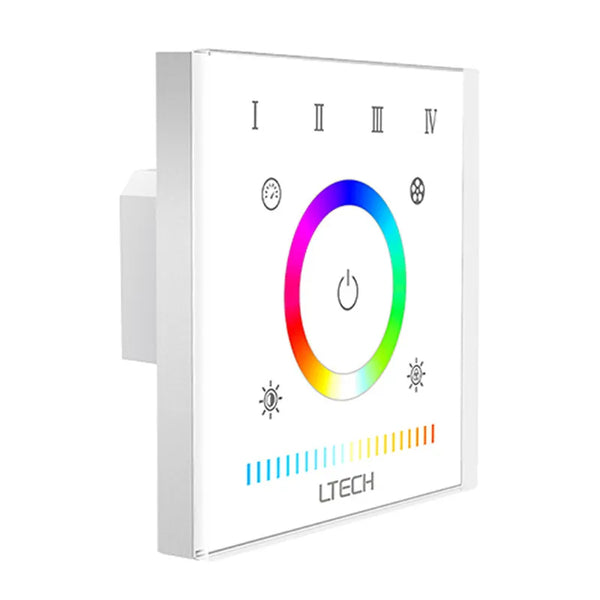

• Wall-Mounted Touch Panel Controller
  Elegant glass-panel interface designed for permanent installation. Offers convenient, centralized control for your RGBWY lighting system — ideal for both residential and commercial settings.

• 2.4GHz RF Wireless Communication
  Control multiple zones wirelessly with a 2.4G RF signal. Sync your lights across rooms or manage them independently using compatible receivers.

• 5-Channel RGBWY Control
  Specially engineered for RGBWY lighting systems, enabling full-spectrum color mixing with an additional warm amber/yellow (Y) channel for enhanced lighting versatility and mood control.

• High Output Power – 360W at 24V
  Drives up to 360 watts of lighting (5 x 3A channels), ideal for larger or multi-zone rope light installations requiring robust performance and consistent brightness.

• Smooth Color Tuning and Brightness Adjustment
  Precisely control color temperature, RGB saturation, brightness levels, and blend effects using responsive touch sliders and preset buttons.

• Multiple Zones & Scene Control
  Control up to 4 lighting zones independently or simultaneously. Save and recall custom scenes or settings for different times of day, moods, or functions.

• Memory Function
  Retains your previous settings even after a power cycle — no need to reprogram your lights every time.

• Modern Design with Easy Installation
  Minimalist wall-mounted design complements any interior. Simple wiring and standard electrical box compatibility make it installer-friendly.

📐 Technical Specifications:

• Input Voltage: DC 12V–24V

• Max Output Power: 360W @ 24V (5x 3A channels)

• Control Signal: 2.4GHz RF (wireless)

• Control Range: Up to 30 meters (open space)

• Control Type: RGBWY (5-channel)

• Zones: Supports multi-zone (up to 4 zones)

• Mounting Type: Wall-mounted (standard electrical box fit)

• Panel Type: Capacitive touch, tempered glass surface

• Compatible Lights: RGBWY Rope Lights & LED Strip Lights

• Working Temperature: -20°C to 60°C

💡 Ideal For:

• Custom home lighting installations

• High-end retail, hospitality, or architectural lighting

• Theatrical and ambient lighting projects

• Accent and mood lighting with enhanced white and yellow tones

• Multi-zone smart lighting systems for residential or commercial use
