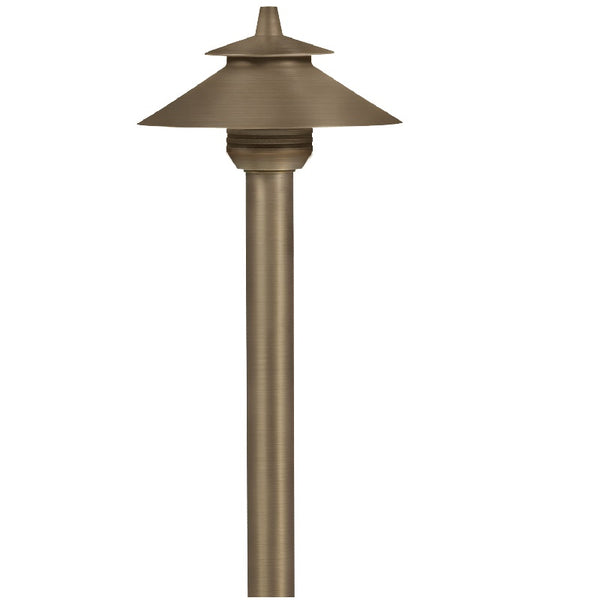

Small Umbrella Brass Path Light | 12V T3 16.5″ Stem
| SKU(s) | CL-646B-AB |
| Color | Antique Bronze |
| Lamp | No-Lamp | 2.5W / 2.7K | 2.5W / 3K |
| Color | Antique Bronze |
| Wattage | 6W / 13W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K & 3000K |
| Width | 5" |
| Length | 5" |
| Height | 16-1/2" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
Bring timeless charm and functional lighting to your outdoor space with the Small Umbrella Path Light, made from solid brass and finished in a classic Antique Bronze. Designed for architectural-grade landscape lighting, this fixture delivers focused, low-glare illumination—perfect for highlighting walkways, garden beds, and landscape borders.
Featuring a 5-inch diameter umbrella-style brass shade, this fixture is paired with a 16.5-inch standard brass stem for elevated light coverage. The frosted polycarbonate lens softens light output and protects the lamp from water and debris, ensuring long-lasting performance in any weather.
This path light uses a 12V T3 halogen or LED lamp (20W max, lamp not included) and comes with a top-grade fixed ceramic bi-pin socket for reliable, tool-free lamp replacement. Prewired with a 5-foot 18-2 SPT2-W direct burial cord, installation is quick and secure. Optional wiring accessories like the CX-839 universal connector or CX-854 silicone-filled wire nut are available separately.
The fixture mounts with an 8″ injection-molded ground spike and ½″ NPT threaded hub, and operates within a 9–17V range with LED lamps. A remote 12V transformer is required (sold separately), making this light a perfect addition to any low-voltage outdoor lighting system.
Backed by a limited lifetime warranty on the brass housing, the Small Umbrella Path Light offers premium durability, classic style, and exceptional performance.
Material: Solid Brass
Finish: Antique Bronze
Shade: 5″ Brass Umbrella-Style
Stem Height: 16.5″ Standard Brass Stem
Lens: Frosted Polycarbonate (sprinkler-resistant)
Socket: Fixed Ceramic Bi-Pin (Tool-Free Access)
Lamp Type: 12V T3, 20W max (lamp not included)
Wiring: 5-ft 18-2 SPT2-W direct burial cord
Mounting: 8″ Ground Spike with ½″ NPT Threaded Female Hub
Voltage Range: 9–17V with LED lamp
Transformer Required: Yes, 12V remote transformer
Grade: Architectural
Warranty: Limited Lifetime on Fixture Housing
Walkways and stepping stone paths
Garden borders and plant beds
Driveways and entryways
Courtyards and patio edges
$187.25 /each
| SKU(s) | CL-211-SS |
| Color | Stainless Steel |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | 316 Marine Stainless Steel |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 10-1/2" |
| Diameter | 3-7/8" |
| LED Life | 50.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$217.85 /each
| SKU(s) | CL-633-BT-AB-12 |
| Color | Antique Bronze |
| Size | 12" | 18" |
| Color | Antique Bronze |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 6" |
| Length | 6" |
| Height | 17" / 23" |
| Diameter | 6" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$75.65 /each
| SKU(s) | L-EDBA-3W-BT |
| Color | White |
| Wattage | 0.5W - 3W |
| Voltage | 9V-17V AC & DC |
| Lumens | 10LM - 200LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7/8" |
| Length | 7/8" |
| Height | 1-7/8" |
| Diameter | 7/8" |
| LED Life | 50.000 Hrs |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$102.65 /each
| SKU(s) | CL-647C-RC |
| Color | Raw Copper |
| Lamp | No-Lamp | 2.5W / 27K | 2.5W / 3K |
| Color | Raw Copper |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K / 3000K |
| Width | 3-1/2" |
| Length | 3-1/2" |
| Height | 16-1/4" |
| Diameter | 3-1/2" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
