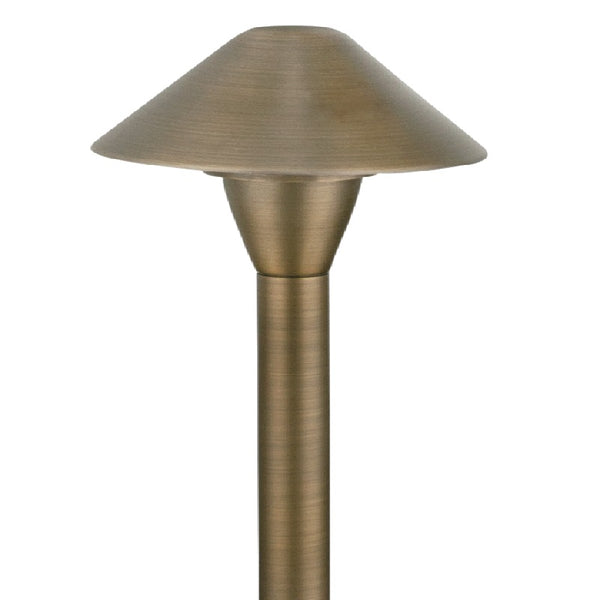

Mini Cone Brass Path Light – 5.25″ Shade | 18″ Stem
| SKU(s) | CL-652B-AB |
| Color | Antique Bronze |
| Lamp | No-Lamp | 2.5W / 2.7K | 2.5W / 3K |
| Color | Antique Bronze |
| Wattage | 2.5W |
| Voltage | 12V |
| Lumens | 240LM / 250LM |
| Color Temp | 2700K & 3000K |
| Width | 5-1/4" |
| Length | 5-1/4" |
| Height | 23" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
Add a refined touch to your outdoor lighting with the Mini Cone 18″ Stem Path Light, crafted from solid brass and finished in an elegant Antique Bronze. Designed for both beauty and durability, this architectural-grade fixture delivers reliable pathway illumination while blending seamlessly into any landscape design.
The 5.25-inch mini cone brass shade provides focused, glare-free lighting for walkways, gardens, and patios. A clear glass lens shields the lamp from sprinkler spray and the elements, with an optional frosted lens (CX-308-FR) available for a softer light effect.
Equipped with a S.C. Bayonet socket for secure lamp placement and tool-free access for quick maintenance, the fixture supports 12V SCB lamps up to 27W (halogen), with LED compatibility for enhanced efficiency.
Prewired with a 3-foot 18-2 SPT2-W direct burial cord, the light can be connected using the CX-839 universal connector or CX-854 silicone-filled wire nut (sold separately). It mounts using an 8-inch injection-molded ground spike with a ½-inch NPT threaded female hub for stability.
Operating in a 9–17V range when paired with LED lamps, this path light requires a remote 12V transformer (sold separately). Backed by a limited lifetime warranty on the brass housing, the Mini Cone Path Light is a compact yet high-performance choice for residential and commercial landscapes.
Material: Solid Brass
Finish: Antique Bronze
Shade Diameter: 5.25″ (Mini Cone Design)
Stem Height: 18″
Lens: Clear Glass (Sprinkler-Resistant), Optional Frosted Lens
Socket: S.C. Bayonet, Tool-Free Lamp Access
Lamp Type: 12V SCB, 27W max (lamp not included)
Wiring: 3-ft 18-2 SPT2-W Direct Burial Cord
Mounting: 8″ Ground Spike with ½″ NPT Threaded Hub
Voltage Range: 9–17V with LED
Transformer Required: Yes (12V Remote)
Grade: Architectural
Warranty: Limited Lifetime on Fixture Housing
Garden paths & walkways
Landscape borders
Entryway lighting
Patio & outdoor seating areas
$35.15 /each
| SKU(s) | CL-503-BK |
| Color | Black | Green |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Green |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3" |
| Length | 3" |
| Height | 7-3/4" |
| Diameter | 3" |
| LED Life | 50.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$97.25 /each
| SKU(s) | CL-114C-RC |
| Color | Raw Copper |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Raw Copper |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3/8" |
| Length | 6-3/4" |
| Height | 4-3/4" |
| LED Life | 50.000 Hrs |
| Wire | 5-ft 18-2 SPT1-W cord |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$153.00 /each
| SKU(s) | CL-312-SS |
| Color | Stainless Steel |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Stainless Steel |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3-1/2" |
| Length | 3-1/2" |
| Height | 2-3/4" |
| Diameter | 3-1/2" |
| LED Life | 50.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$196.25 /each
| SKU(s) | CL-404-BT-AB |
| Color | Antique Bronze | Gun Metal |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-6W |
| Voltage | 10-15V |
| Lumens | 15LM - 450LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 4" |
| Length | 2-1/2" |
| Height | 2-3/8" |
| Diameter | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
