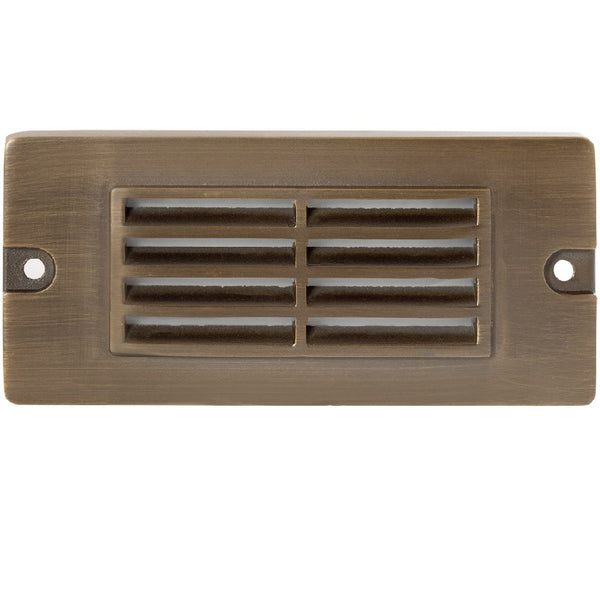

Smart Brass RGB-WW Bluetooth Louvered Step Light | Surface Mounted
| SKU(s) | CL-345-BT-AB |
| Color | Antique Bronze | Gun Metal |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-3W |
| Voltage | 10-15V |
| Lumens | 15LM - 250LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 5-1/2" |
| Height | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
The Smart Brass RGB-WW Bluetooth Louvered Step Light delivers modern functionality with timeless durability, making it ideal for architectural and landscape lighting. Constructed from heavy-duty cast brass with a die-cast louvered faceplate fitted to a stainless-steel backplate, this fixture ensures long-lasting performance in any environment.
Its replaceable 1W–3W RGB-WW LED module produces 35–265 lumens with a 120º beam spread and a CRI above 85, offering vibrant, high-quality light with customizable color options. Available in Antique Bronze or Gun Metal finishes, it blends seamlessly into step lighting, pathway accents, and wall-mount applications.
Designed for surface mounting, the fixture includes a frosted, heat-resistant plastic lens for soft light diffusion. It comes prewired with a 10 ft UL-listed SPT-2W cord, with optional quick-locking connectors (CX-LOC) sold separately.
This step light requires a remote 12V transformer (available separately from Corona Lighting) and operates within a 9V–17V range.
✔ Durable corrosion-resistant cast brass housing
✔ Louvered die-cast faceplate with stainless steel backplate
✔ 1–3W RGB-WW replaceable LED module, 35–265 lumens, CRI >85
✔ 120º wide beam spread for step or wall applications
✔ Surface-mounted with frosted heat-resistant lens
✔ Prewired with 10 ft UL-listed cord for easy installation
✔ Compatible with 12V magnetic transformers
✔ Backed by lifetime housing warranty & 10-year LED warranty
$32.45 /each
| SKU(s) | CL-505-BK |
| Color | Black | Bronze | Granite | Rust | White |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black, Bronze, Granite, Rust, White |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 2-1/2" |
| Length | 2-1/2" |
| Height | 9.25" |
| Diameter | 2-1/2" |
| LED Life | 50.000 Hrs |
| Wire | 3ft 18-2 SPT1-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$35.15 /each
| SKU(s) | CL-503-BK |
| Color | Black | Green |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | Black & Green |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3" |
| Length | 3" |
| Height | 7-3/4" |
| Diameter | 3" |
| LED Life | 50.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$217.85 /each
| SKU(s) | CL-651-BT-AB-12 |
| Color | Antique Bronze |
| Size | 12" | 18" |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 6-3/4" |
| Length | 6-3/4" |
| Height | 17" / 23" |
| Diameter | 6-3/4" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$235.85 /each
| SKU(s) | CL-654-BT-AB-12 |
| Color | Antique Bronze |
| Size | 12" | 18" |
| Color | Antique Bronze |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7-7/8" |
| Length | 7-7/8" |
| Height | 18" / 24" |
| Diameter | 7-7/8" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
