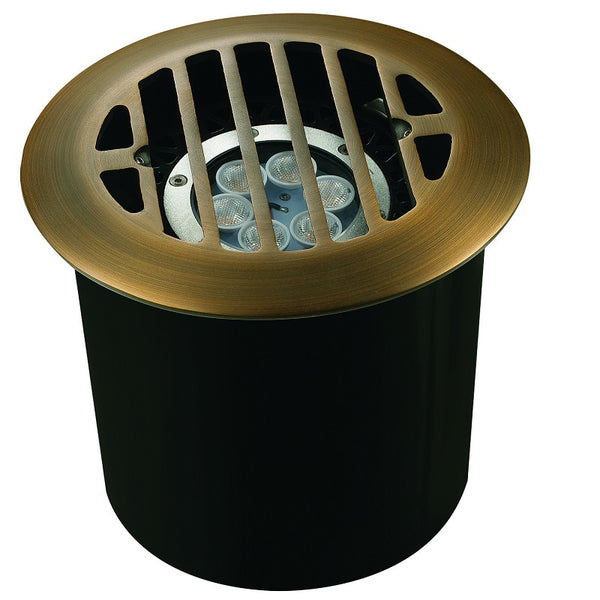

PAR36 Brass Well Light | Flood Light Direct Burial Fixture
| SKU(s) | CL-335-AB |
| Color | Antique Bronze |
| Lamp | No-Lamp | 6W | 13W |
| Color | Antique Bronze |
| Wattage | 6W / 13W |
| Voltage | 12V |
| Lumens | 610LM / 1150LM |
| Color Temp | 2700K & 3000K |
| Width | 6-1/2" |
| Length | 6-1/2" |
| Height | 8" |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
 View Spec Sheet
|
|
|
View Installation Guide
|
Deliver powerful, wide-angle illumination with the PAR36 Brass Flood Well Light in an Antique Bronze finish. Built for architectural-grade landscape lighting applications, this heavy-duty fixture is ideal for uplighting trees, walls, signs, columns, and other large outdoor features.
This well light features a solid brass adjustable housing, offering durability and corrosion resistance for long-term outdoor use. The fixture is suspended inside a reversible PVC sleeve, which includes both flat and angle-cut ends for flexible installation in direct burial or concrete encasement applications.
Compatible with 12V PAR-36 lamps (50W max, not included), the fixture is designed with a 25° adjustable screw-in terminal socket to achieve targeted lighting angles. It is pre-wired with a 5-foot 18-2 SJT-W direct burial cord for easy and secure installation. Optional wire connectors such as the CX-839 universal connector or CX-854 silicone-filled wire nut are available separately.
Operating within a 9–17V range when paired with LED lamps, this fixture requires a remote 12V transformer (sold separately). Please note: No lens is included, allowing maximum light output from the PAR36 lamp.
Backed by a limited lifetime warranty on the fixture housing, this well light offers both performance and peace of mind for residential or commercial landscape lighting designs.
Fixture Type: PAR36 Brass Flood Well Light
Material: Solid Brass with Antique Bronze Finish
Housing: Adjustable fixture with reversible PVC sleeve (flat and angle-cut ends)
Lens: None (open for maximum output)
Socket: Screw-in terminal with 25° tilt adjustment
Lamp Type: 12V PAR-36, 50W max (lamp not included)
Wiring: 5-ft 18-2 SJT-W direct burial cord (connector sold separately)
Mounting: In-ground PVC sleeve for direct burial or concrete encasement
Voltage Range: 9–17V with LED lamp
Transformer Required: Yes, 12V remote transformer
Grade: Architectural
Warranty: Limited Lifetime (on fixture housing)
Wide-area landscape floodlighting
Uplighting large trees, facades, and monuments
Signage and architectural accent lighting
Residential and commercial in-ground lighting
$196.25 /each
| SKU(s) | CL-405-BT-AB |
| Color | Antique Bronze | Gun Metal |
| Color | Antique Bronze & Gun Metal |
| Wattage | 1-6W |
| Voltage | 10-15V |
| Lumens | 15LM - 450LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 5" |
| Length | 2-1/2" |
| Height | 2-3/8" |
| Diameter | 2-1/2" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$187.25 /each
| SKU(s) | CL-212-SS |
| Color | Stainless Steel |
| Lamp | No-Lamp | 3.5W | 5W |
| Color | 316 Marine Stainless Steel |
| Wattage | 3.5W / 5W |
| Voltage | 12V |
| Lumens | 270LM / 470LM |
| Color Temp | 2700K / 3000K |
| Width | 3-7/8" |
| Length | 3-7/8" |
| Height | 10-1/2" |
| Diameter | 3-7/8" |
| LED Life | 50.000 Hrs |
| Wire | 3-ft 18-2 SPT2-W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$235.85 /each
| SKU(s) | CL-654-BT-AB-12 |
| Color | Antique Bronze |
| Size | 12" | 18" |
| Color | Antique Bronze |
| Wattage | 1-5W |
| Voltage | 10-15V |
| Lumens | 35LM-380LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7-7/8" |
| Length | 7-7/8" |
| Height | 18" / 24" |
| Diameter | 7-7/8" |
| Wire | 10 Foot SPT-2W |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
$75.65 /each
| SKU(s) | L-EDBA-3W-BT |
| Color | White |
| Wattage | 0.5W - 3W |
| Voltage | 9V-17V AC & DC |
| Lumens | 10LM - 200LM |
| Color Temp | Selectable CCT |
| CRI | >85 |
| Width | 7/8" |
| Length | 7/8" |
| Height | 1-7/8" |
| Diameter | 7/8" |
| LED Life | 50.000 Hrs |
| Certs |
|
|
View Spec Sheet
|
|
|
View Installation Guide
|
