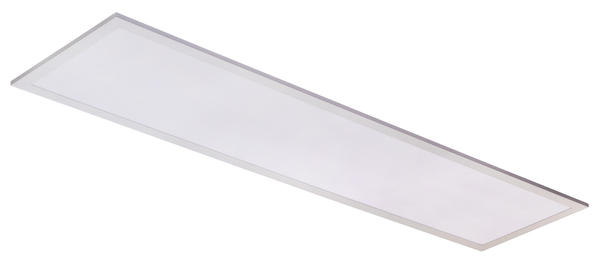

1x4 LED Flat Panel 40W Max | 4.6K Lumens Max | Topaz PL14-40WPCTS-D

The Topaz 1'x4' Power and CCT Selectable LED Flat Panel provides exceptional flexibility and performance for commercial and institutional lighting environments. Designed with three selectable wattages—20W, 30W, and 40W—and three CCT options—3500K, 4000K, and 5000K, this fixture offers nine possible configurations to tailor illumination for any space.

With its low-profile, lightweight design and durable white powder-coated steel frame, this panel is ideal for offices, schools, healthcare facilities, retail, and commercial installations. Precision optics deliver even, glare-free light distribution, while power and CCT selection switches simplify on-site customization during installation.

FEATURES & BENEFITS

• Selectable wattages: 20W / 30W / 40W

• Selectable color temperatures: 3500K / 4000K / 5000K

• Lumen output: 2300 / 3450 / 4600 lumens

• 0–10V dimming for smooth light control

• Up to 25% lighter than traditional fluorescent fixtures

• Low-profile design for shallow ceiling plenums

• White powder-coated steel frame for a clean, modern appearance

• Precision-engineered optics provide smooth, uniform illumination

• Includes 18 AWG leads and 22 AWG dimming wires

• Mounting options: surface, recessed, or suspension kits (sold separately)

• Ideal for: offices, classrooms, healthcare, and retail applications

TECHNICAL DATA

• Input Voltage: 120–277V

• Power Factor: >0.9

• Dimming: 0–10V standard

• Operating Temperature: -20°C to +45°C

• Lifespan: 50,000 hours (L70)

• Mounting Options: Recessed, surface, or suspension (kits sold separately)

• Certifications: UL Listed, DLC Listed, RoHS Compliant

WARRANTY / LISTING

• Five-year limited warranty

• UL Listed for safety and performance

• DLC Listed for energy efficiency compliance
