192W LED Driver 5-IN-1 Dimmable With Junction Box | Ribbon Lighting Series

192W LED Driver 5-in-1 Dimmable with Junction Box | Ribbon Lighting Series – High-Power, Multi-Platform Dimming for Demanding LED Applications

Power your LED lighting system with confidence using the 192W 5-in-1 Dimmable LED Driver with Junction Box from the Ribbon Lighting Series. Engineered for high-performance 24V DC LED installations, this driver delivers reliable, energy-efficient power with robust safety features and broad dimming compatibility.

With support for 5-in-1 dimming—Triac, ELV, 0-10V, 1-10V, and PWM—this versatile LED driver ensures smooth and flicker-free dimming across a wide range of lighting controls, making it ideal for residential, commercial, retail, and architectural lighting applications. Whether you're installing LED strip lights, linear bars, or other 24V fixtures, this driver provides precision and consistency with a powerful 12.5A output current and up to 192W of total output.

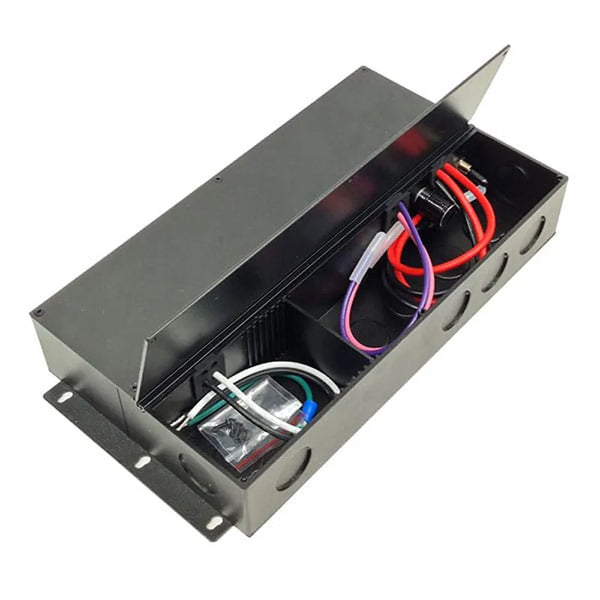

Designed for durability and flexibility, it features a wide input voltage range (100–277V AC) and is optimized for performance with up to 85% efficiency and a high power factor of 0.95. The included junction box allows for clean and compliant installations in a variety of environments.

Built to withstand extreme conditions, the driver operates in temperatures ranging from -22°F to 140°F, and is certified for use in dry, damp, and wet locations, making it suitable for both indoor and outdoor use.

Key Performance Features:

• Input Voltage: 100-277V AC | Output Voltage: 24V DC ± 0.5V

• Max Output Current: 12.5A | Total Output Power: 192W

• Efficiency: Up to 85% @ 220V AC | Power Factor: 0.95

• Input Frequency: 50/60Hz | Input Current: 1.8A @ 110V

• Surge Protection: 20A @120V AC / 25A @277V AC (Cold Start)

• Output Ripple & Noise: ≤600mV

• Leakage Current: <0.75mA

Smart Protection & Durability:

• Short-Circuit Protection: Hiccup Mode with Auto Recovery

• Over-Voltage Protection: Shuts Down at ≥28V Non-Load, Recovers Automatically

• Thermal Performance: Case Temperature up to 194°F

• Vibration Tolerance: 10~500Hz, 1.0mm, 15 min on X, Y, Z axes

• Working Humidity: 20%–90% RH | Storage Humidity: 10%–95% RH

• Storage Temperature: -40°F to 176°F
