| SKU(s) | ULR-IN-HWDR-150W |
| Wattage | Output: 150W |
| Voltage | Output: 24V DC |
| Efficacy | 89% |
| Width | 3.81" |
| Length | 6.25" |
| Height | 1.18" |
| Certs |
|
 View Spec Sheet
|

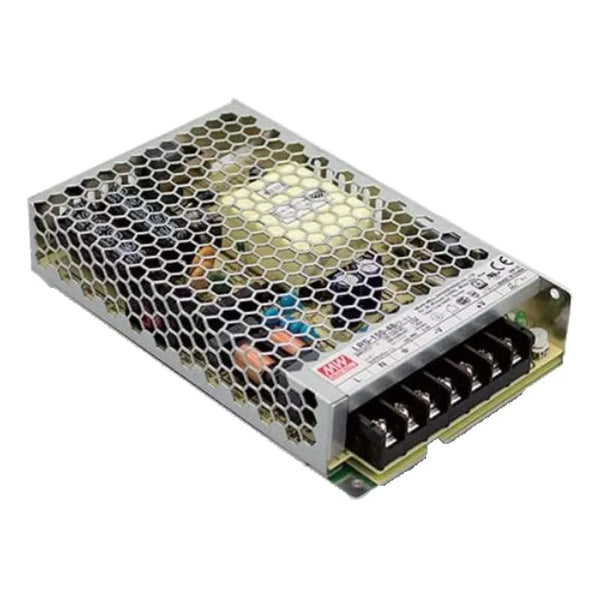

150W LED Indoor Electronic Rope Light Hardwire Driver (Non-Dimmable) – Ribbon Lighting Series | 24V Constant Voltage Power Supply
Power up your LED lighting system with the 150W LED Indoor Hardwire Driver, part of the trusted Ribbon Lighting Series. Delivering a consistent 24V DC output with a maximum current of 6.5 amps, this non-dimmable power supply is engineered for high-efficiency, long-term performance in indoor lighting applications. It's ideal for commercial displays, signage, architectural lighting, and other demanding LED setups that require reliable and protected power delivery.
High-Capacity 150W Output
Supports large-scale lighting installations with a 24V output and 6.5A current for superior power delivery across long LED rope or strip runs.
Efficient & Reliable Performance
Delivers up to 89% energy efficiency, helping reduce energy costs while maintaining consistent brightness with minimal power loss.
Universal AC Input with Selector Switch
Supports a wide input voltage range of 85–264VAC, selectable via an onboard switch to accommodate global power standards at 50/60Hz.
Built-In Safety Protections
Integrated short circuit, overload, over voltage, and over temperature protections safeguard both the driver and connected LEDs.
Silent Cooling with Free Air Convection
Operates without a fan for quiet performance, ideal for residential and commercial indoor settings where noise is a concern.
Visual Power Status Indicator
Includes an LED power-on indicator for quick operational status checks during installation and maintenance.
Engineered for Long-Term Durability
Rigorously tested with 100% full load burn-in and 5G vibration testing to meet industrial-grade reliability requirements.
Output Power: 150W
Output Current: 0–6.5A
Output Voltage: 24V DC
Input Voltage Range: 85–264VAC (manual switch selectable)
Setup Time: 500ms
Rise Time: 30ms (230/115VAC)
Hold-Up Time: 40ms (230VAC), 35ms (115VAC)
Efficiency: 89%
No Load Power Consumption: <0.5W
Leakage Current: <0.75mA at 240VAC
Cooling Method: Free air convection
Operating Temperature: Up to 158°F (70°C)
UL60950-1
TUV EN60950-1
EN60335-1
EN61558-1 / 2-16
CCC GB4943.1
BSMI CNS14336-1
EAC TP TC 004
AS/NZS 60950.1 (CB certified)
EN55032 (CISPR32) Class B
EN55014
EN61000-3-2, -3
GB/T 9254
BSMI compliant
LED rope and strip lighting (non-dimmable)
Commercial retail displays
Indoor signage and backlighting
Architectural cove lighting
Hospitality and under-cabinet lighting
$124.75 /each
| SKU(s) | G-96324 |
| UPC | 024431963246 |
| Color | White |
| Width | 2.46" |
| Length | 0.96" |
| Height | 0.53" |
| Certs | |
|
View Spec Sheet
|
$121.50 /each
| SKU(s) | ULR-IN-16F-HO-RGBW |
| Wattage | 5.8 watts per foot, 95 watts per 16.4 foot roll |
| Voltage | 24V DC |
| Lumens | 225LM per ft |
| Color Temp | RGBW |
| Efficacy | 11.9 lumens per LED |
| CRI | 90 |
| Length | 16.4FT |
| Certs |
|
|
View Spec Sheet
|
$795.00 /each
| SKU(s) | G-48490 |
| UPC | 696304484907 |
| Light c... | 2700k Soft White | 3000k Warm White | 3500k Neutral White | 4100k Cool White | 5000k Super White |
| Color | White |
| Wattage | 5.5 FT / 18W M |
| Voltage | 24V DC |
| Lumens | 548FT/ 1800 M |
| Color Temp | 27, 30, 35, 41, 50K |
| Efficacy | 75 |
| Width | 10 mm |
| Height | 1.8 mm |
| Diameter | 8.65" |
| LED Life | 50.000 Hours |
| Certs |
|
|
View Spec Sheet
|
$195.00 /each
| SKU(s) | G-99525 |
| UPC | 024431995254 |
| Color | White |
| Wattage | 5.2W FT / 17W M |
| Voltage | 24V DC |
| Lumens | 435 Ft / 1425 M |
| Color Temp | Dimmeable 30-18K |
| CRI | 94> |
| Width | 10 mm |
| Length | 14.6Ft |
| Height | 1.8 mm |
| LED Life | 50.000 Hours |
| Certs |
|
|
View Spec Sheet
|
1/2 Inch Channel Aluminum Trimless | Tape Light Channels & Accessories Series | 8Ft
